07-19-B1-729 FLO-GARD 6301 DUAL CHANNEL VOLUMETRIC INFUSION PUMP SERVICE MANUAL 9-5
Calibration Safety Slide Clamp Mechanical Calibration

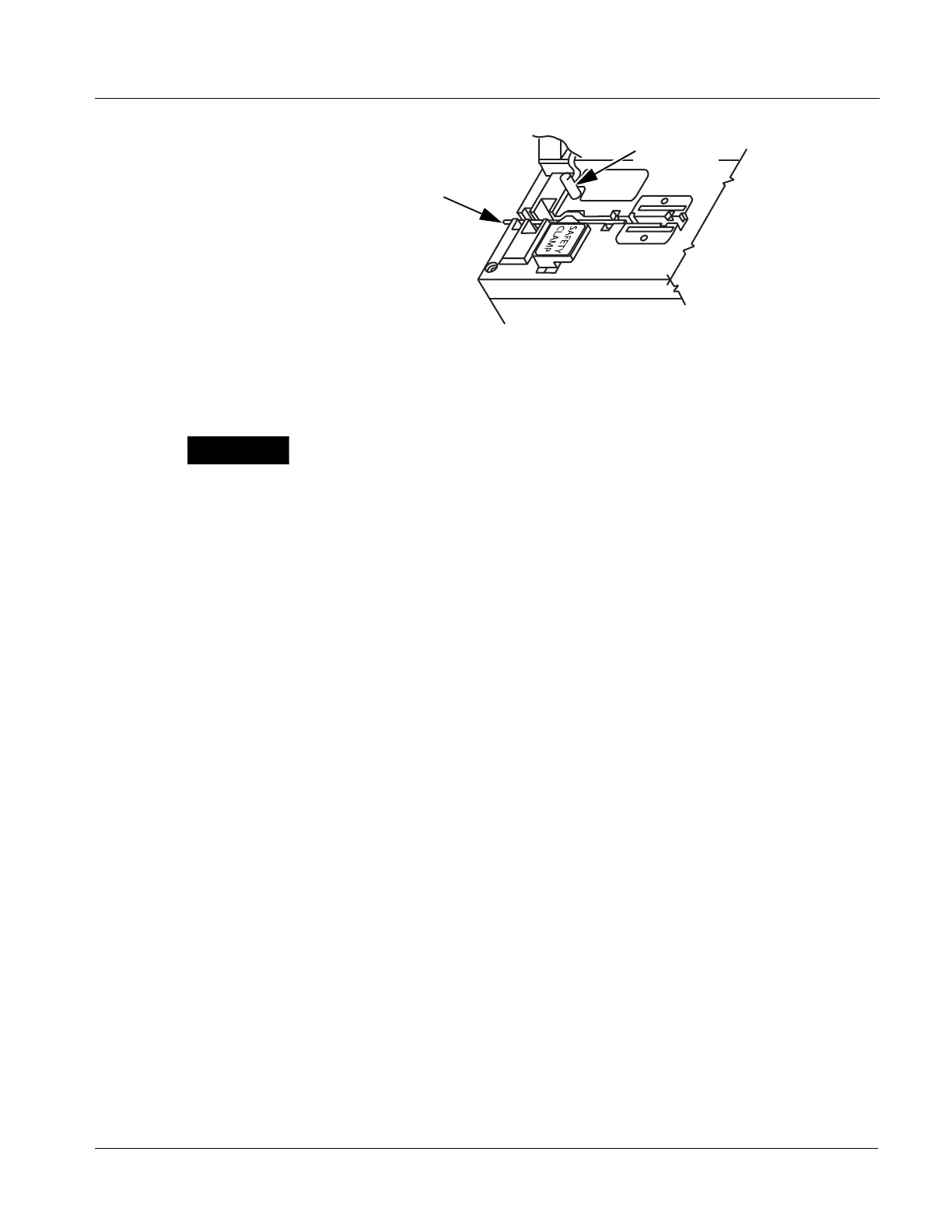

Figure 9-2 Safety Slide Clamp Adjustment
4. Slowly close the safety clamp button by holding it with one hand while
pressing the release pin with the other. Let the safety clamp slowly rest
over the pin gage.
5. Close the pump door. Without touching the pump door, lift the pump
upright about 1 foot above the work surface.
Q If the 0.045 in. (1.15 mm) pin gage falls out of the safety clamp,
proceed to step 6.
Q If the 0.045 in. (1.15 mm) pin gage stays in the safety clamp, proceed
with the following procedure to shim the safety clamp plate:
5.1 Lay the pump on its back.
5.2 Remove the safety clamp plate and screw. See Figure 11-5 ,
items 27 and 15.
5.3 Place one polyester film spacer (part no. S050109) between the
safety clamp plate and the door.
5.4 Install the screw and torque to 6 kgf-cm (5.2 in-lb).
5.5 Retest starting at step 3.
6. Repeat steps 3 through 5 with the 0.063 in. (1.60 mm) pin gage.
Q If the 0.063 in (1.60 mm) pin gage falls out of the safety clamp, the
gap is too large. Proceed to step 7.
Q If the 0.063 in (1.60 mm) pin gage stays in the safety clamp, you are
done with the adjustment.
7. Remove the safety clamp plate and inspect for excess shims or damage.
Q If no excess shims or damage are noticed, replace the safety clamp
plate with a thinner plate (part no. S054643) and retest.
Q If excess shims are installed, remove one and retest.
Do not let the safety clamp snap closed by itself. This could damage the clamp or
the pin gage.
