Chapter 4 Accessories and Options
Nurse Call
The Nurse Call feature requires that a jumper wire be installed to the
terminal printed circuit board (Figure 13-34) at the location labeled R421
(trace only) on the board. When the jumper is connected, the Nurse Call
relay is energized only during an alarm condition and when the ALARM
LED is lit. To connect the pump’s Communications Port to your Nurse Call
system build a cable as shown in Figure 4-1.

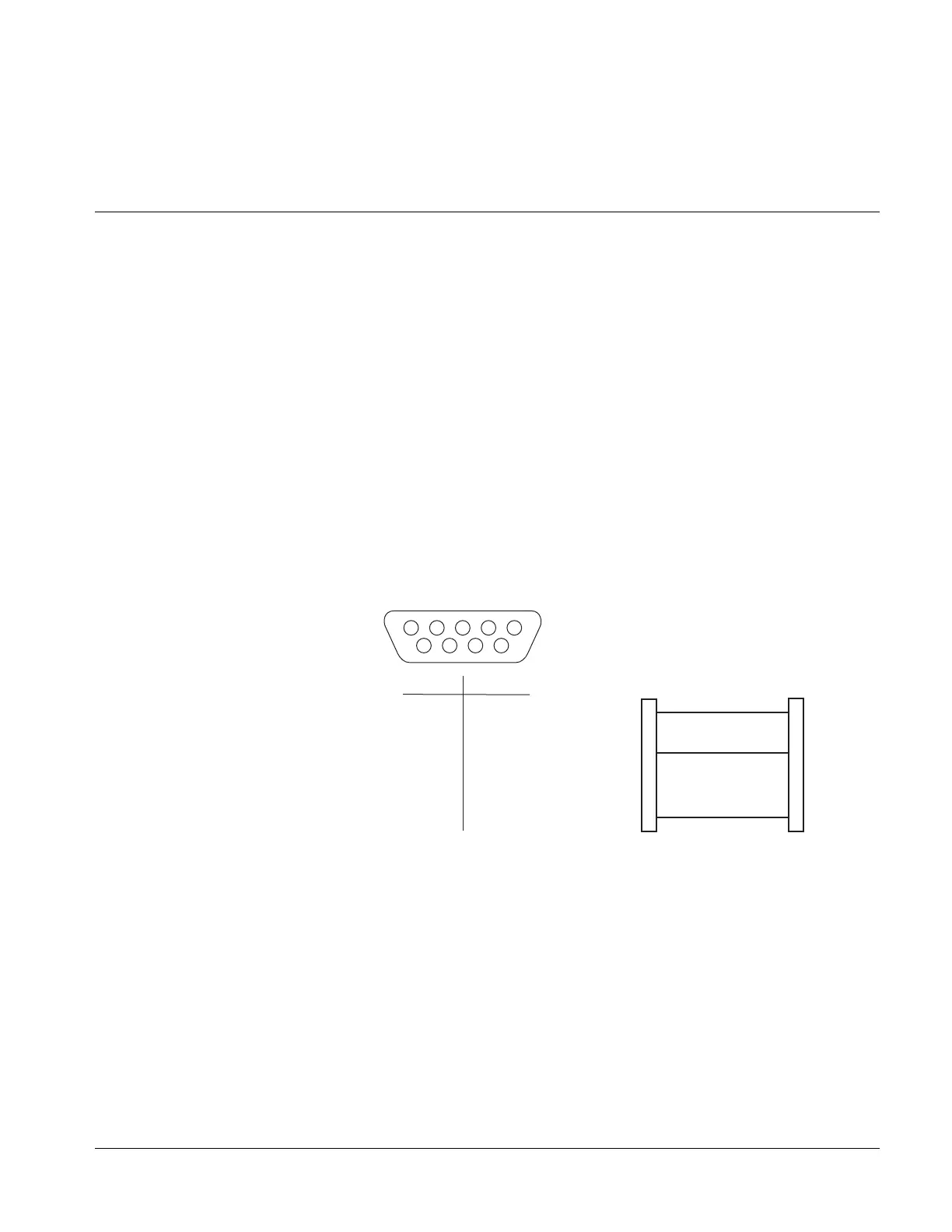

Figure 4-1 Nurse Call Cable Wiring
(PIN SIDE VIEW)
PUMP PIN
1
2
3
4
5
6
7
8
9
SIGNAL
Not Used
RY-NC
RY-NO
Not Used
Not Used
Not Used
32
1
7
6
9-PIN, SUBMINIATURE
D-MALE CONNECTOR
WITH M2.6 METRIC SECURING SCREWS
4
5
9
8
SHIELD Ground
PUMP PINOUT
RY-COM
Not Used
Not Used
1
4
9
RY-NC
RY-NO
RY-COM
Facility Nurse Call
Connector or
Terminal Strip
