07-19-B1-729 FLO-GARD 6301 DUAL CHANNEL VOLUMETRIC INFUSION PUMP SERVICE MANUAL 11-11
Illustrated Parts Breakdown Overview
Note: See “Safety Slide Clamp Mechanical Calibration” on page 9-4.

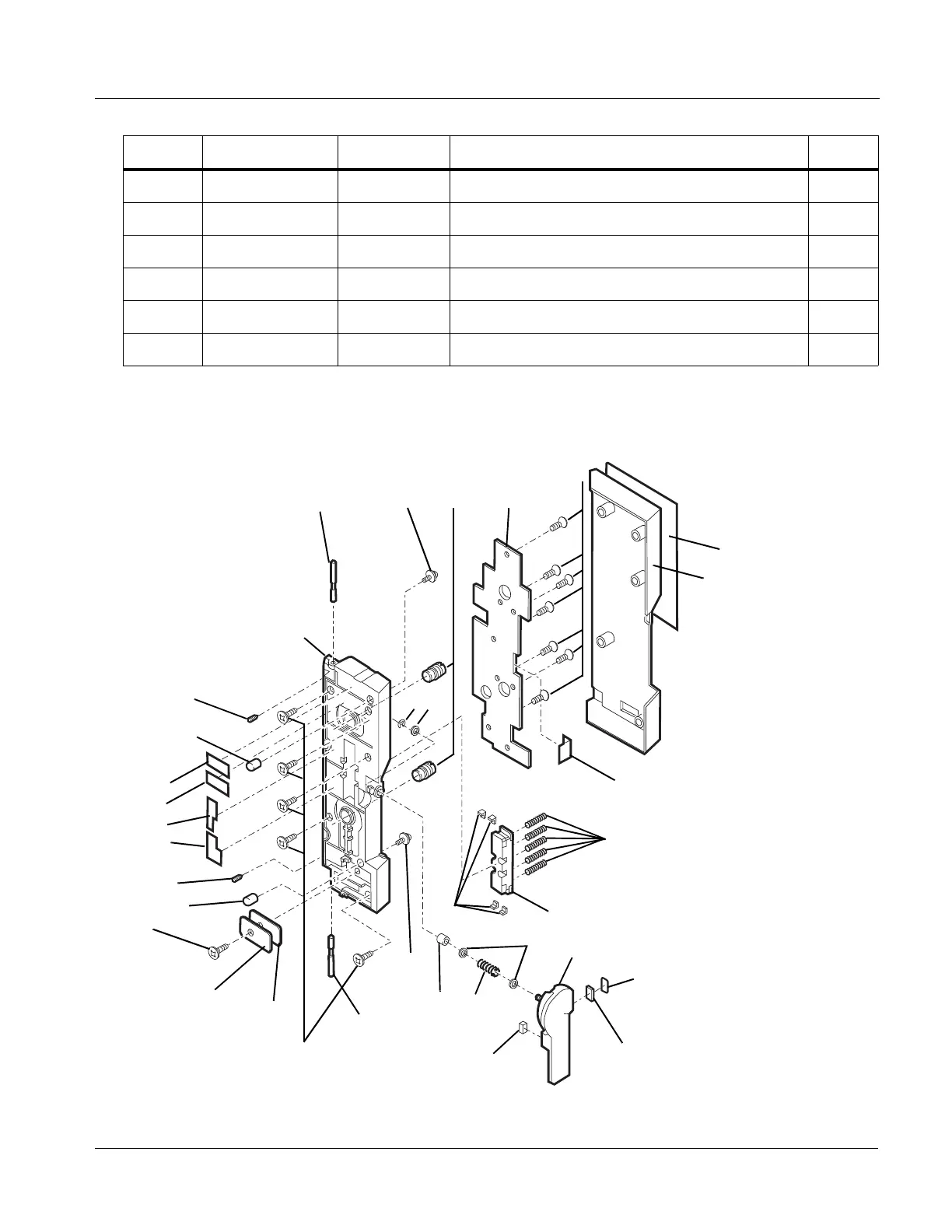

Figure 11-5 Pump Head 1 Door Assembly (F059120016)
29 XXXSP30L.B S048890 SCREW, Set, M3X4 2
30 GCOVA101.D F053624003 Front Cover Pump 1 1
31 S050109 S050109 Safety Clamp Shim (See Note below)
Optional
32 S054643 S054643 PLATE, Safety Clamp, 1.0 mm Thickness (See Note below) Optional
33 072626931 072623931 Inside Door Information Label 2
34 072626932 072623932 Front Door Information Label 2
Table 11-5 Parts List - Pump Head 1 Door Assembly (F059120016) — continued
Item Svc. Part # Mfg. Part # Description Qty
26
16
19
25
14
21
18
17
20
10
4
2,3
9
6
28
14
15 or 32
8
13
5
1, 11
29
12
22
23
24
27
25
30
31
34
7
33
29
12
