Beechcraft Bonanza E33 - Seating, Baggage and Equipment Arrangements

SectionVI
Wt and Bal;Equip List
BEECHCRAFT
Debonair C33
Bonanza E33 and F33

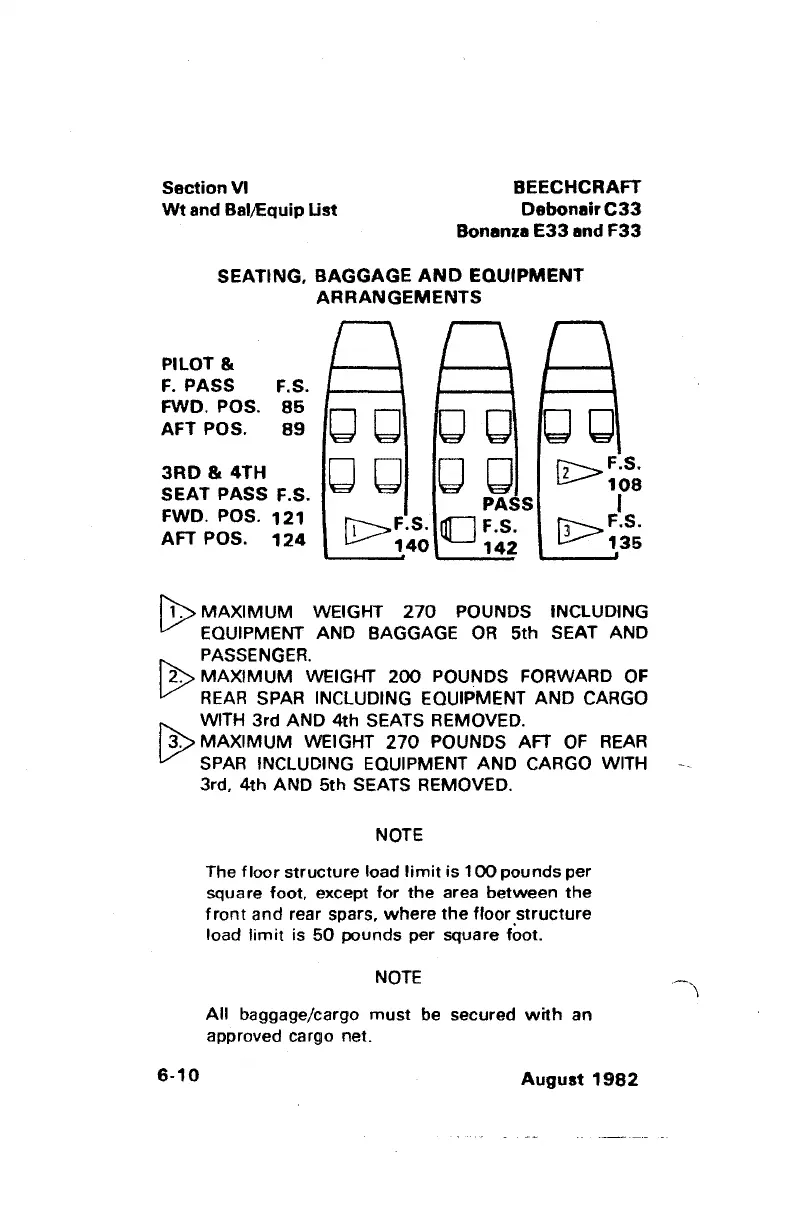

SEATING. BAGGAGE AND EQUIPMENT
ARRANGEMENTS
PILOT &
F. PASS F.S.
FWD. POS. 85
AFT POS. 89
3RD & 4TH
SEAT PASS F.S.
FWD. POS. 121
AFT
POS. 124
Q ~ C:J
QQ
PASS
[I>F.S. 0 F.S.
140 142
.__ _ __.
r.;-_F.S.
~108
1
r;---...F.S.
i:-----135
1'1---.. MAXIMUM WEIGHT 270 POUNDS INCLUDING
V EOUIPMENT AND BAGGAGE OR 5th SEAT AND
PASSENGER.
~ MAXIMUM WEIGHT 200 POUNDS FORWARD OF
V REAR SPAR INCLUDING EOUIPMENT ANO CARGO
WITH 3rd AND 4th SEATS REMOVED.
!)>MAXIMUM WEIGHT 270 POUNDS AFT OF REAR
SPAR INCLUDING EQUIPMENT AND CARGO WITH
3rd, 4th AND 5th SEATS REMOVED.
6-10
NOTE
The floor structure load limit is 100 pounds per
square foot, except for the area between the
front and rear spars, where the floor structure
load limit is 50 pounds per square foot.
NOTE
All baggage/cargo must be secured with an
approved cargo net.
August 1982
