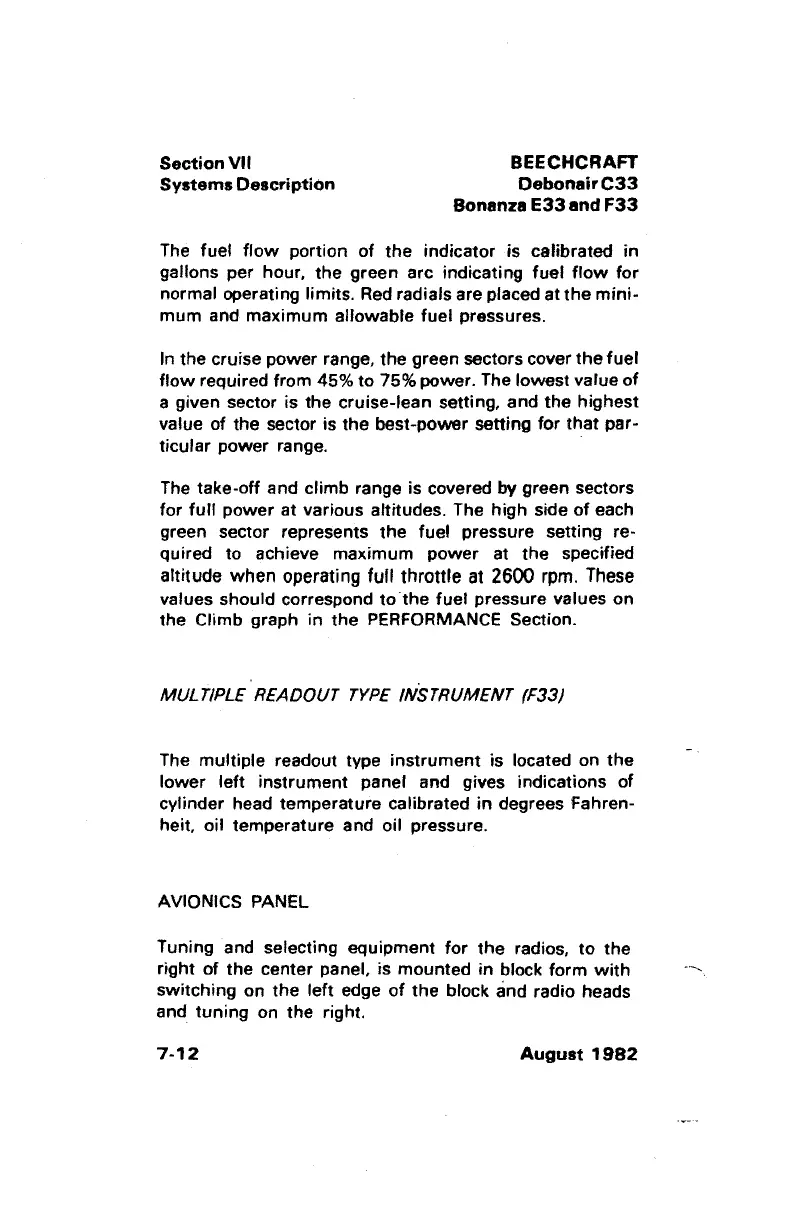

Section
VII
Systems
Description
BEECHCRAFT
Debonair
C33
Bonanza
E33
end
F33
The fuel
flow
portion
of
the
indicator is calibrated
in
gallons per hour.
the
green arc indicating fuel
flow
for
normal operating limits.
Red
radials are placed at
the
mini-
mum
and
maximum
allowable fuel pressures.
In
the cruise power range. the green sectors cover
the
fuel
flow
required from 45%
to
75%
power.
The lowest value
of
a given sector is the cruise-lean setting, and
the
highest
value of the sector is
the
best-power setting for
that
par-
ticular
power range.
The take-off and
climb range is covered by green sectors
for
full
power
at various altitudes. The high side
of
each
green sector represents
the
fuel pressure setting re-
quired
to achieve maximum
power
at
the
specified
altitude
when
operating
full
throttle at
2600
rpm.
These
values should correspond
to
the
fuel
pressure values on
the Climb graph in
the
PERFORMANCE Section.
MULTIPLE READOUT
TYPE
INSTRUMENT (F33}
The
multiple readout type
instrument
is located on
the
lower
left
instrument
panel and gives indications
of
cylinder head temperature calibrated
in
degrees 'Fahren-
heit,
oil temperature and oil pressure.
AVIONICS PANEL
Tuning and selecting equipment for
the
radios,
to
the
right of the center panel, is mounted in block form
with
switching
on
the
left edge
of
the
block and radio heads
and
tuning
on
the
right.
7-12
August
1982
