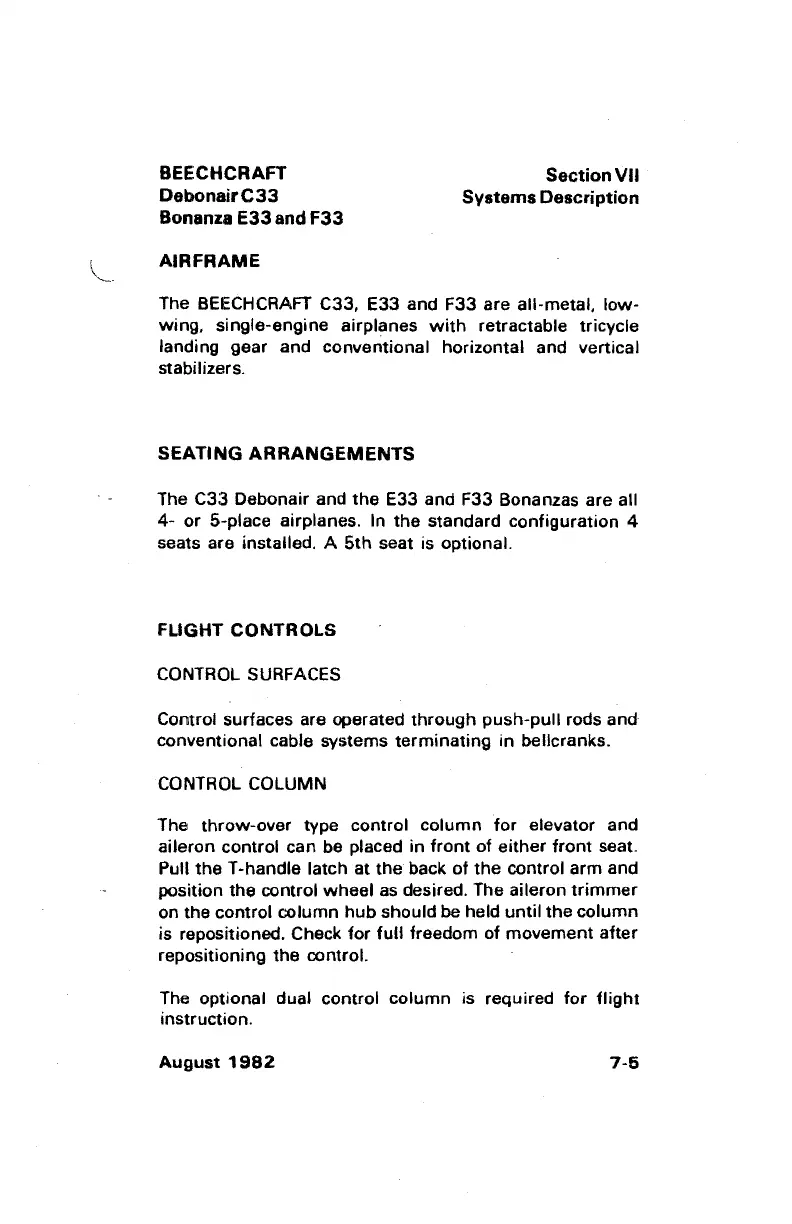

BEECHCRAFT
DebonairC33
Bonanza E33 and f33
AIRfRAME
SectionVU
Systems Description
The BEECHCRAFT C33, E33 and F33 are all-meta!, low-
wing, single-engine airplanes with retractable tricycle
landing
gear and conventional horizontal and vertical
stabilizers.
SEATING ARRANGEMENTS
The C33 Debonair and the E33 and F33 Bonanzas are all
4- or 5-place airplanes. In the standard configuration 4
seats are
installed. A 5th seat is optional.
FLIGHT CONTROLS
CONTROL SURFACES
Control surtaces are operated through push-pull rods and
conventional
cable systems terminating in bellcranks.
CONTROL COLUMN
The throw-over type control column for elevator and
aileron control can be placed in
front of either front seat.
Pull the T-handle latch at the back of the control arm and
position the
control wheel as desired. The aileron trimmer
on the control c:olumn hub should be held until the column
is repositioned. Check for full freedom of movement after
repositioning the
control.
The optional dual control column is required for flight
instruction.
August 1982
7-5
