Beechcraft Bonanza E33 - Ground Turning Clearance

Section 1
General
BEECHCRAFT
Debonair C33
Bonanza E33 and F33

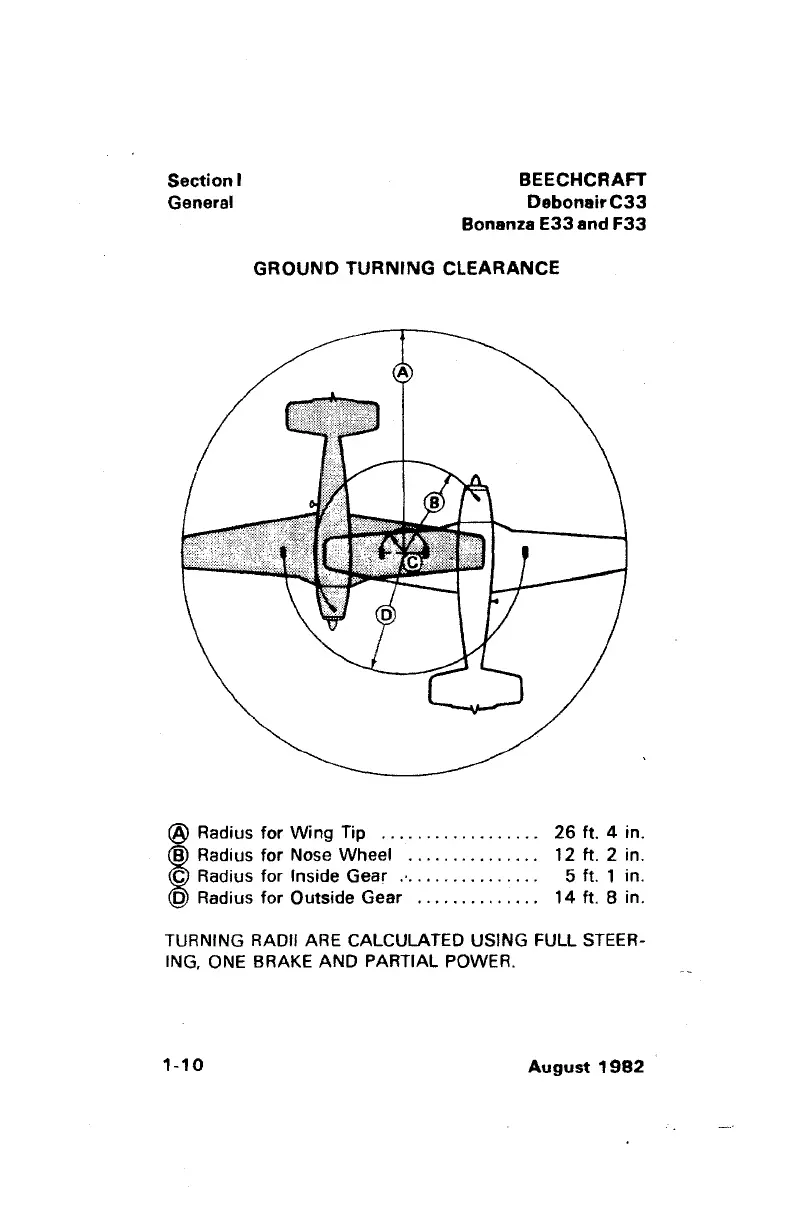

GROUNID TURNING ClEARANCE
@ Radius for Wing Tip ................. .
26 ft. 4 in.
12 ft. 2 in.
5
ft. 1 in.
14 ft. 8 in.
1
Radius for Nose Wheel .............. .
Radius for Inside Gear "· ............. .
Radius for
Outside Gear ............. .
TURNING RADI! Af~E CALCULATED USING FULL STEER-
ING, ONE BRAKE AND PARTIAL POWER.
1-10
August 1982
