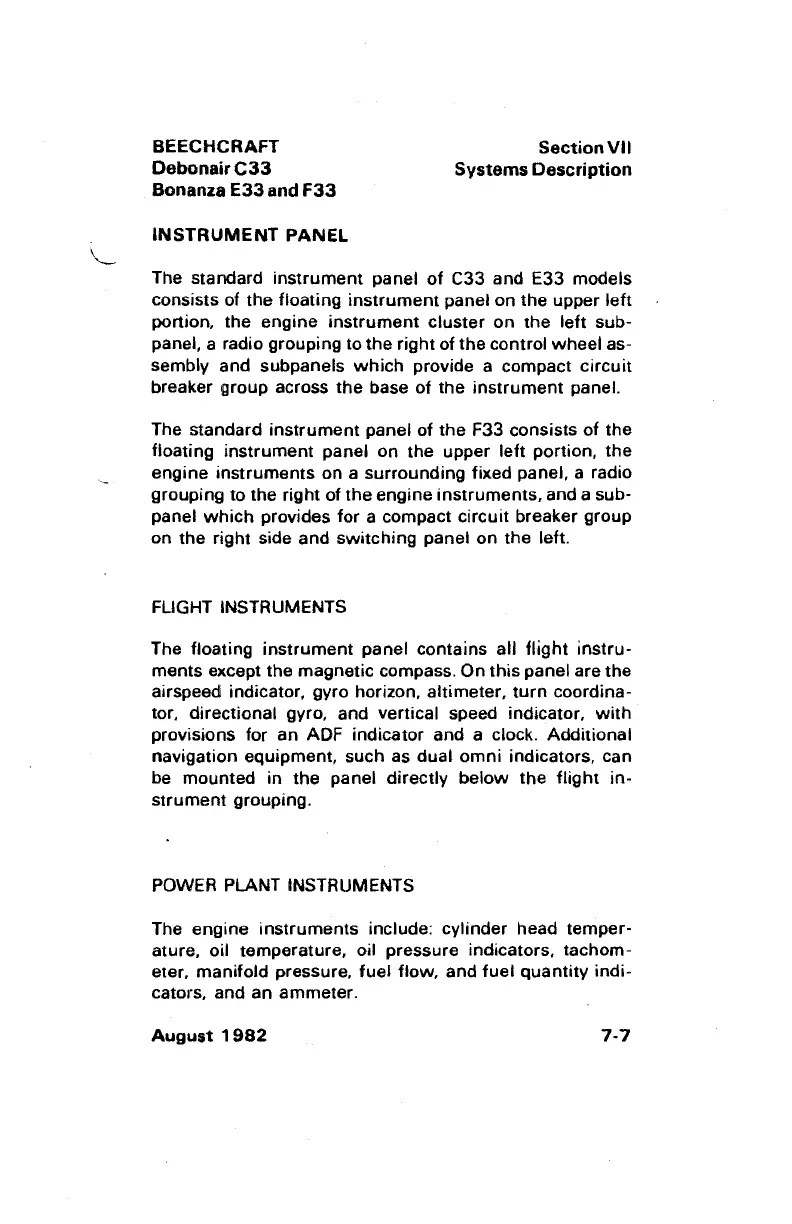

BEECHCRAFT
Debonair
C33
Bonanza
E33
and
F33
INSTRUMENT
PANEL
SectionVll
Systems
Description
The standard
instrument
panel
of
C33 and E33 models
consists of the floating
instrument
panel
on
the upper
left
portion, the
engine
instrument
Cluster
on
the
left
sub-
panel, a radio grouping to
the
right
of the control
wheel
as-
sembly and
subpanels
which
provide a compact
circuit
breaker group across
the
base
of
the
instrument
panel.
The
Standard
instrument
panel
of
the
F33 consists
of
the
fioating
instrument
panel
on
the upper
left
portion,
the
engine
instruments
on
a
surrounding
fix.ad panel, a radio
grouping to the right of
the
engine
instruments,
and a sub-
panel
which
provides
for
a compact
circuit
breaker group
on
the
right side and
switching
panel
on
the left.
FLIGHT INSTRUMENTS
The floating
instrument
panel contains all
flight
instru-
ments except the magnetic compass.
On
this
panel are
the
airspeed indicator, gyro horizon, altimeter,
turn
coordina-
tor, directional gyro, and vertical speed indicator,
with
provisions for an AOF indicator and a clock.
Additional
navigation equipment, such as
dual
omni
indicators, can
be mounted in the panel
directly
below
the
flight
in-
strument
grouping.
POWER PLANT INSTRUMENTS
The
engine
instruments
include: cylinder head temper-
ature,
oil
temperature, oil pressure indicators,
tachom-
eter.
manifold
pressure,
fuel
flow, and
fuel
quantity
indi-
cators, and an ammeter.
August
1982
7.7
