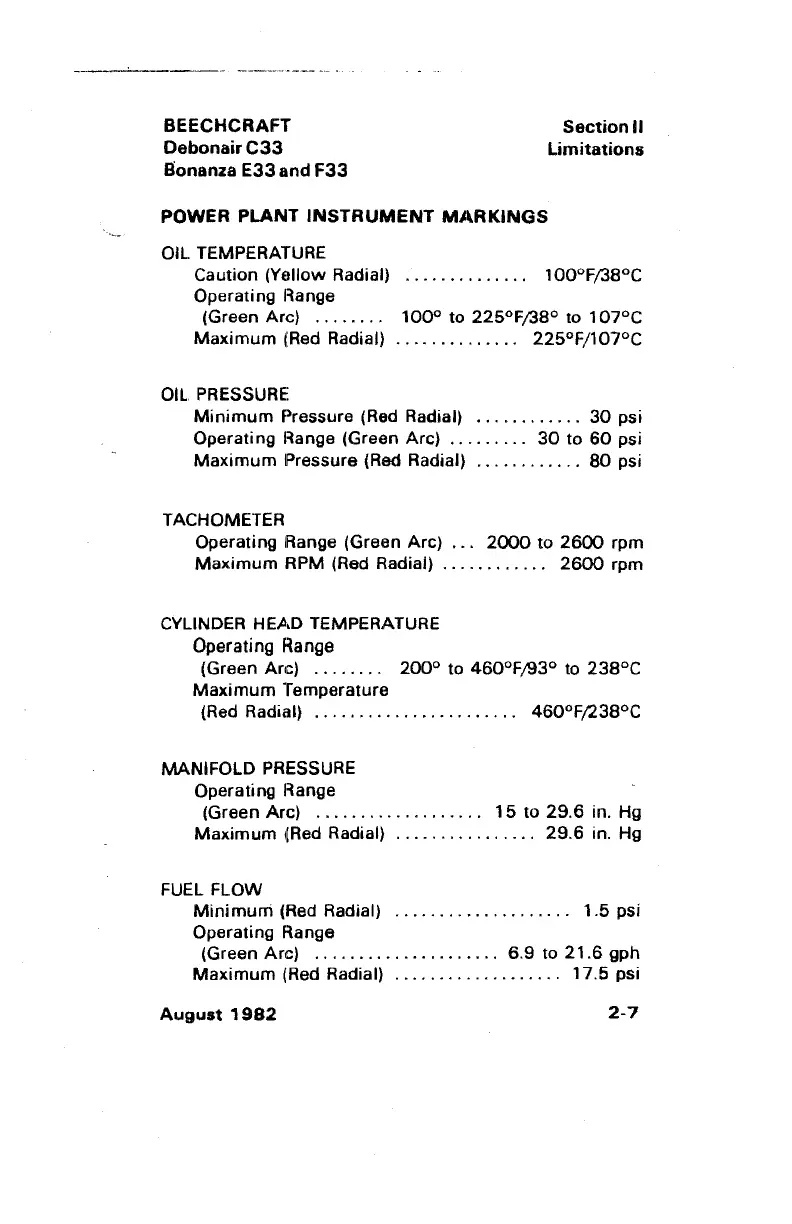

POWER PLANT INSTRUMENT MARKINGS
OIL TEMPERATURE
Caution (Yellow Radial) . . . . . • . . . . . . . . 100°F/38°C
Operating Range
(Green Are) . . . . . . . .
1000 to 225°F/38° to 107°C
Maximum (Red Radial) .••...•...•... 225°Ff107°C
Oll.
PRESSURE
Minimum Pressure (Red Radial) •....•...... 30 psi
Operating Range (Green Are)
......... 30 to 60 psi
Maximum Pressure
(Red Radial) ...•..•.••.. 80 psi
TACHOMETER
Operating Range (Green Are)
• . . 2000 to 2600 rpm
Maximum RPM
(Red Radial) . . . . . . . . . . . . 2600 rpm
CYLINDER HEAD TEMPERATURE
Operating Range
(Green Are) . . . . . . . . 200° to 460°F,193° to 238°C
Maximum Temperature
(Red Radial) . . . . . . . . . . . . . . . . . . • . . . . 460°Fj238°C
MANIFOLD
PRESSURE
Operating Range
(Green Are)
... „ „ .......... „ 15 to 29.6 in. Hg
Maximum (Red Radial) . . . . . . . . . . . . . . . . 29.6 in. Hg
FUEL FLOW
Minimum (Red Radial) „ ..... „ ... „ .... „ 1.5 psi
Operating Range
(Green Are) . . . . . . . . . . . .
• . . . . • . . . 6.9 to 21.6 gph
Maximum
(Red Radial) . „ „ .. „ ..... „ „. 17.5 psi
