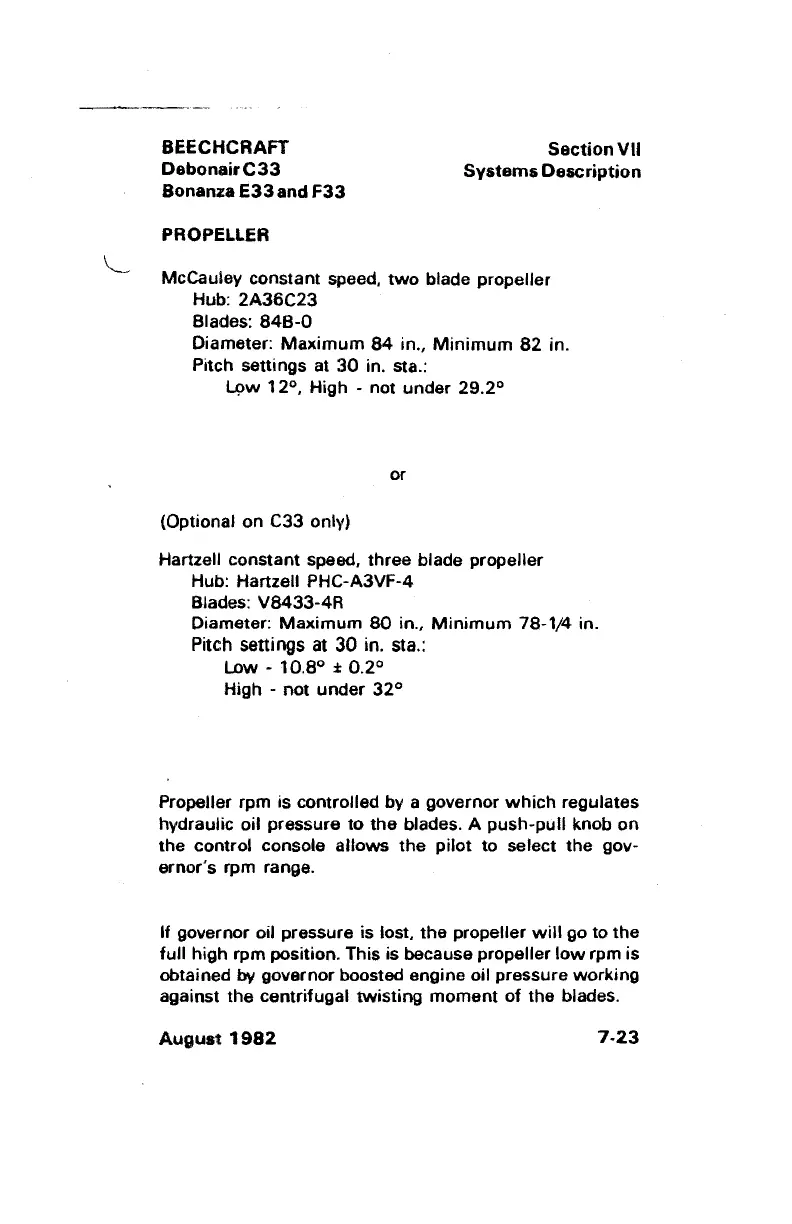

BEECHCRAFT
DebonairC33
Bonanza
E33and
F33
SectionVll
Systems
Description
PROPELLER
McCauley
constant speed.
two
blade propeller
Hub:
2A36C23
Blades:
848-0
Diameter:
Maximum
84
in.,
Minimum
82
in.
Pitch settings at
:io
in. sta.:
l!>w 12°, High - not under 29.2°
or
(Optional on C33 only)
Hartzell
constant speed, three blade propeller
Hub: Hartzell PHC-AJVF-4
Blades: V8433-4R
Diameter:
Maximum
80
in.,
Minimum
78-1/4 in.
Pitch settings
at
30 in.
sta.:
Low - 10.8°
:i:
0.2°
High - not under
32°
Propeller rpm is controlled by a governor
which
regulates
hydraulic
oil pressure to
the
blades. A push-pull knob
on
the control console allows
the
pilot
to select the gov-
ernor's rpm range.
lf
governor oil pressure is lost, the propeller
will
go to the
full high rpm position. This is because propeller
low
rpm is
obtained
by
governor boosted engine oil pressure working
against the centrifugal
twisting
moment of the blades.
August
1982
7-23
