Embroidering preparation
112
2019-02 EN 5020079.00A.04

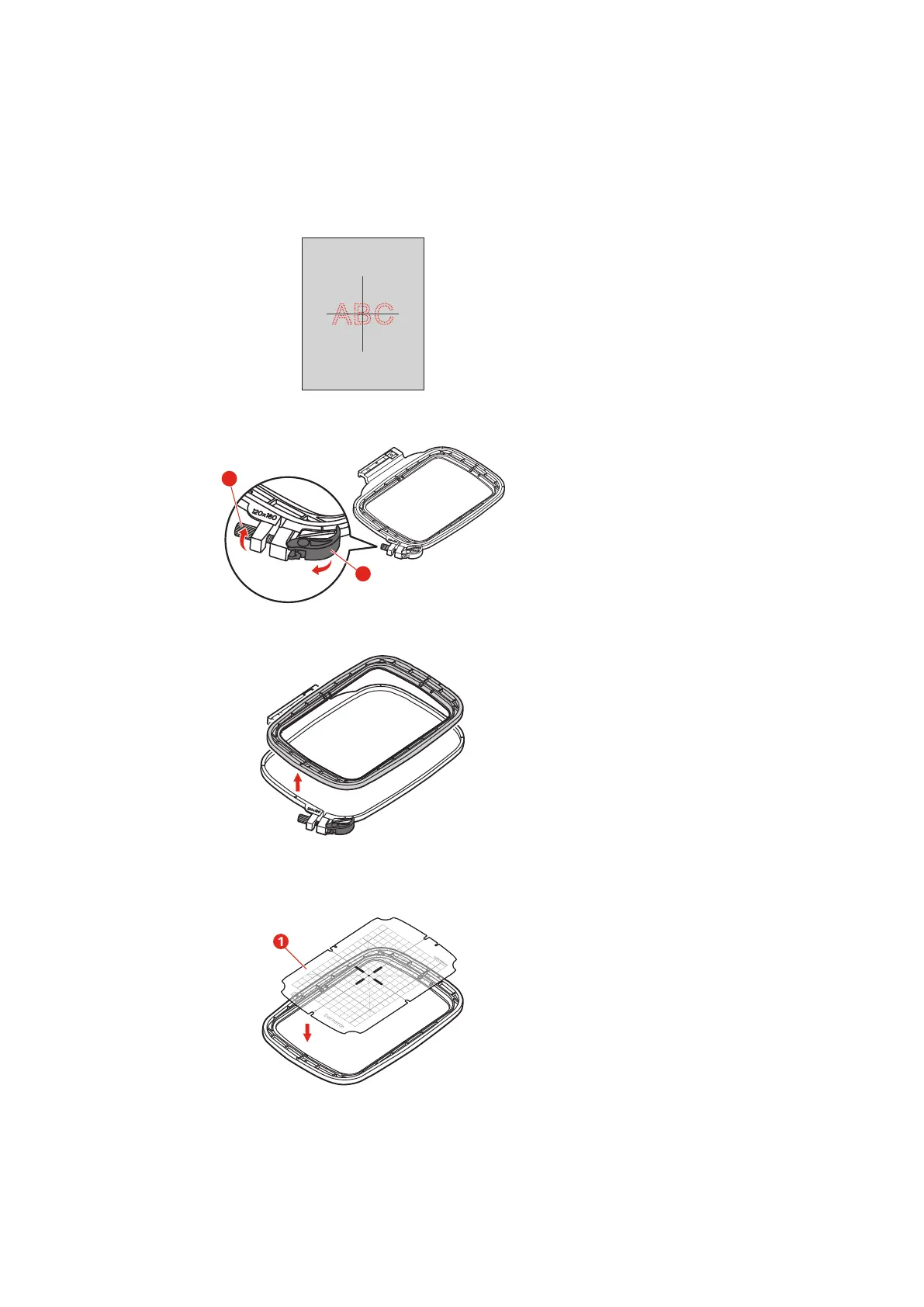

Preparing the embroidery hoop
The embroidery hoop consists of an outer and an inner hoop. There is an embroidery template for each
hoop. The area to be embroidered is marked in 1 cm (0,39 in) squares. The center is marked with hole and
cross lines. The required marks can be transferred to the material.
> Loosen the screw (1) or open the quick release device (2) on the outer hoop.
– If a new type of fabric is used, the pressure must be adjusted by turning the screw.
> Remove the inner hoop.
> Place the template (1) in the inner hoop, so the bernette logo is at the front edge, and make sure the cut
outs click into place.
> Place fabric under the inner frame so that it is at least 2 cm above the hoop.
> Line up the marked center point on the center of the template.
