Sewing preparation
27
2019-02 EN 5020079.00A.04

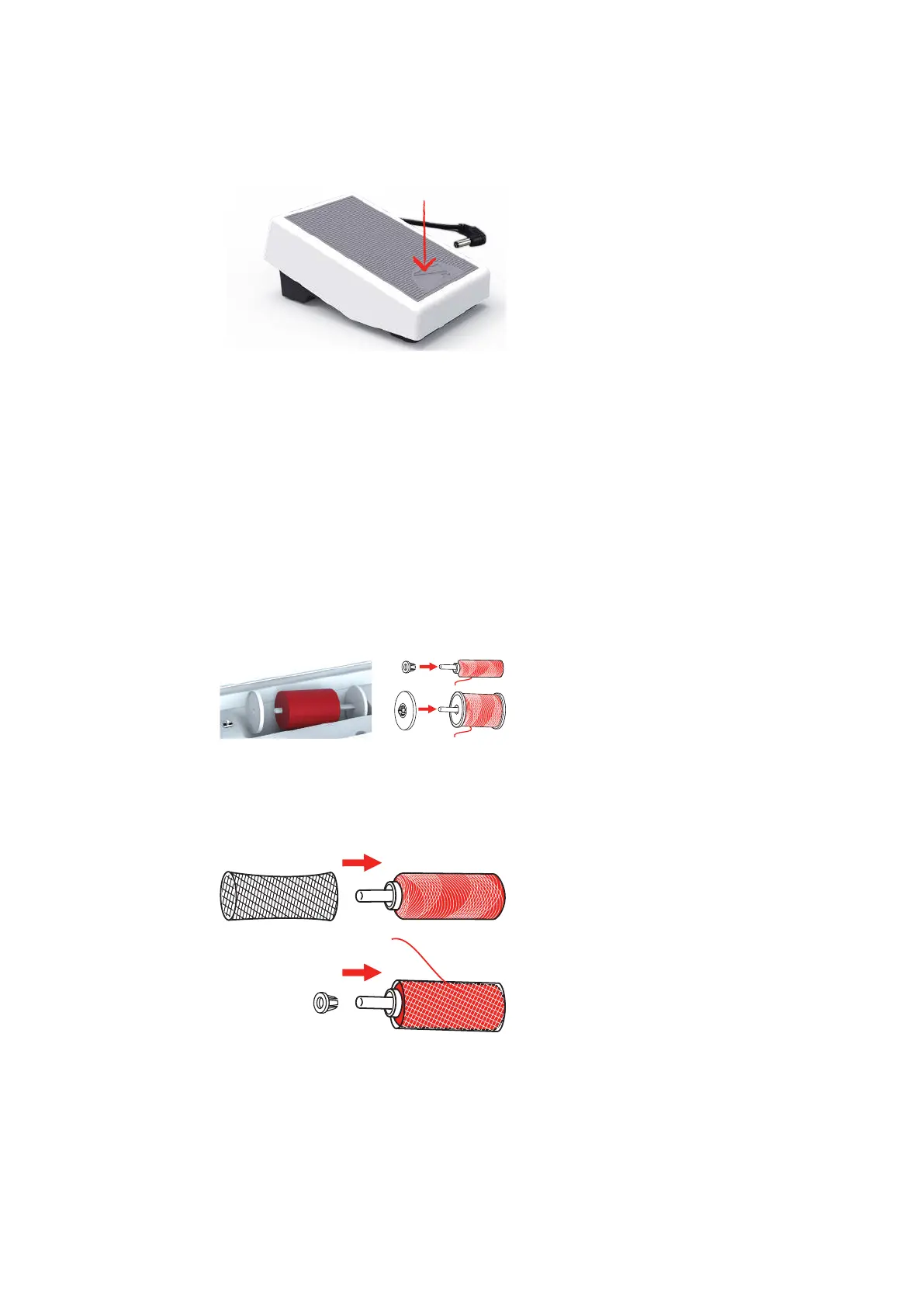

Raising/Lowering the needle
> Sink the heel back on the foot control to raise/lower the needle.
Programming the foot control individually
The foot control can be programmed individually.
2.2 Spool pin
Horizontal spool pin
Placing the thread spool and the thread disc
Spool discs hold the thread spool in place for proper release of thread from the spool. The thread disc is only
used with the horizontal spool holder.
> Place the thread spool on the spool holder.
> Position the appropriate spool disc on the spool holder so that there is no space between the spool disc
and the thread spool.
Using a spool net
The spool net provides an even unwinding of the thread from the thread spool and prevents the thread from
knotting and breaking. The spool net is only used with the horizontal spool holder.
> Pull the spool net over the thread spool.
