Sewing preparation
29
2019-02 EN 5020079.00A.04

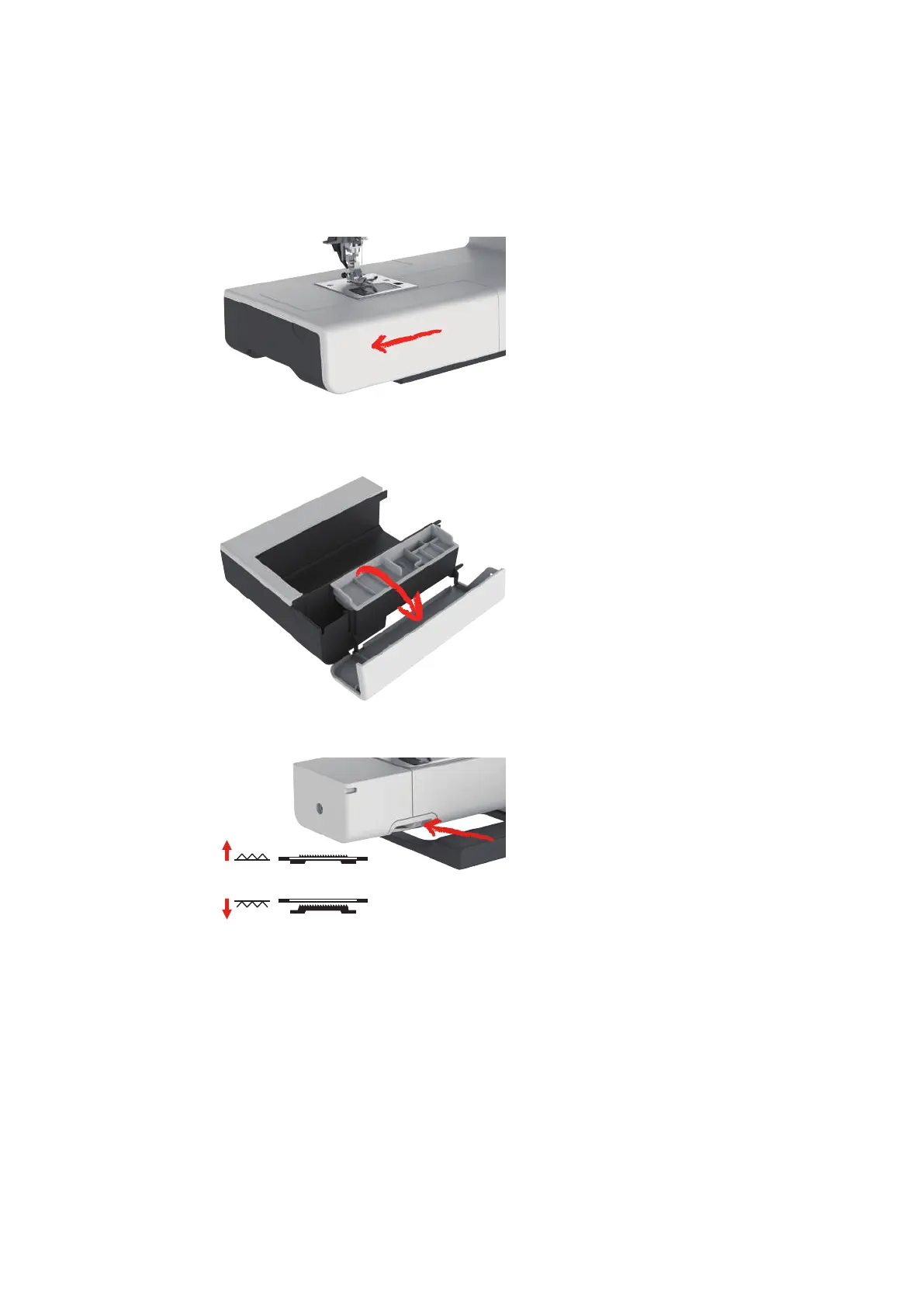

2.4 Sewing table and accessory box
The sewing table is used as an accessory box.
> To remove the sewing table, hold the sewing table by the handle on the left and pull in the direction of
the arrow.
> To open the accessory box, tilt the cover towards you.
> To close the accessory box, tilt the cover backwards until it clicks into place.
2.5 Raising or Lowering the Feed dog
> Slide the «Feed dog lever» right to raise the feed dog.
– The feed dog is raised when the first stitch is sewn.
> Slide the Feed dog lever left to lower the feed dog.
– The feed dog is lowered.
2.6 Using the slide-on table
When attached to the free arm, it expands the already existing sewing area.
> Raise the needle.
> Raise the presser foot.
> Switch the machine off and disconnect it from the power supply system.
