Bernette b79 - Attaching the Hoop

Embroidering preparation
113
2019-02 EN 5020079.00A.04

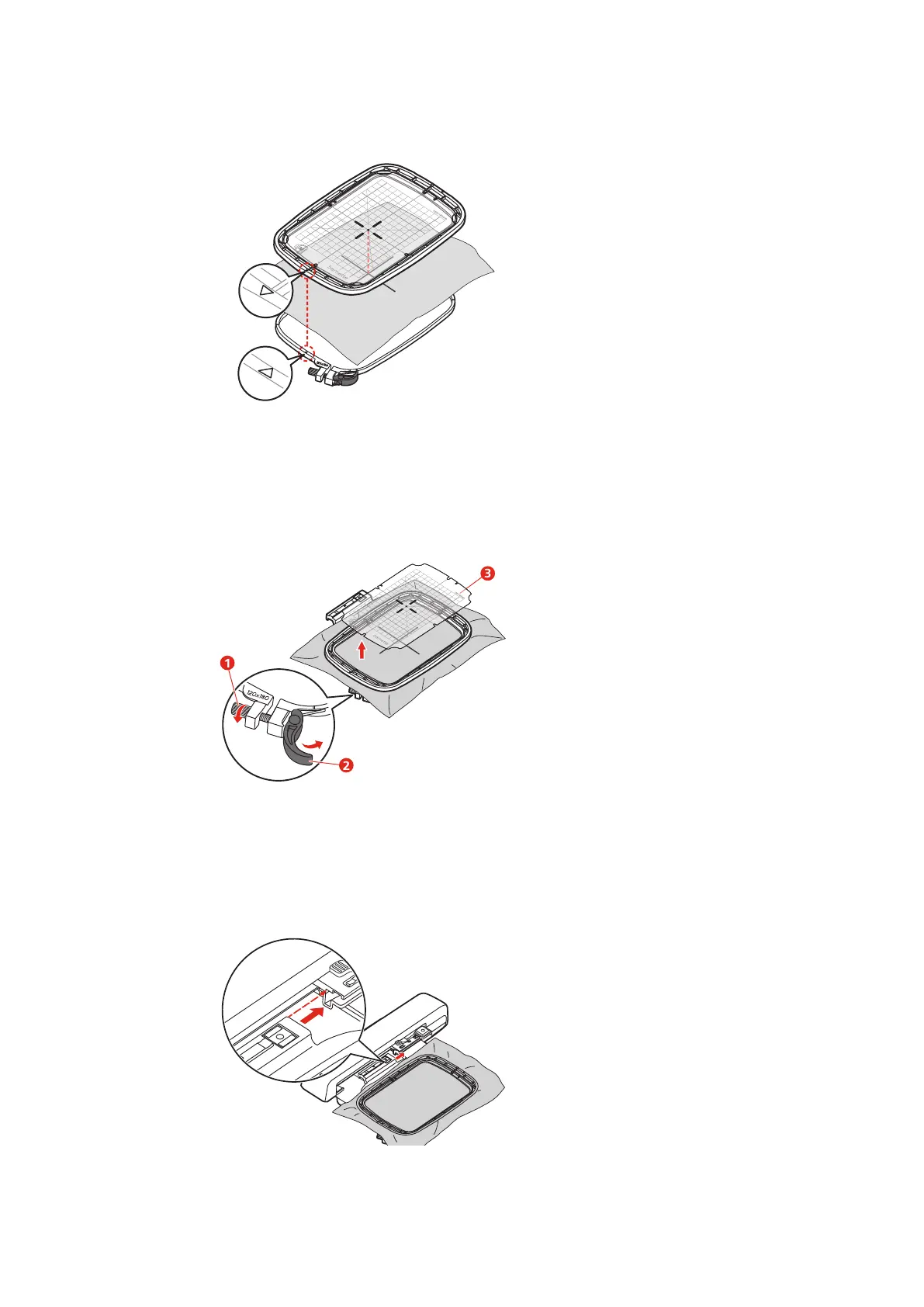

> Place the material and the inner hoop on the outer hoop so that the arrows of both hoops match.
> Fit the hoops into each other; ensure that the material does not move.
> Hoop the fabric to be embroidered tightly.
> Close the quick release device (2). If necessary, tighten screw (1).
> The inner hoop should protrude about 1 mm on the underside, this prevents the hoop from sticking to
the stitch plate.
> The quick release device (2) is for changing the same type (thickness) fabric easily and quickly.
> Remove the template (3) from the hoop.
1
3
2
Attaching the hoop
> Raise the needle.
> Raise the embroidery foot.
> Position the embroidery hoop under the embroidery foot.
> Push the embroidery hoop into the embroidery module until it clicks into place.
– The hoop is attached.
