Sewing preparation
32
2019-02 EN 5020079.00A.04

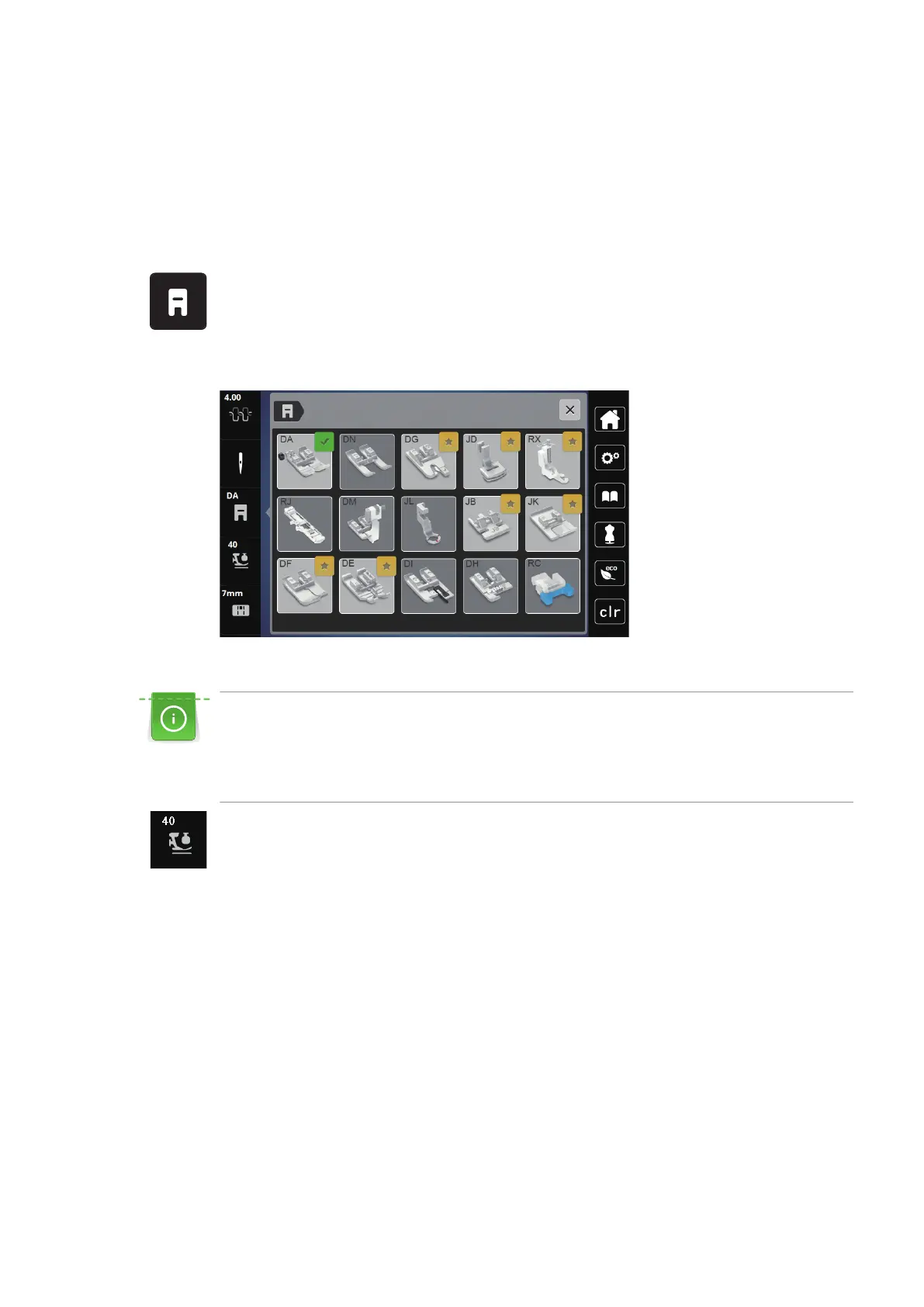

Having the presser foot sole displayed in the user interface
The recommended presser foot sole for the selected stitch is displayed. Moreover, other optimal presser foot
soles can be displayed.
> Switch the machine on.
> Select a stitch pattern.
– In the icon «Presser foot sole display» the recommended presser foot sole is indicated with a letter.
> Touch the icon «Presser foot sole display».
– Any presser foot soles are displayed.
– A green tick indicates the recommended presser foot sole.
– A yellow star indicates the presser foot soles which can also be used for this stitch for special
purposes.
Adjusting the presser foot pressure
The presser foot pressure is designed to adjust the pressure of the presser foot optimally to the fabric
thickness. When working with thick fabrics, it is recommended to reduce the presser foot pressure. This
provides the advantage that the presser foot is slightly lifted so that the fabric can be moved more easily.
When working with thin fabrics, it is recommended to increase the presser foot pressure. This provides
the advantage that the fabric cannot be moved too easily under the presser foot.
> Touch the icon «Presser foot pressure».
> Move the slide with the touchscreen pen/finger to adjust the presser foot pressure.
2.8 Needle and stitch plate
Changing the needle
> Raise the needle.
> Switch the machine off and disconnect it from the power supply system.
> Loosen the needle clamp screw (1) using the gray screwdriver.
> Remove the presser foot.
> Pull the needle down.
> Hold the new needle (2) with the flat side to the back.
> Insert the needle as far up as it will go (3).
