Chapter 15 Technical Drawings
Mini-Switch LB 471
128

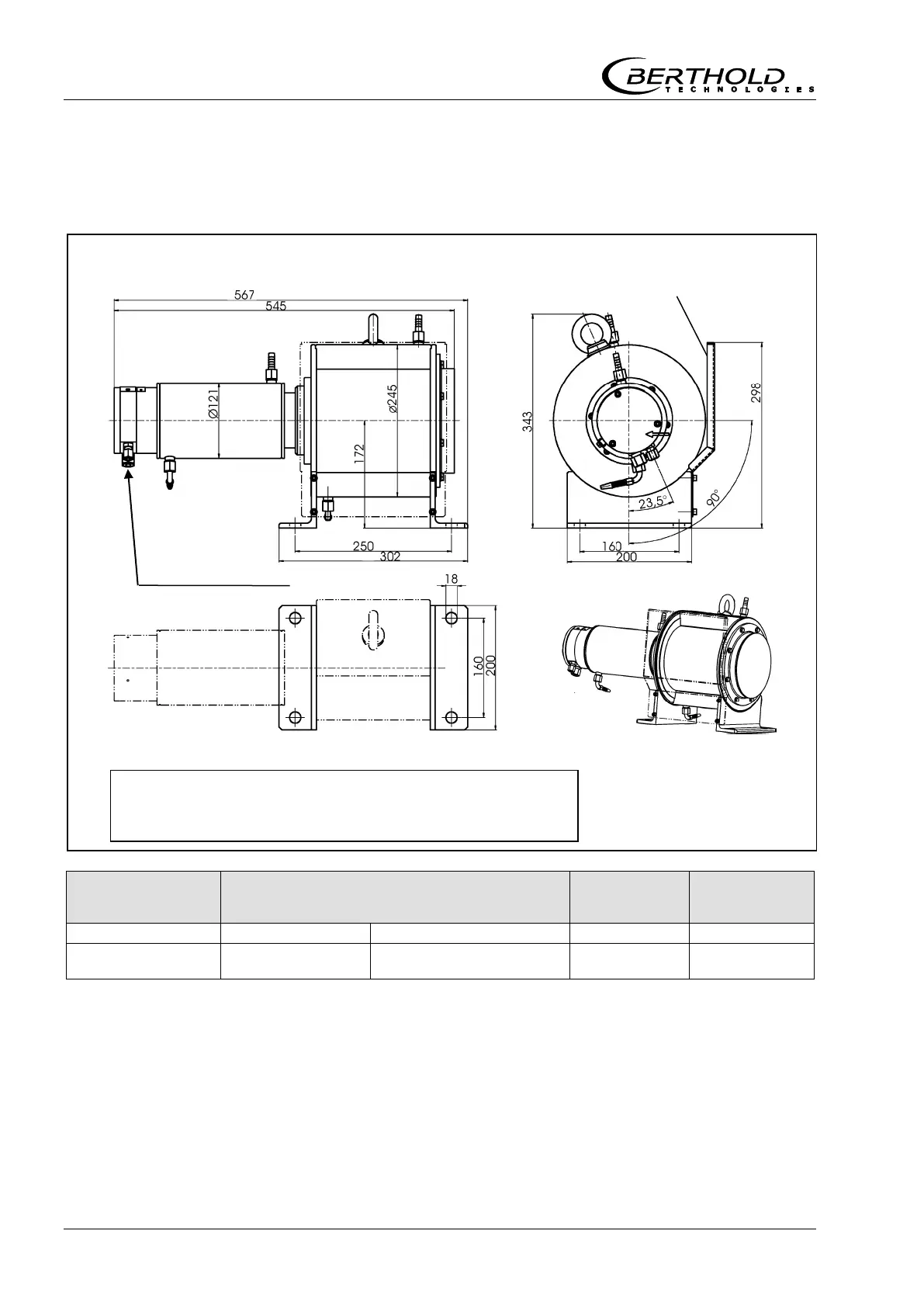

Super Sens with lateral irradiation 90° with water cooling
Type
ATEX
Irradiation
Weight
in kg approx.
LB 4431-14-0s-Gd-E
Gas Ex
II 2 G EEx de IIC T6
90°
74
LB 4431-14-0s-Gi-E
Gas Ex
intrinsically safe
II 2 G EEx ib d IIC T6
90°
74
Thermal shield
Connection seal for water cooling: Ø 10mm (R1/4“)
Specifications in mm
M16 for cable 5 … 10 mm
M16 for cable 5 … 10 mm
