15.6.2 Wall Housing

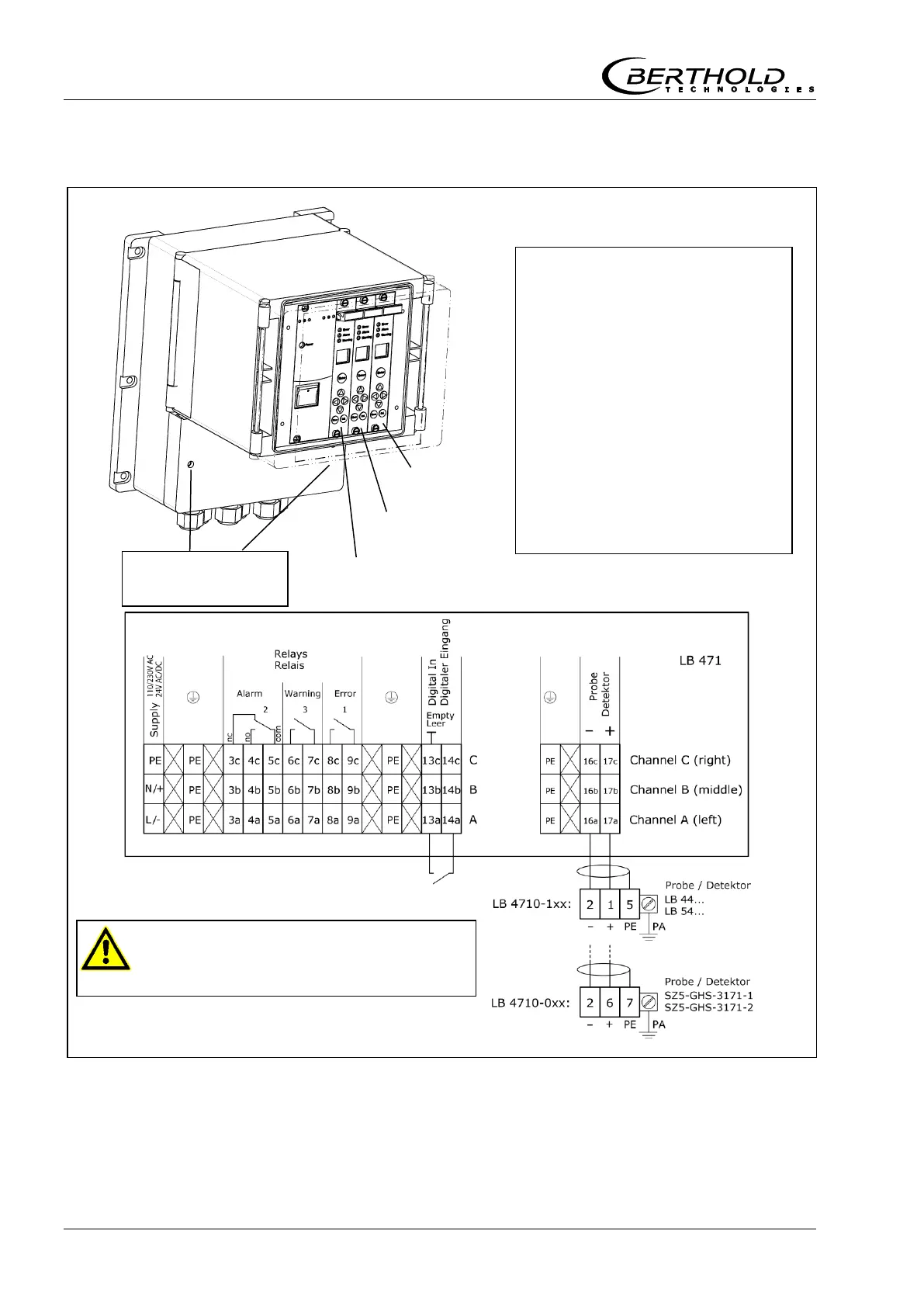

Figure 55: Connection diagram wall housing
Connect wires:
1
Insert suitable screw-driver
into the square hole next to
the terminal. This will open
the terminal and you can in-
sert the wires.
2
Pull the screw-driver out
again. The wire is now
jammed in the spring-finger
connector.
Open cover for
installation
Channel B
Kanal B
Channel C
Kanal C
For intrinsically safe installation use
connector sleeves.
Channel A
Kanal A
