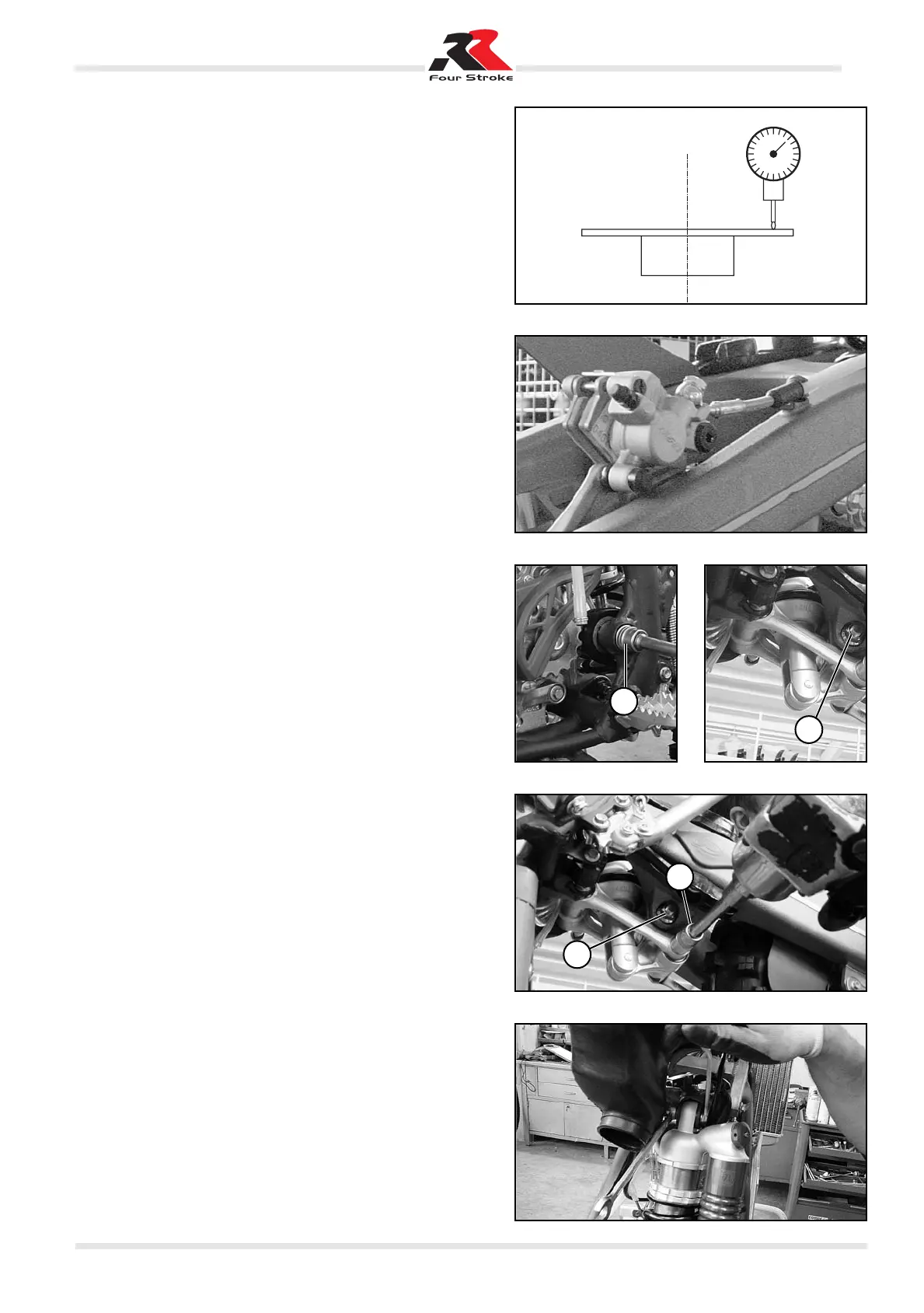

Verificare che l’errore massimo di planarità sui 360° non sia su-
periore a 0,04 mm.
When refitting the parts, tighten them to the prescribed torques
(see Chapter 3 Tightening torques - Specifications - Recom-
mended products).
Removing the swingarm
Disengage the swingarm from the rear brake line and from the
caliper with its support bracket.
Unscrew the swingarm/frame pin and the swingarm/linkage pin.
Remove the swingarm.
.
Removing the shock absorber
– Unscrew pins 1 and 2 and unfasten the rear suspension link-
age.
– Remove the upper shock absorber fastener.
5
9 - Rear suspension / wheel Release 01 Date 09/2007
2
1
2
1
