49
supply’s output current value.
13 246 579 8
1012 1113
1416 151719 182022 212325 24

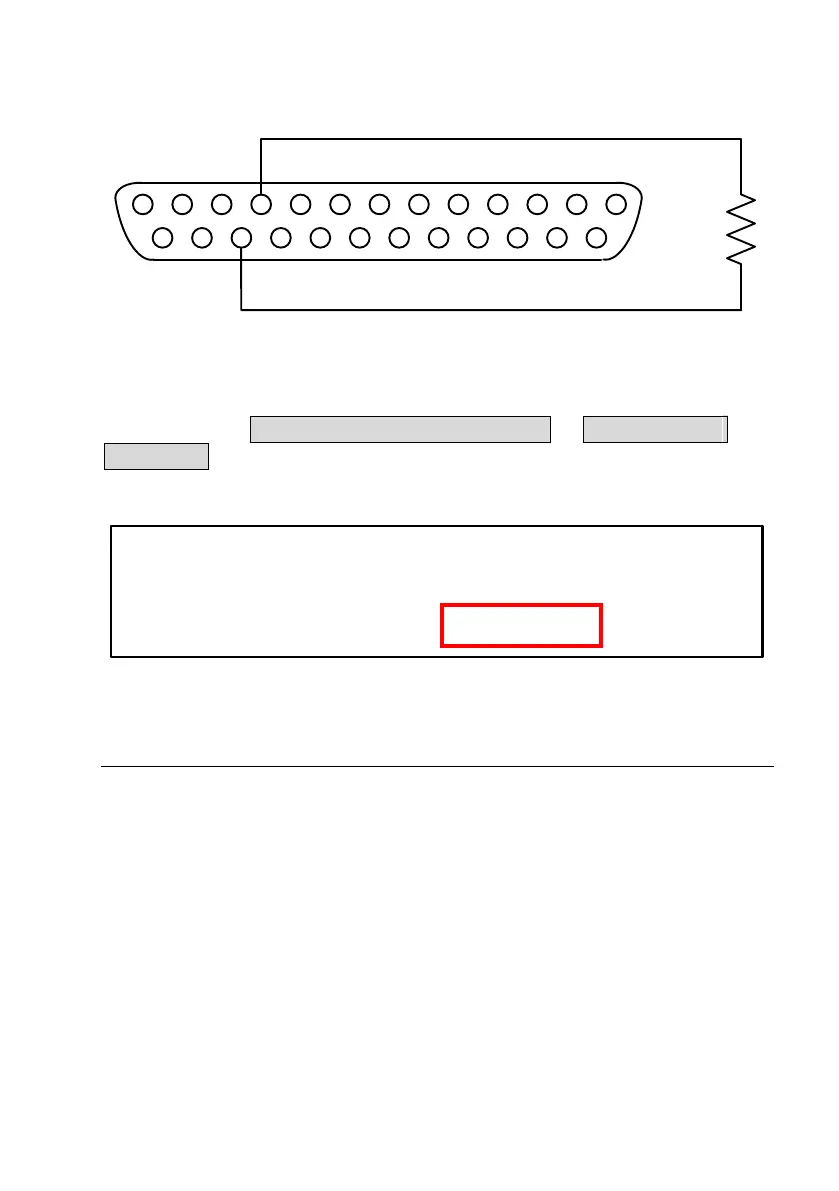

You may access MENU 6-SPECIAL TEST FUNC 2. EXTERNAL
CONTROL to choose the input resistance range at [EXTERN PROGRAM
=] to [10 V / 10 K] for 0 – 10kΩ and [ 5 V / 5 K] for 0 – 5 kΩ.
EXTERN VOLT CONTROL= VOLT
EXTERN CURR CONTROL= VOLT
EXTERN PROGRAM= 10 V / 10 K
Voltage Monitor
This function allows you to monitor the voltage output using Pin 11 and
one of the ground pins (i.e. Pin 22), which can be connected to a digital
voltage meter (DVM). The supply must be in Analog mode to use this
function. The monitoring the output voltage range (which reflects 0 to
full scale of the supply’s output voltage) can be selected between 0 – 10 V
or 0 – 5 V. Shown in the figure below is the setup connecting to a DVM.
