DC SOURCE
+
-
DVM
+
-

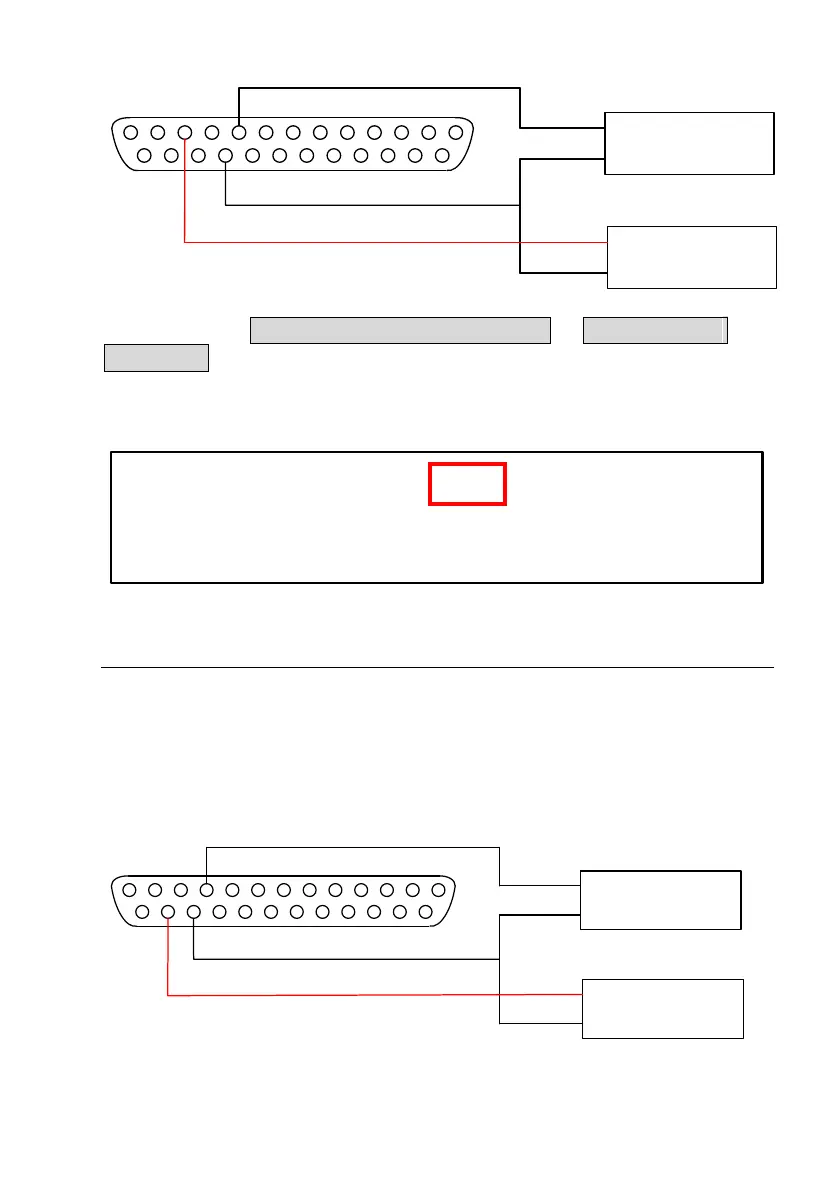

You may access MENU 6-SPECIAL TEST FUNC 2. EXTERNAL
CONTROL to choose the voltage monitor output range of Pin 11 at
[EXTERN MONITOR= ] to [10V] for 0 – 10 V (as shown in figure below)
and [5V] for 0 – 5V.
EXTERN MONITOR= 10V
EXTERN SHUT-OFF= OFF / LOW
EXTERN ENABLE= ACTIVE
Current Monitor
This function allows you to monitor the voltage output using Pin 24 and
one of the ground pins (i.e. Pin 22), which can be connected to a digital
voltage meter (DVM). The supply must be in Analog mode to use this
function. The monitoring output voltage range (which reflects 0 to full
scale of the supply’s output current) can be selected between 0 – 10 V or
0 – 5 V. Shown in the figure below is the setup connecting to a DVM.
1
3 2
4
6 579
81012
1113
14
16 1517
19 1820
22 2123
25 24
DC SOURCE
+
-
DVM
+
-
To Next Page
