62
provides a simple way of setting voltage and current, as well as
monitoring the output, using a web browser from a computer connected
to the same local area network as the power supply. To access this, do
the following:
1. On the computer, open up a Java-enabled web browser.
2. From the power supply menu, copy down the IP ADDRESS that
you (static assignment) assigned and type that address in the
URL bar of your browser with http:// prefix (i.e.
http://192.168.1.150 for IP Address 192.168.1.150)

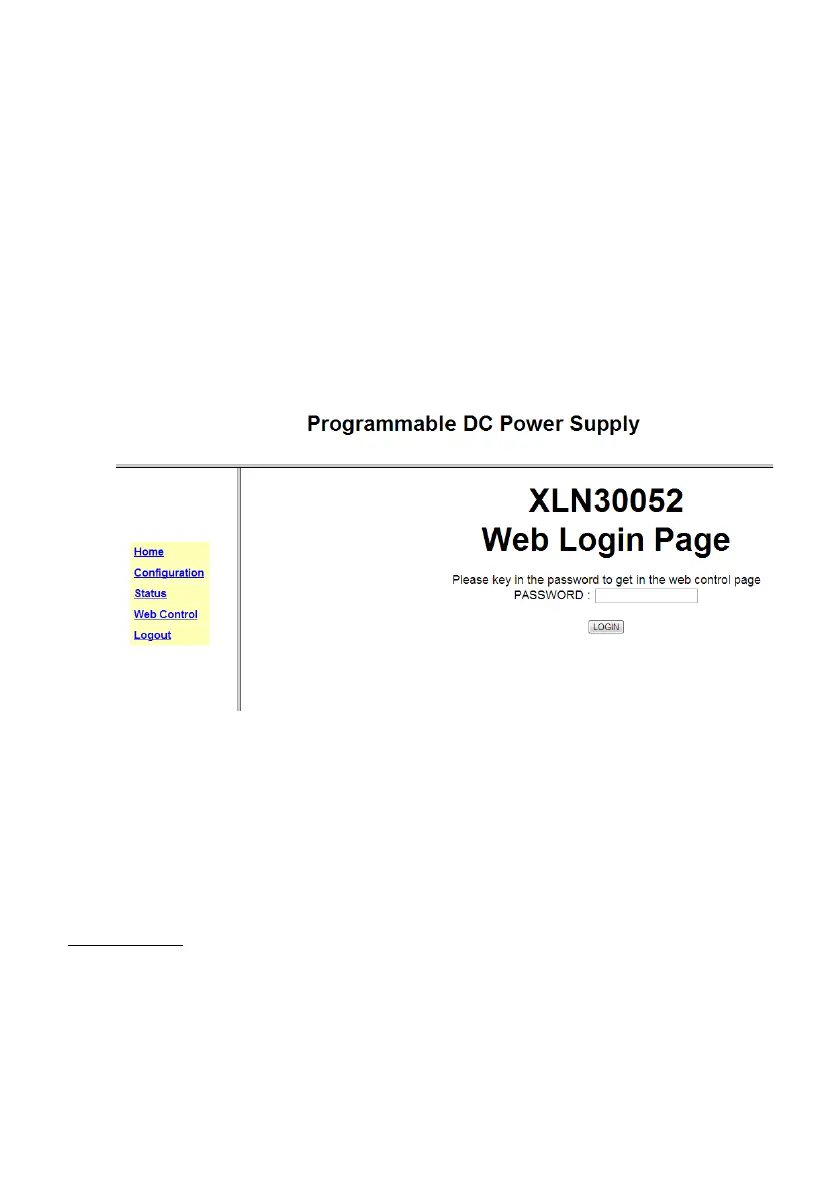

3. If correctly configured, the following screen will be shown:
4. A password is required to login and access any of the menu items
on the page.
DEFAULT ADMIN PASSWORD: 123456
This table describes each of the menu items available on the left frame of
the web browser GUI.
Menu Items
