To start and stop an announcement:
Step 1
If not already on yo
ur dashboard, select
Dashboa
rd
from the na
vigation bar.
Step 2
Under
T
ones/Announcements
, select
Announce-
ment
.

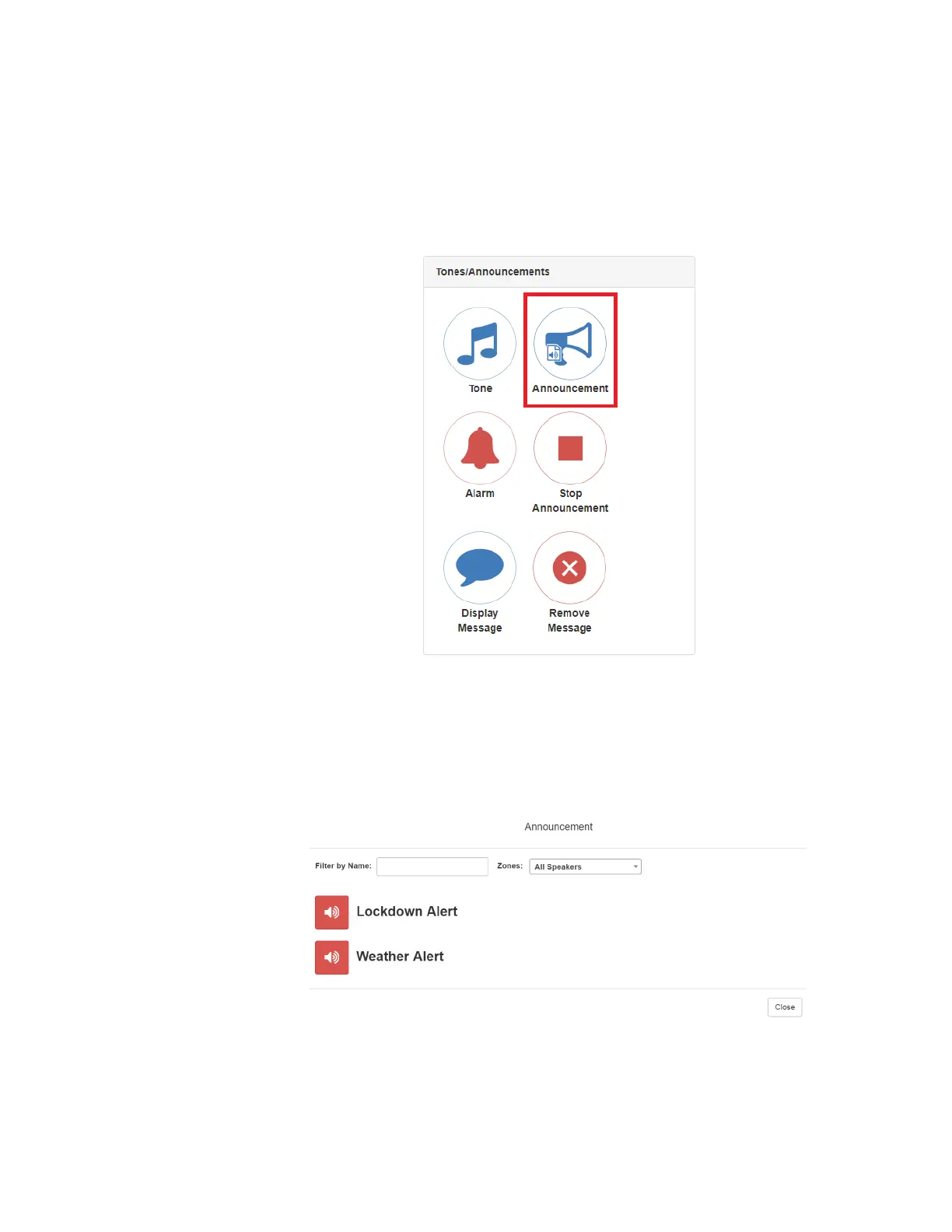

Figure 3-1, Announcement Icon
Figure 3-2, Announcement P
age
55
57
