Chapter 3 Component Locations
This section provides the locations and descriptions of the components that make up the Wraptor.
3.1 External Parts
The following figure shows the external parts located on the front of the Wraptor.

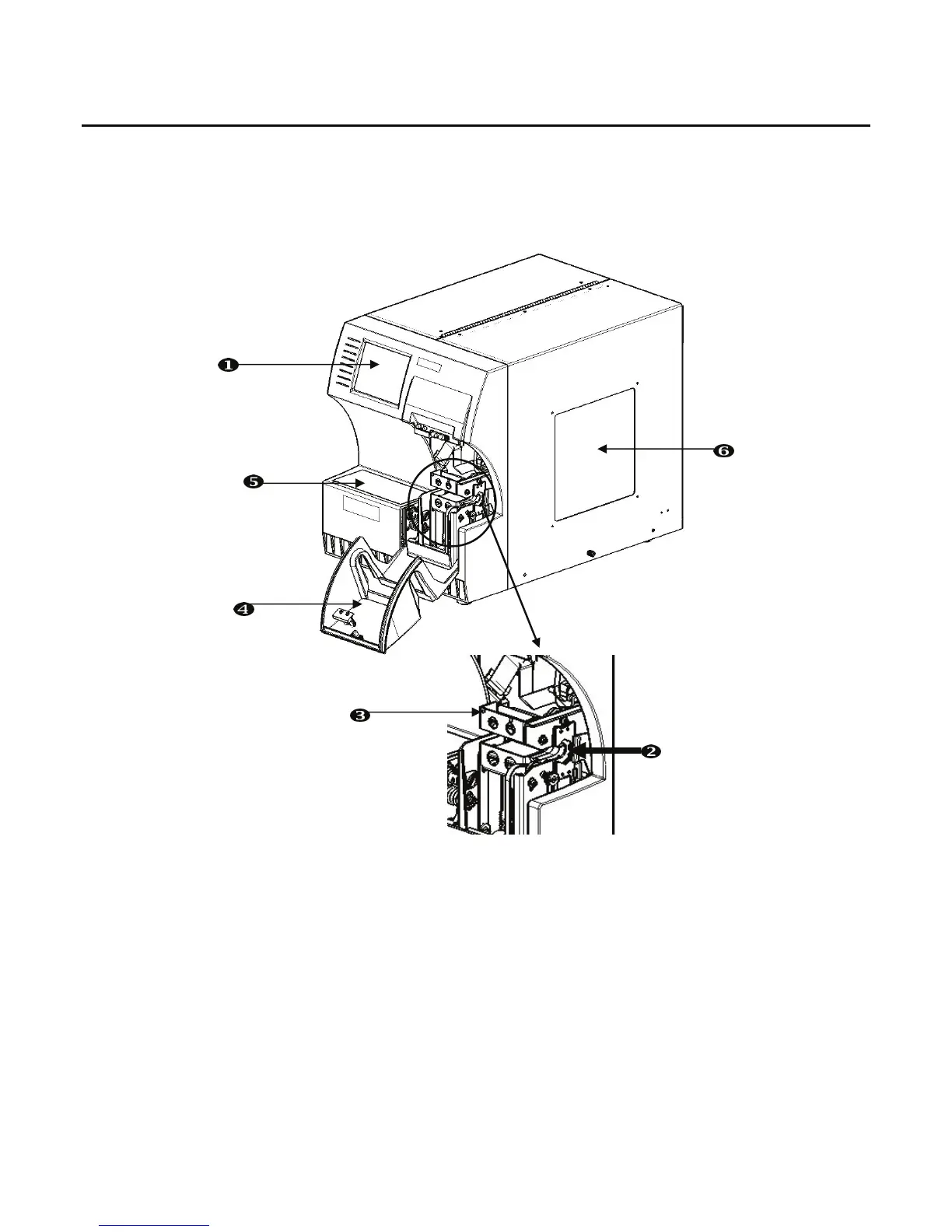

Figure 3. External Parts—Front
1. Touch Screen—Use the Utility Menu and Control Panel by touching this screen with your finger.
2. Jaws—The jaws hold the wire in place as the label is applied.
3. Wrapper—This is the mechanism that wraps a label around the wire.
4. Front Door —This clear plastic safety cover—shown in open position—protects the jaws of the unit.
The unit is designed to automatically stop all moving parts when the front door is open.
5. Hazardous Moving Parts Warning Label—A label is affixed to the ledge on the front of the unit to
warn users to keep fingers and body parts away from hazardous moving parts. The same label is also
affixed to the inside cover of the unit:
6. Viewing Window—Allows you to view the material path while the Wraptor is running.
6 Wraptor™ User’s Guide
