Brady Wraptor - Load the Printer Ribbon

4.3 Load the Printer Ribbon
Follow the steps below to load a ribbon in the Wraptor unit. Use the ribbon path shown below as your
guide:

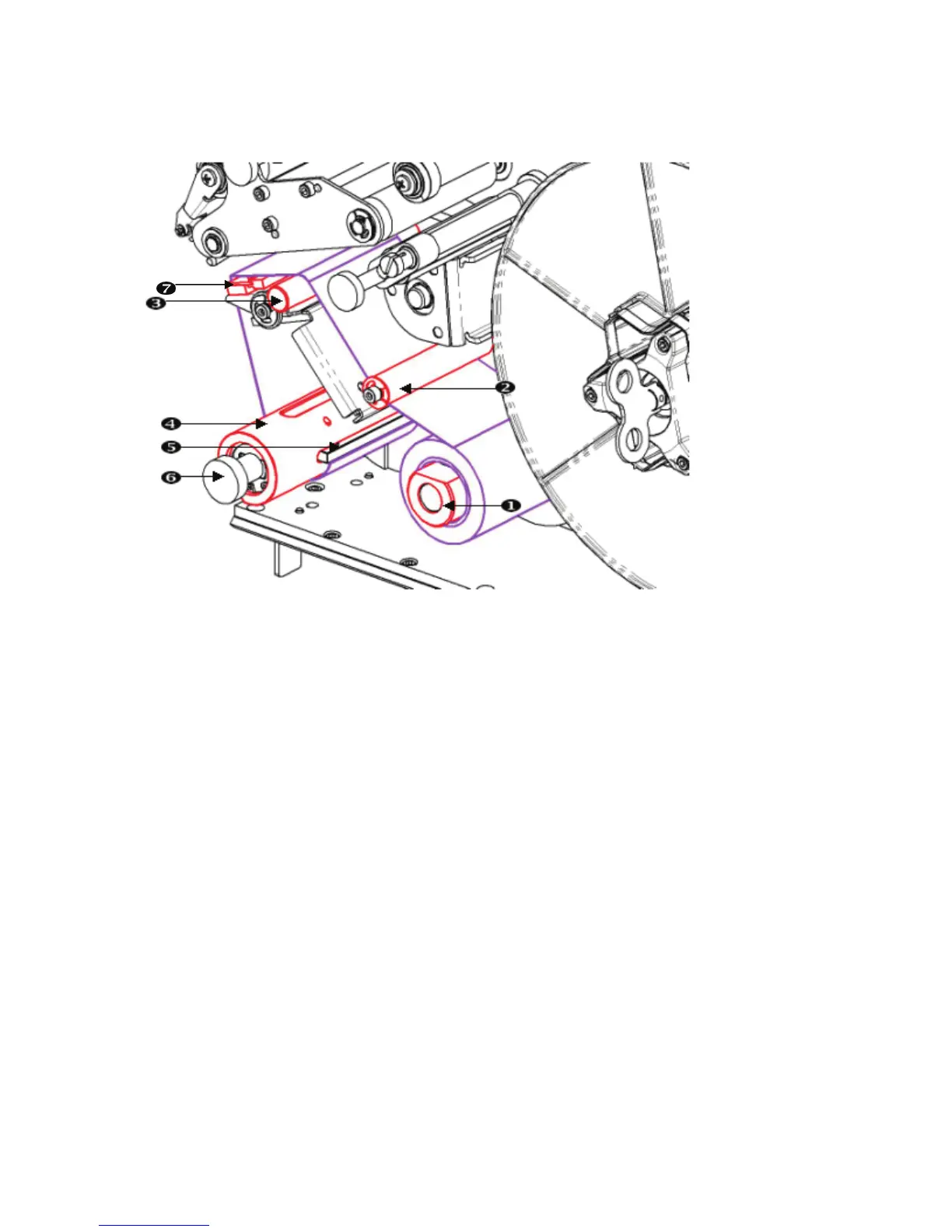

Figure 9. Ribbon Path Parts
1. Feed Spool
2. Guide Roller
3. Guide Bar
4. Take-up Spool
5. Clip
6. Take-up Spool Knob
7. Printhead
Wraptor™ User’s Guide 27
