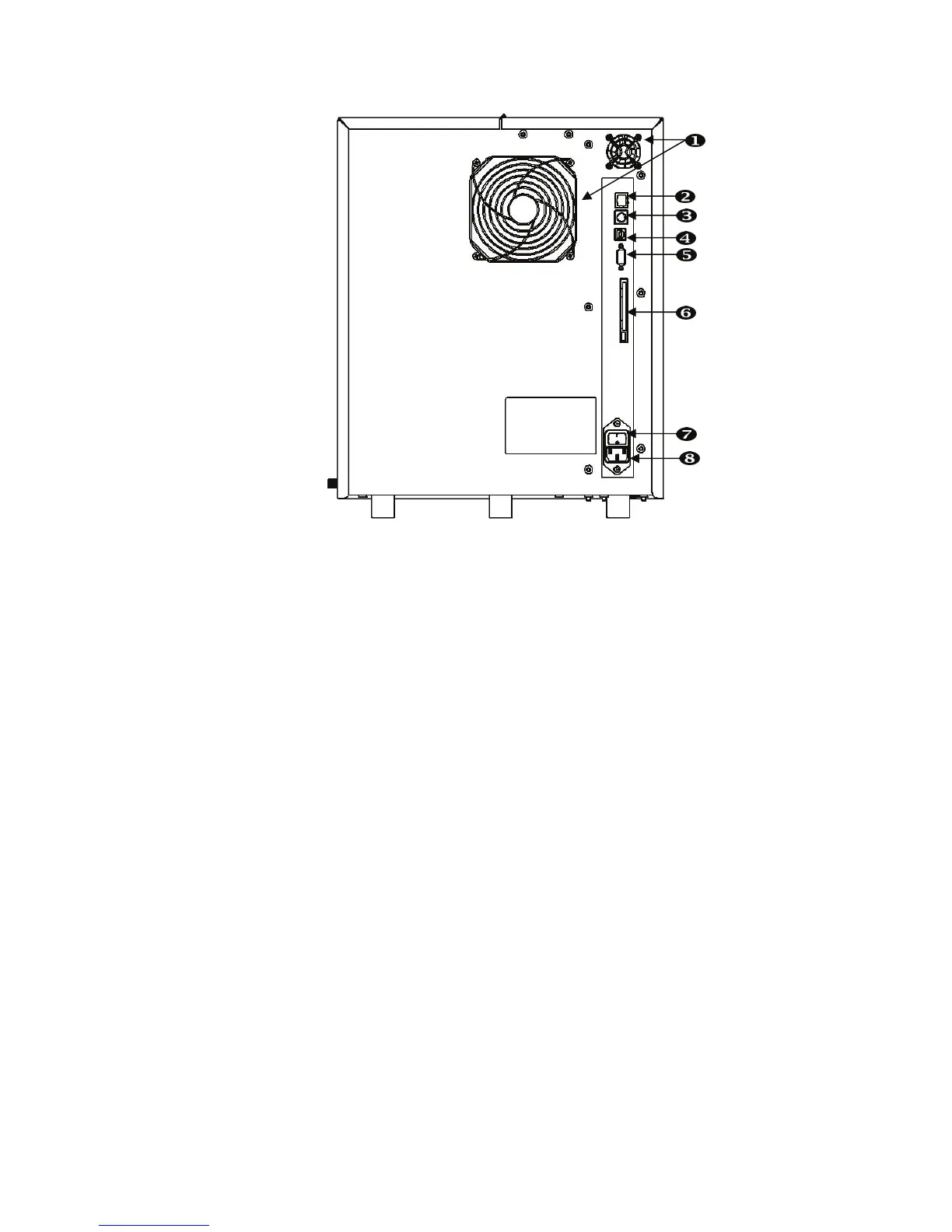

The following figure shows the external parts located on the back of the Wraptor.
Figure 4. External Parts—Back
1. Exhaust Fans—The exhaust fans run continually when the Wraptor is powered on to keep operating
components cool.
2. Ethernet Connection— Allows you to connect the Wraptor to a Local Area Network (LAN).
3. Keyboard Connection—Allows connection of a standard computer keyboard to the Wraptor (not used
at this time).
4. USB Port—Allows you to connect the Wraptor to the computer’s Universal Serial Bus.
5. Serial Port—Allows you to connect the Wraptor to a computer.
6. PCMCIA Connection—Allows connection of a PC Card Adapter so you can read/write to the
CompactFlash Memory Cards.
7. On/Off Switch—Controls the main power to the unit.
8. Power Inlet—This connection uses an IEC60320 3-conductor cord with a NEMA 15 plug
(N. American standard) and connects with a standard outlet supplying 120 VAC, 60 Hz power. Users in
countries outside of North America may be required to supply their own power cord. See
Power Cord
Specifications
on page 2.
Wraptor™ User’s Guide 7
