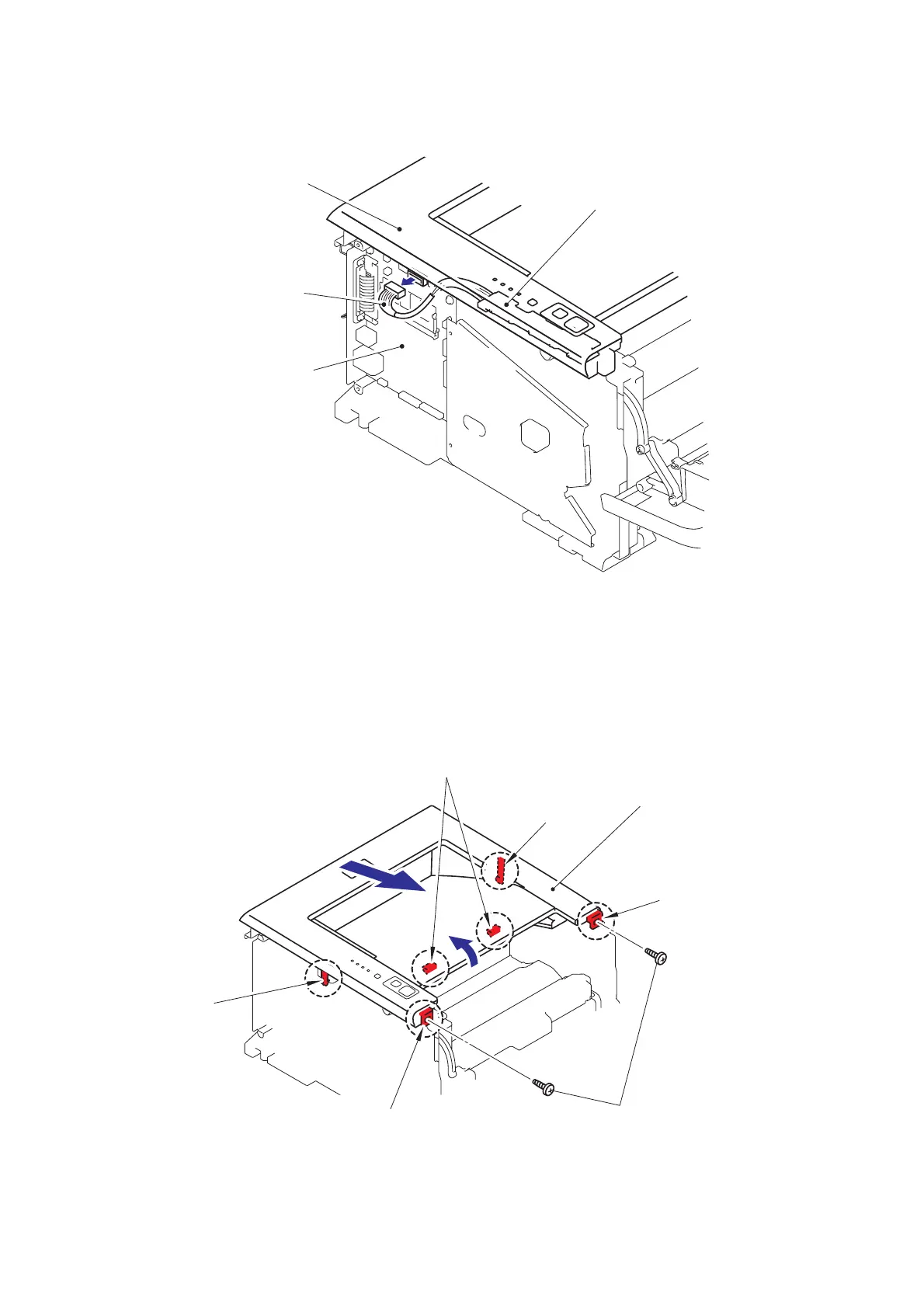

(16) Disconnect the Connector of the Panel PCB.
Fig. 4-12
(17) Remove the two bind B M4x12 Taptite screws from Top cover printed ASSY.
(18) Release all Hooks of the Top cover printed ASSY and lift up the front side of the Top
cover printed ASSY.
(19) Remove the Top cover printed ASSY.
Fig. 4-13
Top cover printed ASSY
Connector
Main PCB
Panel PCB
Hook
Top cover printed ASSY
Taptite, bind B M4x12
Hook
Hooks
Hook
Hook
