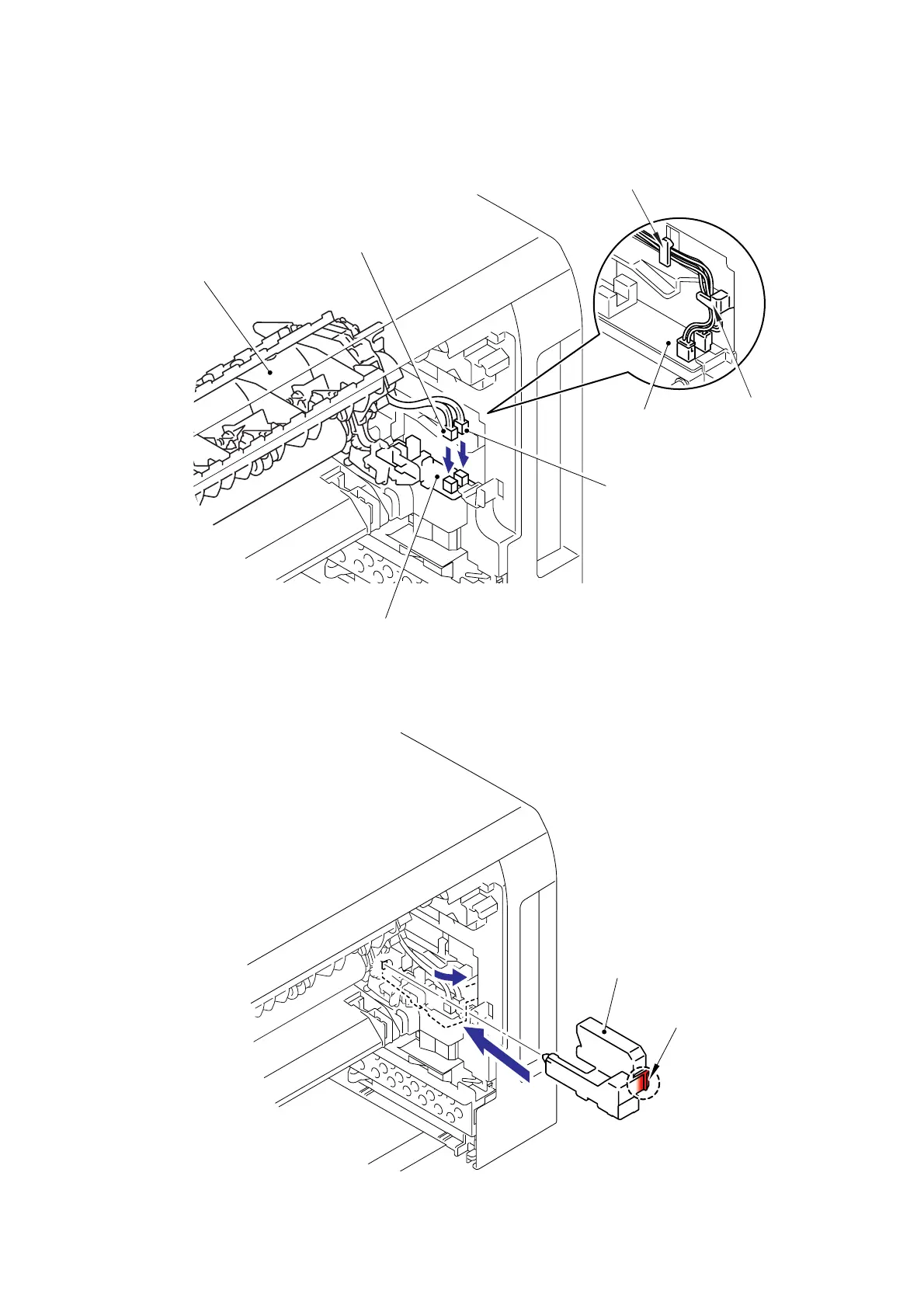

(15) Connect the connectors of the Thermistor ASSY M and Thermistor ASSY S onto the
Relay rear PCB ASSY.
Fig. 4-28
(16) Install the FU harness cover 2.
Fig. 4-29
