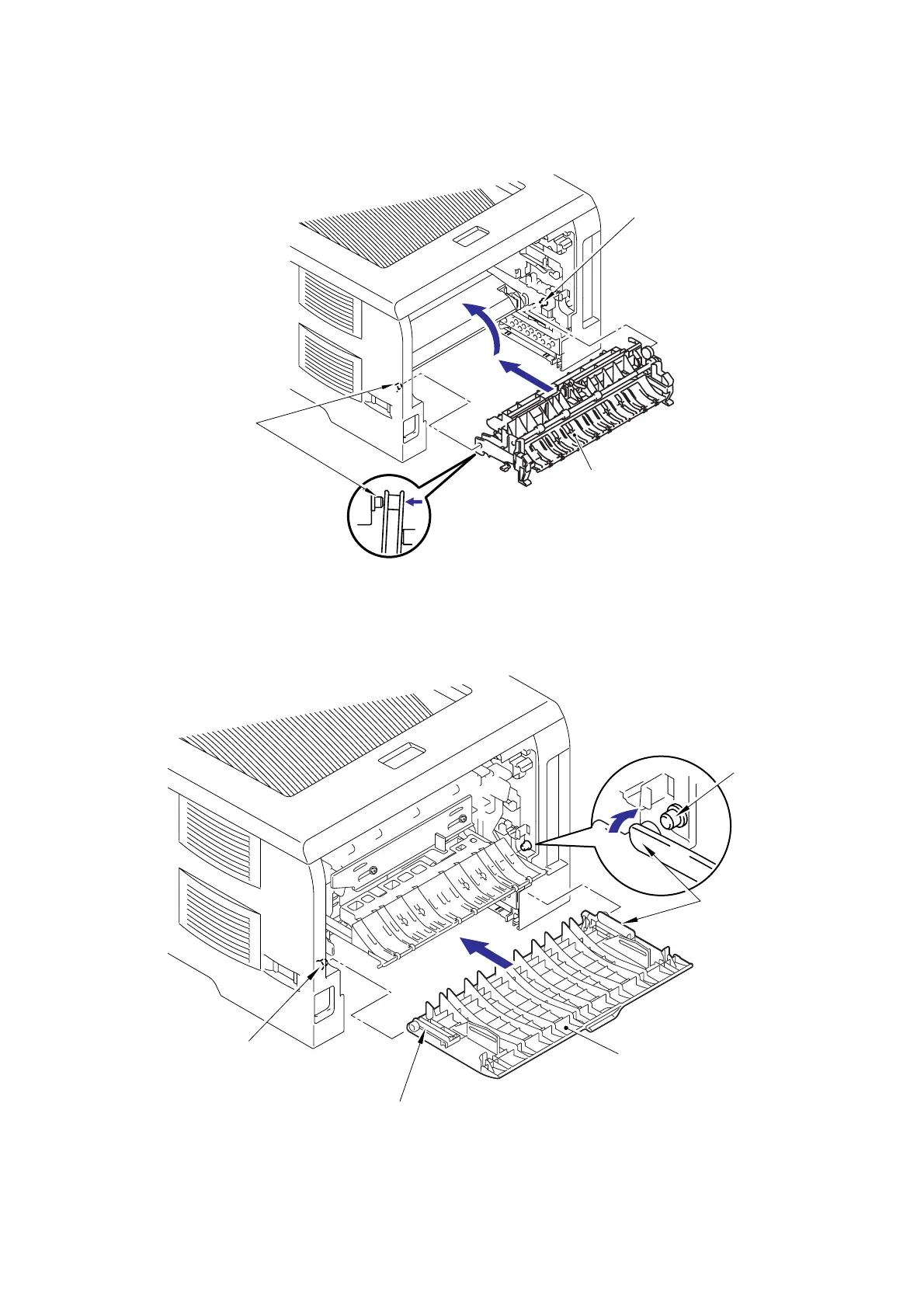

(19) Catch the Arm of the Rear chute ASSY onto the Pin of the machine body and install the
Rear chute ASSY.
Fig. 4-32
(20) Catch the Arm of the Back cover onto the Pin of the machine body and install the Back
cover.
Fig. 4-33
Pin
Rear chute ASSY
19c
19b
19a
Pin
Pin
Arm
arm
Pin
Back cover
20a
20b
