(3) Remove the bind B M4x12 Taptite screw, and then remove the High-voltage PS PCB
ASSY.
(4) Disconnect the three connectors from the High-voltage PS PCB ASSY.

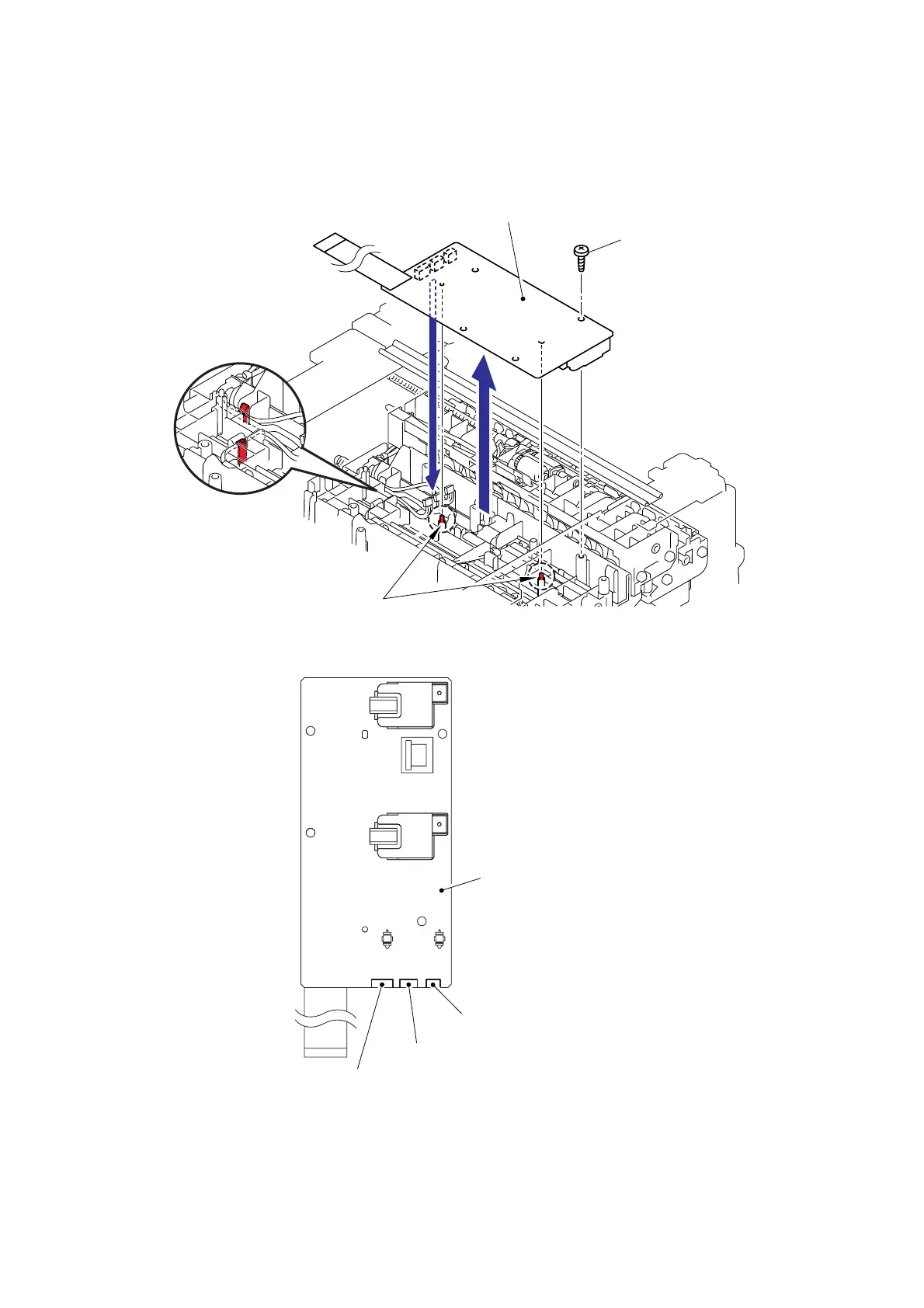

Fig. 5-100
Fig. 5-101
High-voltage PS PCB ASSY
Taptite, bind B M4x12
Pins
High-voltage PS PCB ASSY
PE EG sensor connector
MP PE sensor connector
Toner LED PCB connector
