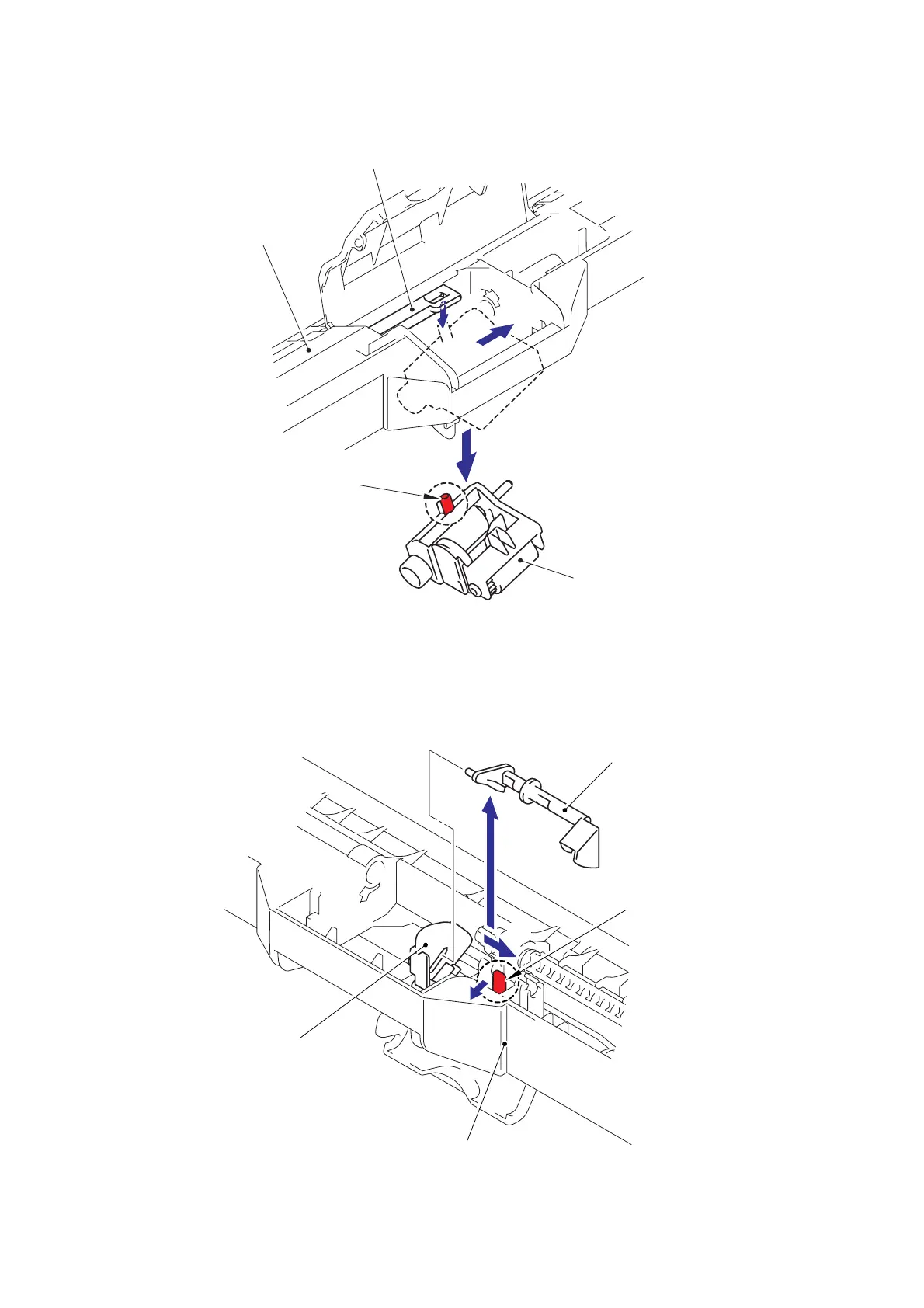

(6) Slide the MP roller holder ASSY to the direction of 6a and pull it up to remove.
Fig. 5-116
(7) Turn the MP feed frame upside down.
(8) Slide the PE actuator MP B to the direction of 8b while pressing the Hook to the direction
of 8a, and pull it up to remove.
Fig. 5-117
Hook
Lift arm MP
MP roller holder ASSY
MP feed frame
6a
6b
PE actuator MP B
Hook
MP feed frame
PE actuator MP
8b
8c
8a
