5-85
Confidential

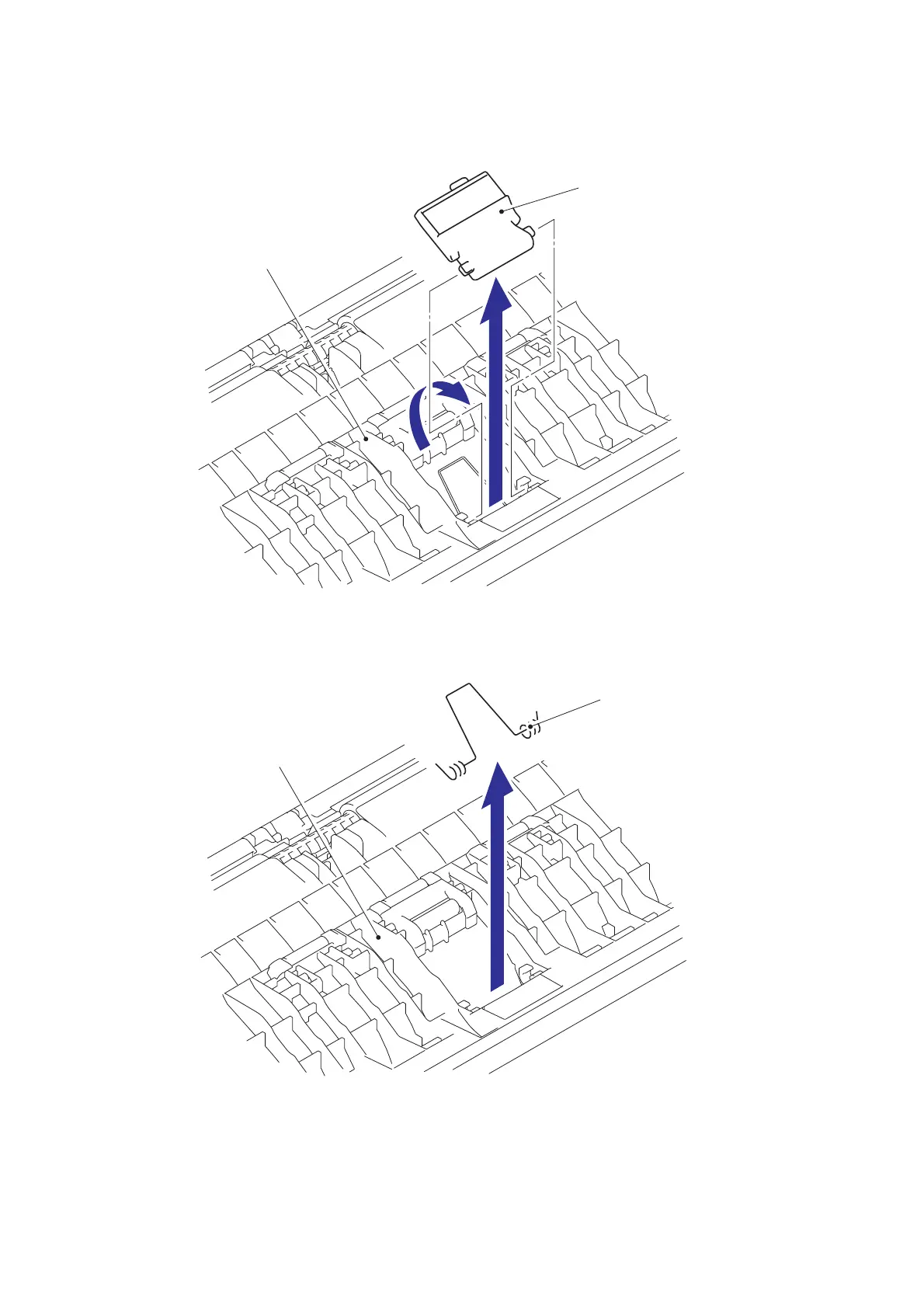

(11) Lift up the back of the Separation pad ASSY MP to the direction of 11a and pull up the
Separation pad ASSY MP to remove.
Fig. 5-120
(12) Remove the MP separation spring from the MP frame.
Fig. 5-121
MP frame
Separation pad ASSY MP
11b
11a
MP frame
MP separation spring
