Brother HL-5350DN

5-106
Confidential

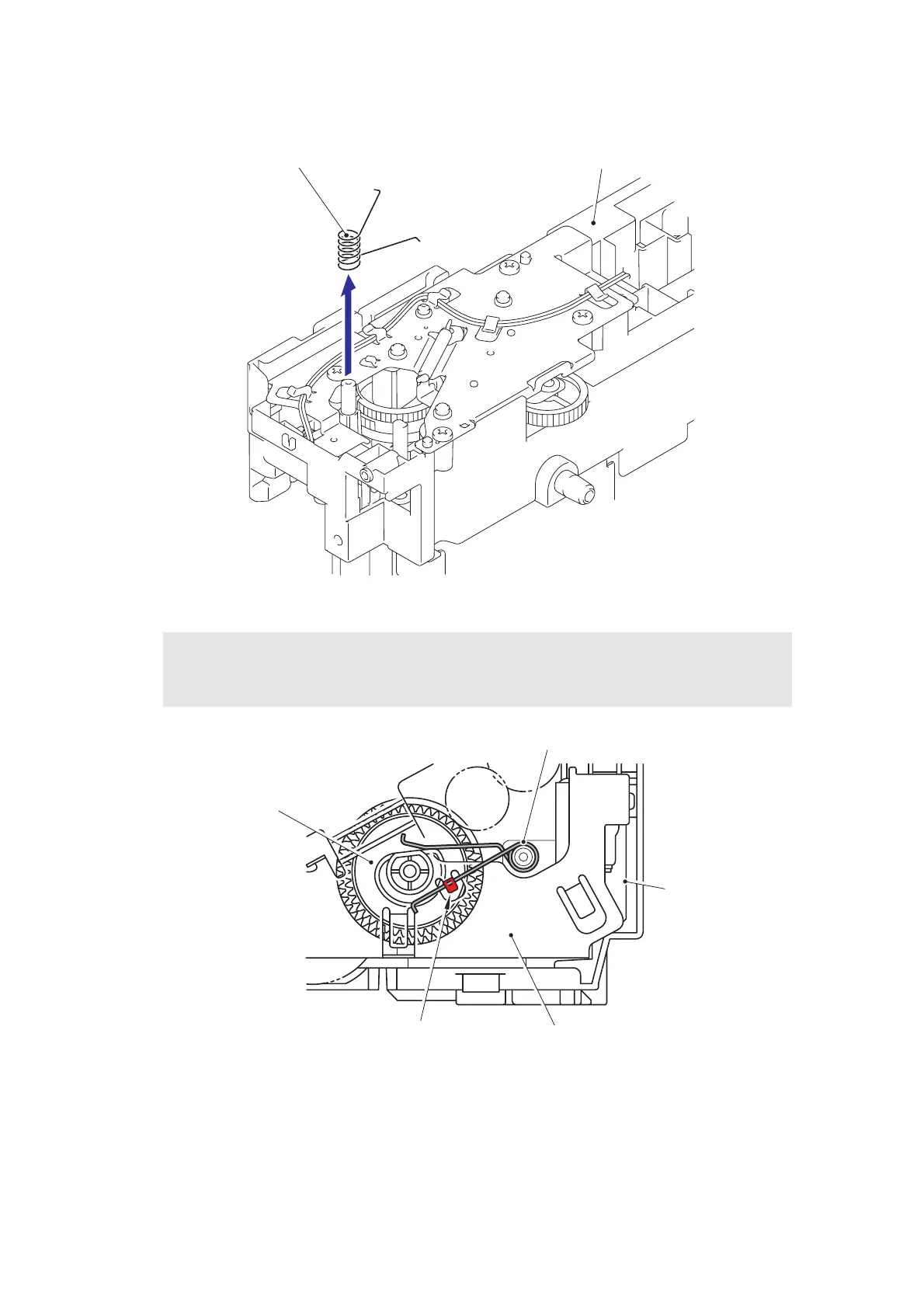

(3) Remove the T1 sector gear spring LT from the LT frame L.
Fig. 5-153
Fig. 5-154
Assembling Note:
• When assembling the T1 sector gear spring LT, ensure that its direction is correct
referring to the figure below.
LT frame L
T1 sector gear spring LT
T1 sector gear
T1 sector gear spring LT
LT frame L
LTLT drive unit
Hook
