23) USB Speed Indication (ON/OFF)
This allows you to switch whether the current USB speed is indicated with the LED or
not. Whenever switching, the current setting is changed to the other one.
The USB speed is not indicated by default.
It also allows you to check the selected setting by the Toner and Drum LEDs being lit
for 1 second (USB speed indication is ON) or all LEDs being lit for 1 second (USB
speed indication is OFF) when releasing the [Go] button. The LCD model does not have
this function.

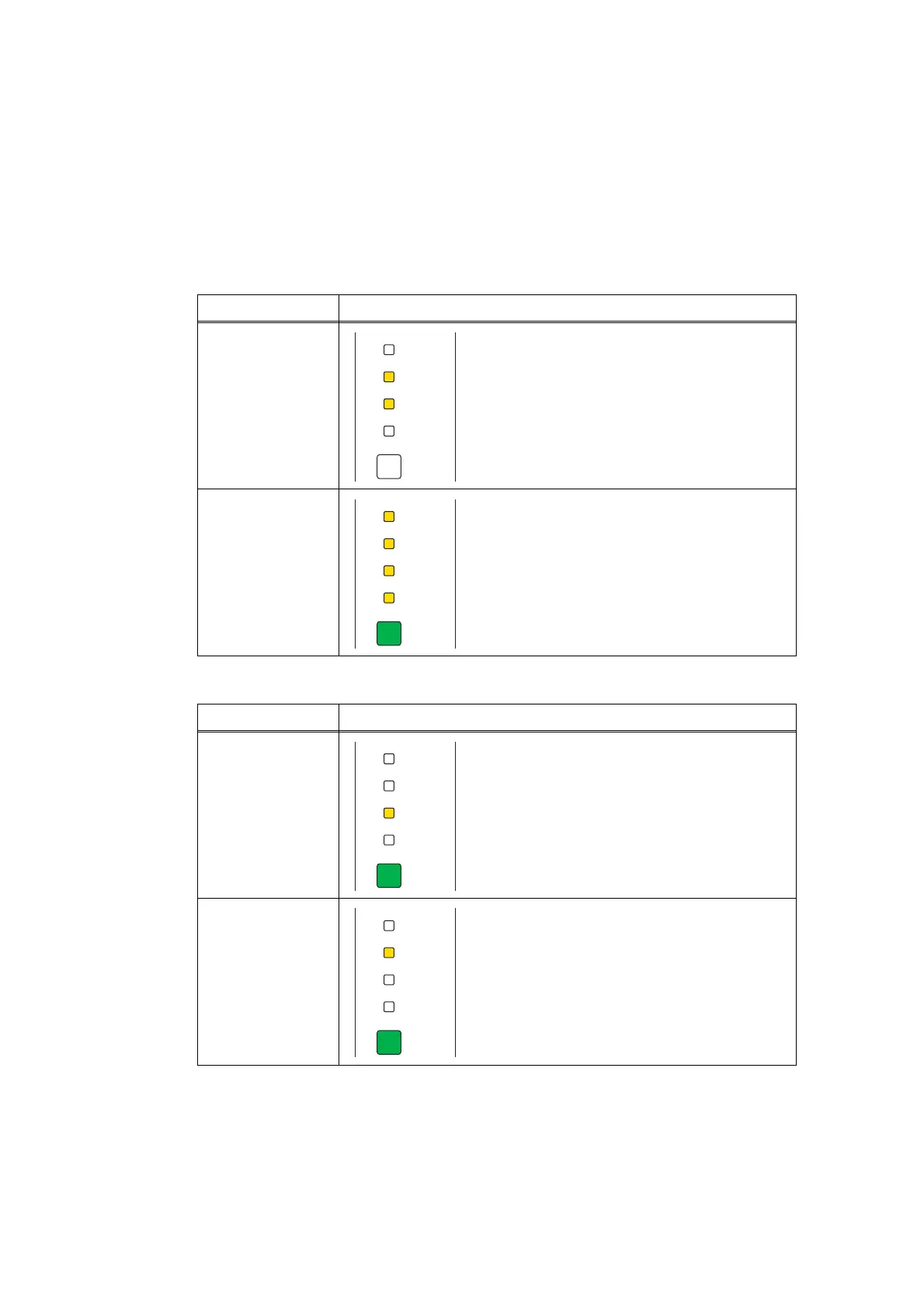

LEDs indication when USB speed indication is ON.
* Warning/Operator Call/Service Call indication are given priority over the USB speed
indication.
USB Speed Indication LED Model
Switch the setting
from OFF to ON.
Toner and Drum LEDs light for 1 second.
Switch the setting
from ON to OFF.
All LEDs light for 1 second.
USB Speed Indication LED Model
HIGHT SPEED
FULL SPEED
Back
Cover
Toner
Drum
Paper
Status
Back
Cover
Toner
Drum
Paper
Status
Back
Cover
Toner
Drum
Paper
Status
Back
Cover
Toner
Drum
Paper
Status
