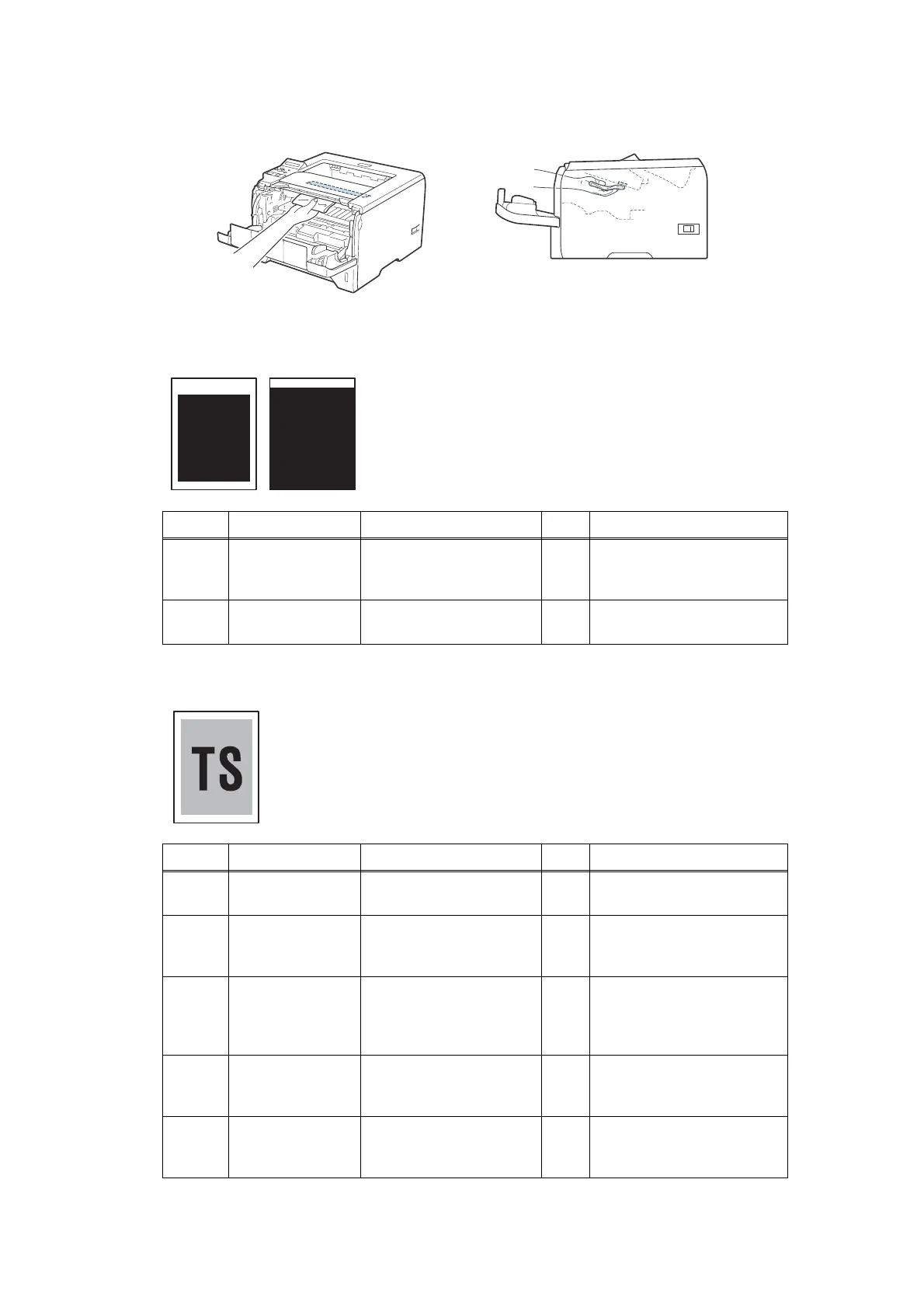

Brother HL-5350DN Service Manual

3-36
Confidential
<Location of the leser beam window>
Fig. 3-6
■ Faulty registration
■ Dark
<User Check>
- Check that the appropriate media type is selected in the
printer driver.
Step Cause Check
Result Remedy
1
Registration rear
actuator catching
on some position
Does the registration
rear actuator move
smoothly?
No
Re-assemble the
registration rear actuator.
2
Drum unit failure Is the rotation torque of
the drum unit heavy?
Yes
Replace the drum unit.
<User Check>
- Check the machine's environment. High temperature and high
humidity conditions can cause this problem.
- Replace the drum unit with a new one.
- Replace the toner cartridge with a new one.
Step Cause Check
Result Remedy
1
Drum unit
electrode dirty
Is the electrode of the
drum unit dirty?
Yes Clean the electrode.
2
Drum unit failure Is the problem solved
after replacing the drum
unit?
Yes
Replace the drum unit.
3
Developing bias
malfunciton
Is the problem solved
after reseting the
developer roller
counter?
Yes
Reset the developer roller
counter.
4
HVPS PCB
failure
Is the problem solved
after replacing the
HVPS PCB ASSY?
Yes
Replace the HVPS PCB
ASSY.
5
Main PCB failure Is the problem solved
after replacing the main
PCB ASSY?
Yes
Replace the main PCB
ASSY.

Brother HL-5350DN Specifications

General

Color	No
N-up printing	4, 9, 16, 25
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Economical printing	Yes
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Internal memory	32 MB
Processor model	NEC VR5500
Maximum internal memory	544 MB
Sound power level (standby)	35 dB
Sound pressure level (printing)	54 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Multi-Purpose tray input capacity	50 sheets
Maximum print size	216 x 356 mm
Media weight (tray 1)	60 - 105 g/m²
Non-ISO print media sizes	Letter
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Supported network protocols (IPv4)	IPv4: ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Server, TELNET Server, HTTP/HTTPS server, SSL/TLS, TFTP client and server, SMTP Client, APOP, POP before SMTP, SMTP-AUTH, SNMPv1/v2c/v3, ICMP, LLTD responder, WebServicesPrint, IPv6: NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, FTP Server, TELNET Server, HTTP/HTTPS server, SSL/TLS, TFTP client and server, SMTP Client, APOP, POP before SMTP, SMTP-AUTH, SNMPv1/v2c/v3, ICMPv6, LLTD responder, WebServicesPrint
Networking features	10/100 Base-TX
Power consumption (active)	675 W
Compatible operating systems	Windows: Vista, 2000 Prof., XP Home Edition, XP Prof. Edition (32 & 62 bits), Server 2003 (32 & 64 bits), Server 2008. MacIntosh: Mac OS X 10.3.9 + Linux
Power consumption (standby)	75 W
Power consumption (PowerSave)	6 W
Package weight	11500 g

Weight and Dimensions

Dimensions (WxDxH)	371 x 384 x 246 mm
