Brother MFC-J2330DW Service Manual

3-35
Confidential

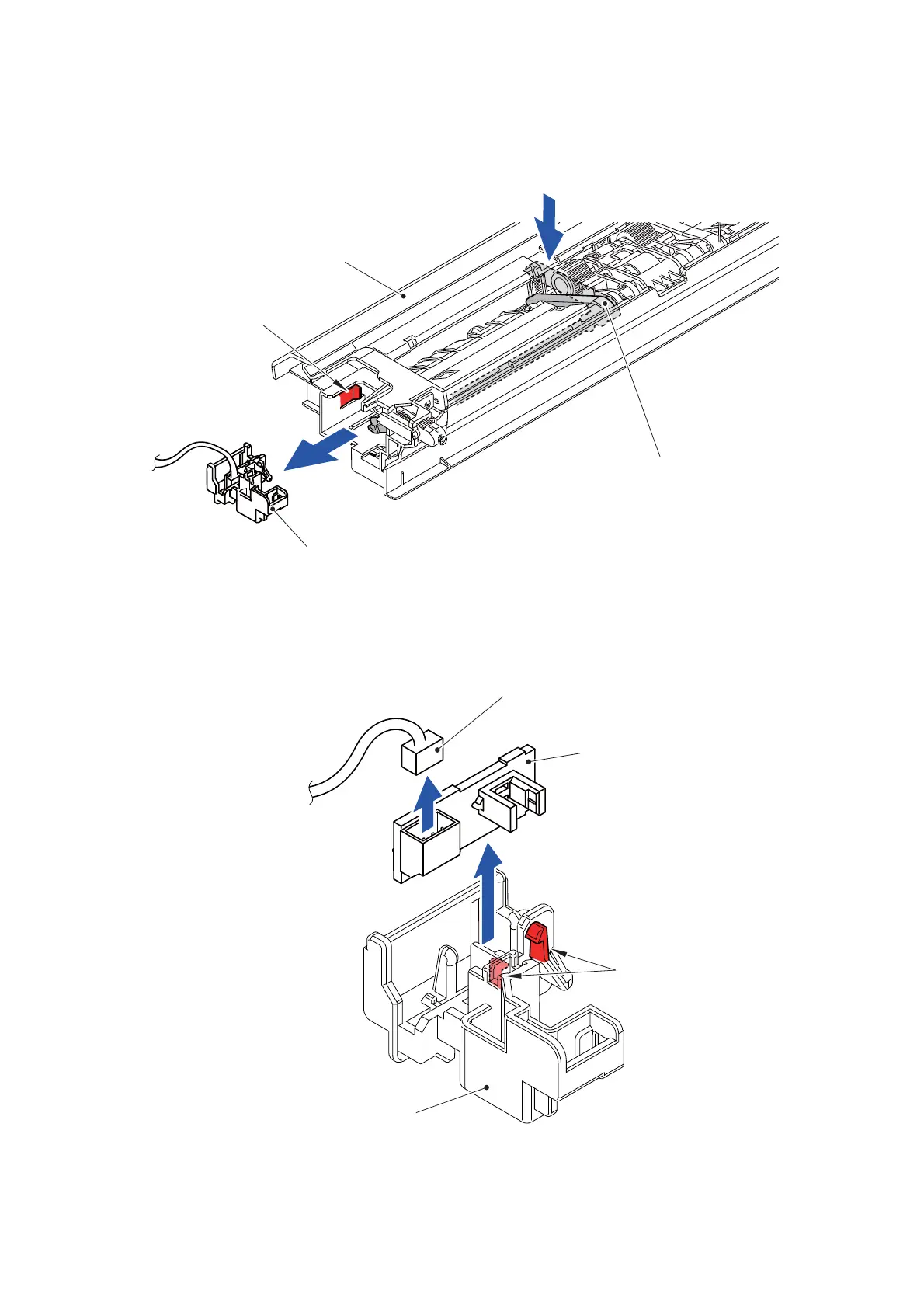

(4) While holding down the Paper actuator MP, release the one Hook and remove the
MP sensor holder.
Fig. 3-7
(5) Release the two Hooks and remove the MP paper detection sensor PCB from the
MP sensor holder.
(6) Disconnect the Connector from the MP paper detection sensor PCB.
Fig. 3-8
MP sensor holder
Paper actuator MP
MP tray ASSY
Hook
MP sensor holder
MP paper detection sensor PCB
Hooks
6
5
Connector

Brother MFC-J2330DW Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Scan Resolution	1200 x 2400 dpi
Fax Speed	33.6 kbps
Max Print Resolution	4800 x 1200 dpi
Print Speed (Black)	22 ppm
Print Speed (Color)	20 ppm
Duplex Printing	Automatic
Display	2.7" Touchscreen
ADF Capacity	50 sheets
Supported Paper Sizes	A3, A4
Operating System Support	Windows, macOS, Linux
Scanner Type	Flatbed, ADF
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Ink Cartridges	Black, Cyan, Magenta, Yellow
Paper Input Capacity	250 sheets
