Brother MFC-J2330DW

3-50
Confidential
9.16 ADF Document Detection Sensor PCB
(1) Turn the ADF unit right side up.
(2) Push the Lock arm in the direction of the arrow 2a and remove the ADF document
detection sensor PCB from the Lower doc chute ASSY.
(3) Disconnect the Connector from the ADF document detection sensor PCB.

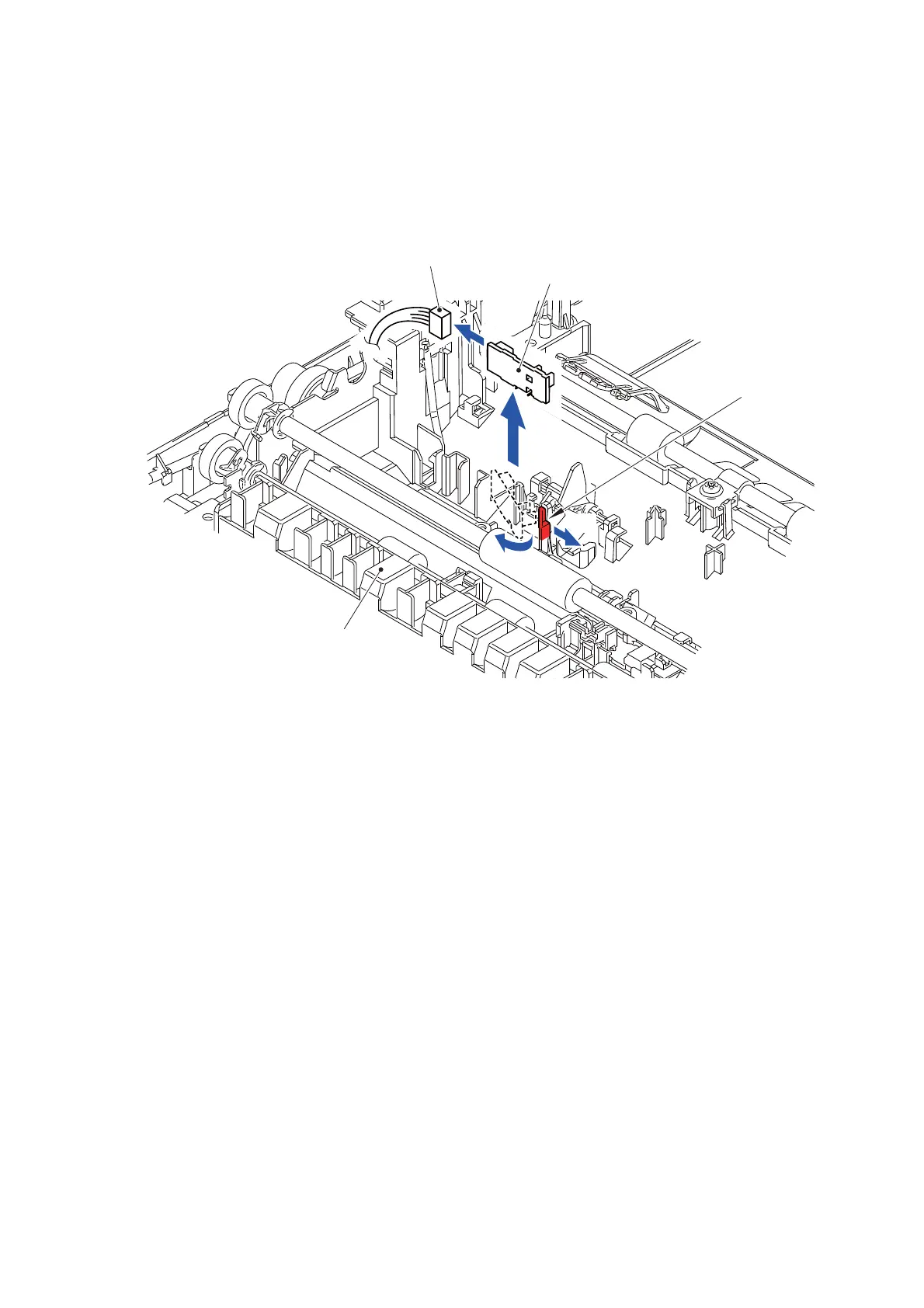

Fig. 3-35
ADF document detection sensor PCB
Connector
Lower doc chute ASSY
2a
Lock arm
2b
2c
3
