Brother MFC-J2330DW Service Manual

3-102
Confidential

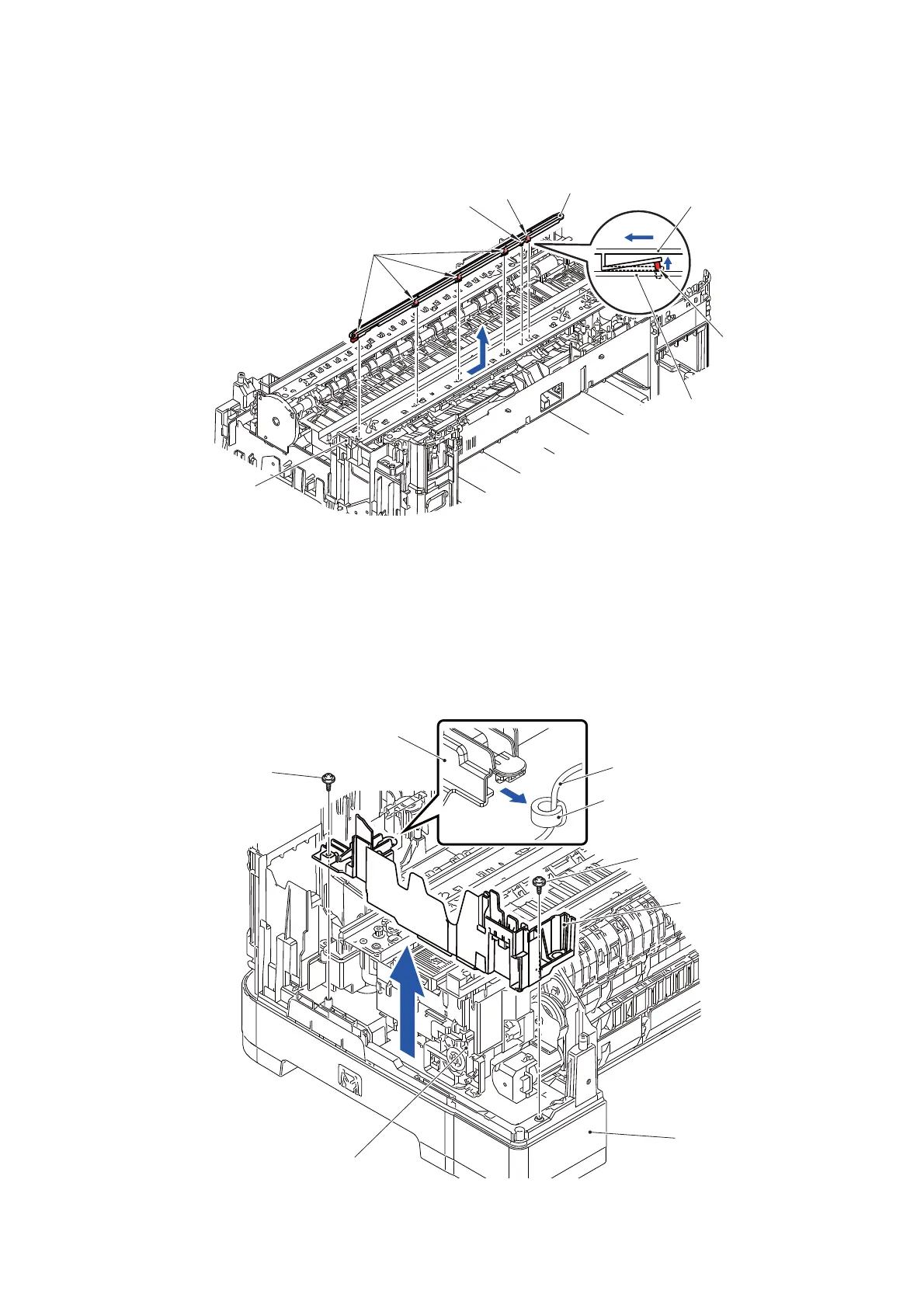

9.44 Carriage Motor
(1) Release the Boss and remove the Tube protector from the CR frame ASSY.
Fig. 3-119
(2) Release the wiring of the Carriage motor harness.
(3) Release all the wiring of the Lower side cover and Maintenance unit.
(4) Remove the two screws (TAPTITE CUP B M3x10) and remove the Lower side
cover from the Main body.
Note: When removing the Lower side cover, be careful not to pull it too much.
(5) Remove the Ferrite core on to the Carriage motor harness from the Lower side
cover.
Fig. 3-120
Hooks
Hook
Boss
Tube protector
CR frame ASSY
Tube protector
Boss
CR frame ASSY
TAPTITE CUP B M3x10
Lower side cover
Main body
TAPTITE CUP B M3x10
Carriage motor harness
Ferrite core
Lower side cover
Maintenance unit

Brother MFC-J2330DW Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Scan Resolution	1200 x 2400 dpi
Fax Speed	33.6 kbps
Max Print Resolution	4800 x 1200 dpi
Print Speed (Black)	22 ppm
Print Speed (Color)	20 ppm
Duplex Printing	Automatic
Display	2.7" Touchscreen
ADF Capacity	50 sheets
Supported Paper Sizes	A3, A4
Operating System Support	Windows, macOS, Linux
Scanner Type	Flatbed, ADF
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Ink Cartridges	Black, Cyan, Magenta, Yellow
Paper Input Capacity	250 sheets
