Brother MFC-J2330DW Service Manual

3-129
Confidential
9.60 T1 Bank ASSY

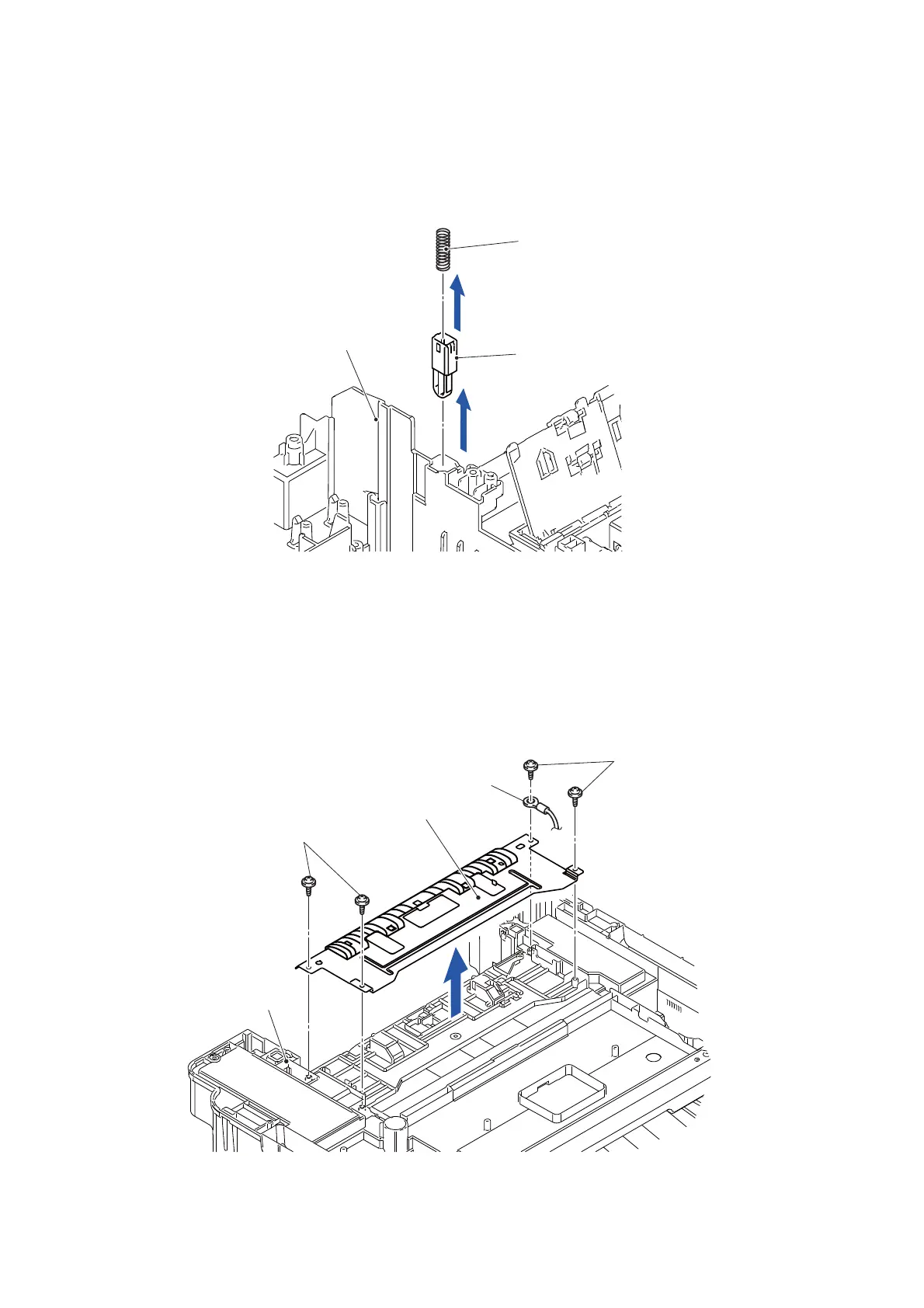

(1) Remove the Tray lock cam and Tray lock spring from the Lower cover.
(2) Remove the Tray lock cam and Tray lock spring on the other side in the same way.
Fig. 3-166
(3) Turn the Main body upside down.
(4) Remove the screw (TAPTITE CUP B M3x10) and remove the Tray FG wire (T1).
(5) Remove the three screws (TAPTITE CUP B M3x10) and remove the Lower cover
frame from the Lower cover.
Assembling Note: When tightening the four screws (TAPTITE CUP B M3x10), tighten
them in the order shown in the figure.
Fig. 3-167
Lower cover
Tray lock cam
Tray lock spring
TAPTITE CUP B M3x10
TAPTITE CUP B M3x10
Lower cover
Lower cover frame
Tray FG wire (T1)
1
2
3
4

Brother MFC-J2330DW Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Scan Resolution	1200 x 2400 dpi
Fax Speed	33.6 kbps
Max Print Resolution	4800 x 1200 dpi
Print Speed (Black)	22 ppm
Print Speed (Color)	20 ppm
Duplex Printing	Automatic
Display	2.7" Touchscreen
ADF Capacity	50 sheets
Supported Paper Sizes	A3, A4
Operating System Support	Windows, macOS, Linux
Scanner Type	Flatbed, ADF
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Ink Cartridges	Black, Cyan, Magenta, Yellow
Paper Input Capacity	250 sheets
