Brother MFC-J2330DW Service Manual

3-122
Confidential
9.56 Platen/Paper Ejection Roller
(1) Remove the Idle pulley and remove the Paper ejection roller belt from the Idle gear
pulley and Paper ejection roller.
Note: Be careful not to lose the Idle pulley.

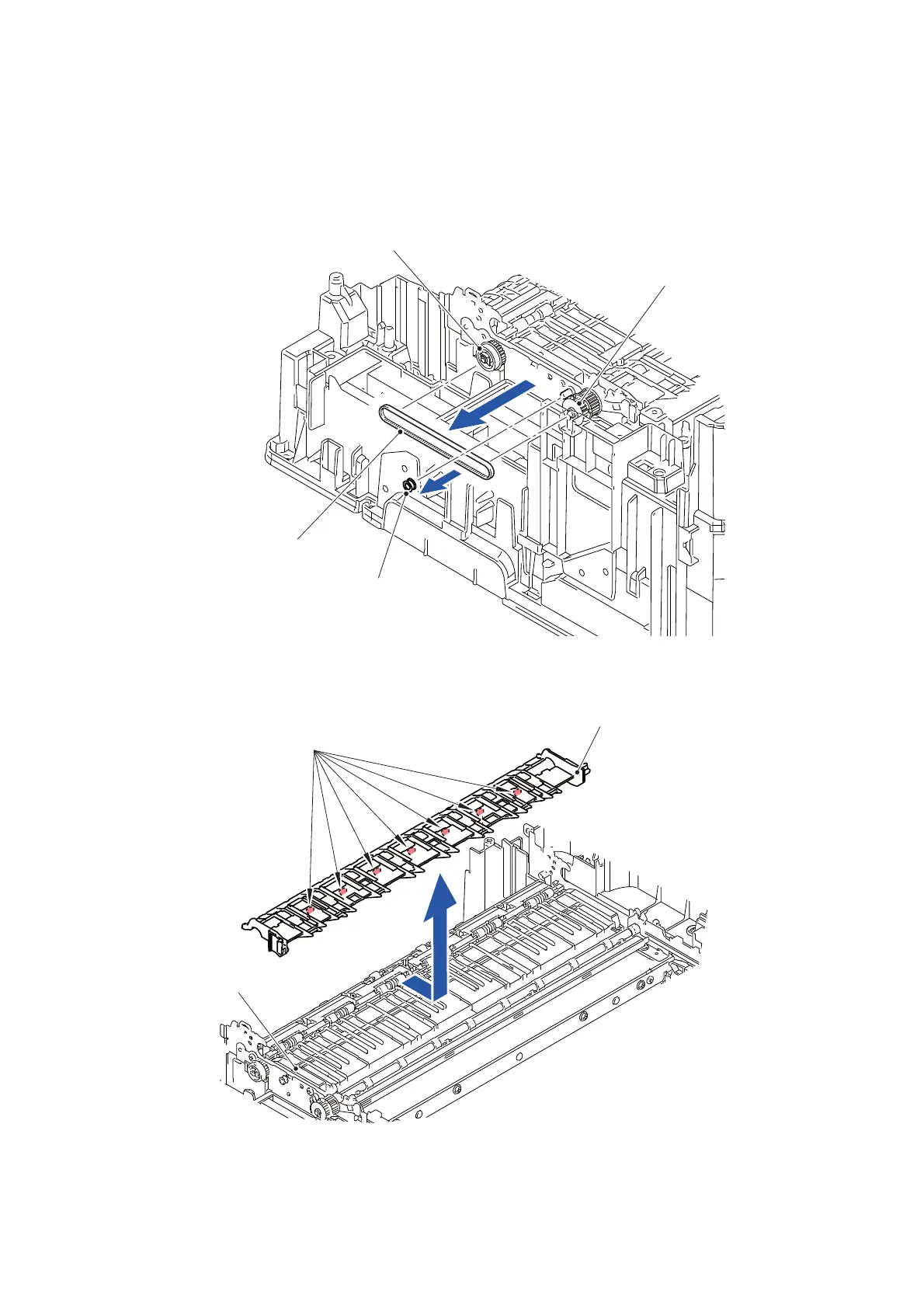

Fig. 3-152
(2) Remove the Switchback inner paper guide from the Main body.
Fig. 3-153
Idle pulley
Paper ejection roller belt
Idle gear pulley
Paper ejection roller
Hooks
Switchback inner paper guide
Main body
