Brother MFC-J2330DW Service Manual

3-123
Confidential

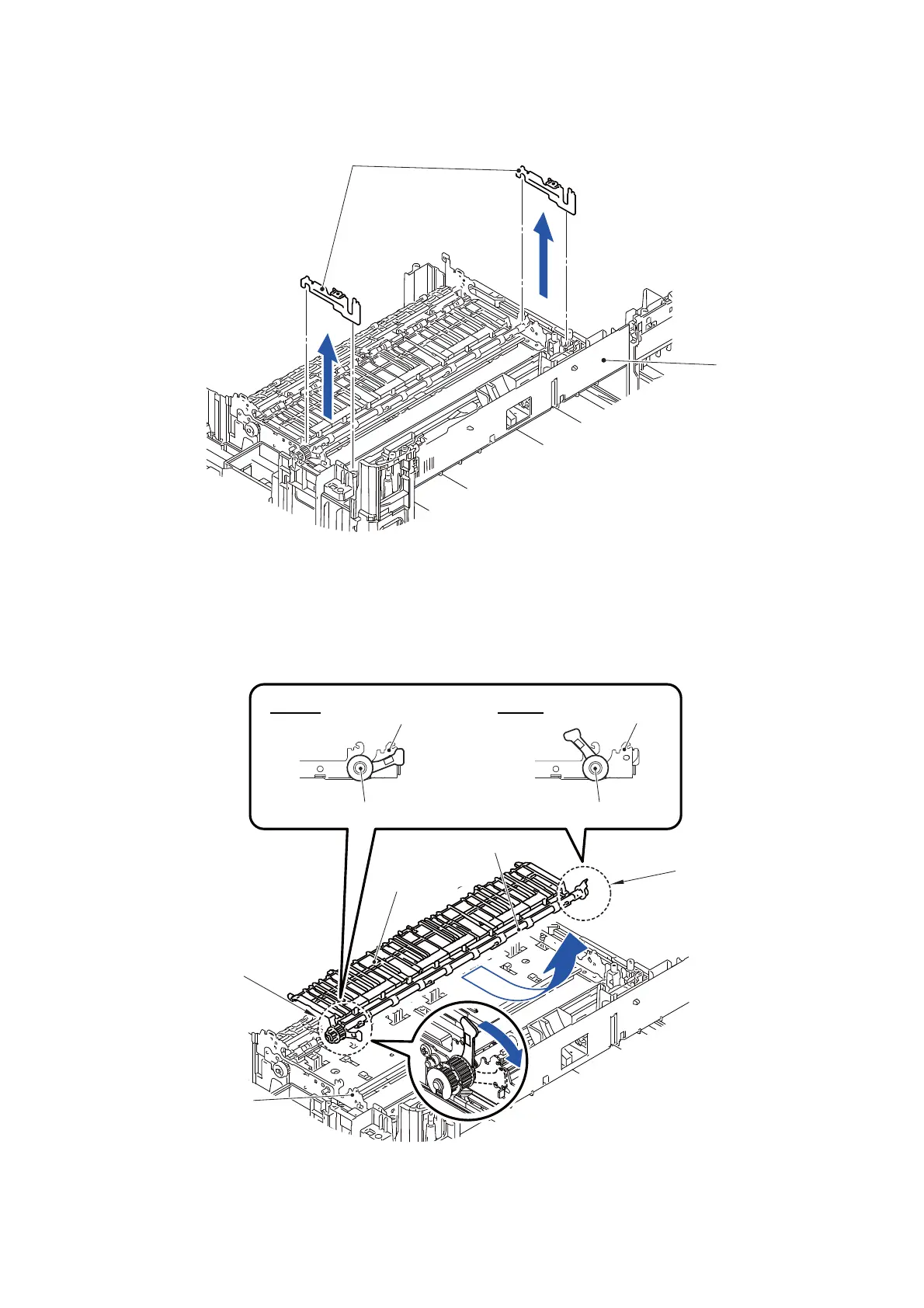

(3) Remove the SB side frame from the Main body.
Fig. 3-154
(4) Hold the section “A” and remove the Paper ejection roller and Platen.
Assembling Note: Mount the Paper ejection roller with its bushing lever tilted forward
as shown below.
Fig. 3-155
SB side frame
Main body
“A”
Platen
Platen
Paper ejection roller
Paper ejection roller
“A”
Paper ejection roller
Platen
<Front><Rear> <Front><Rear>
Frame base ASSY
WrongCorrect
