Brother MFC-J2330DW Service Manual

3-62
Confidential

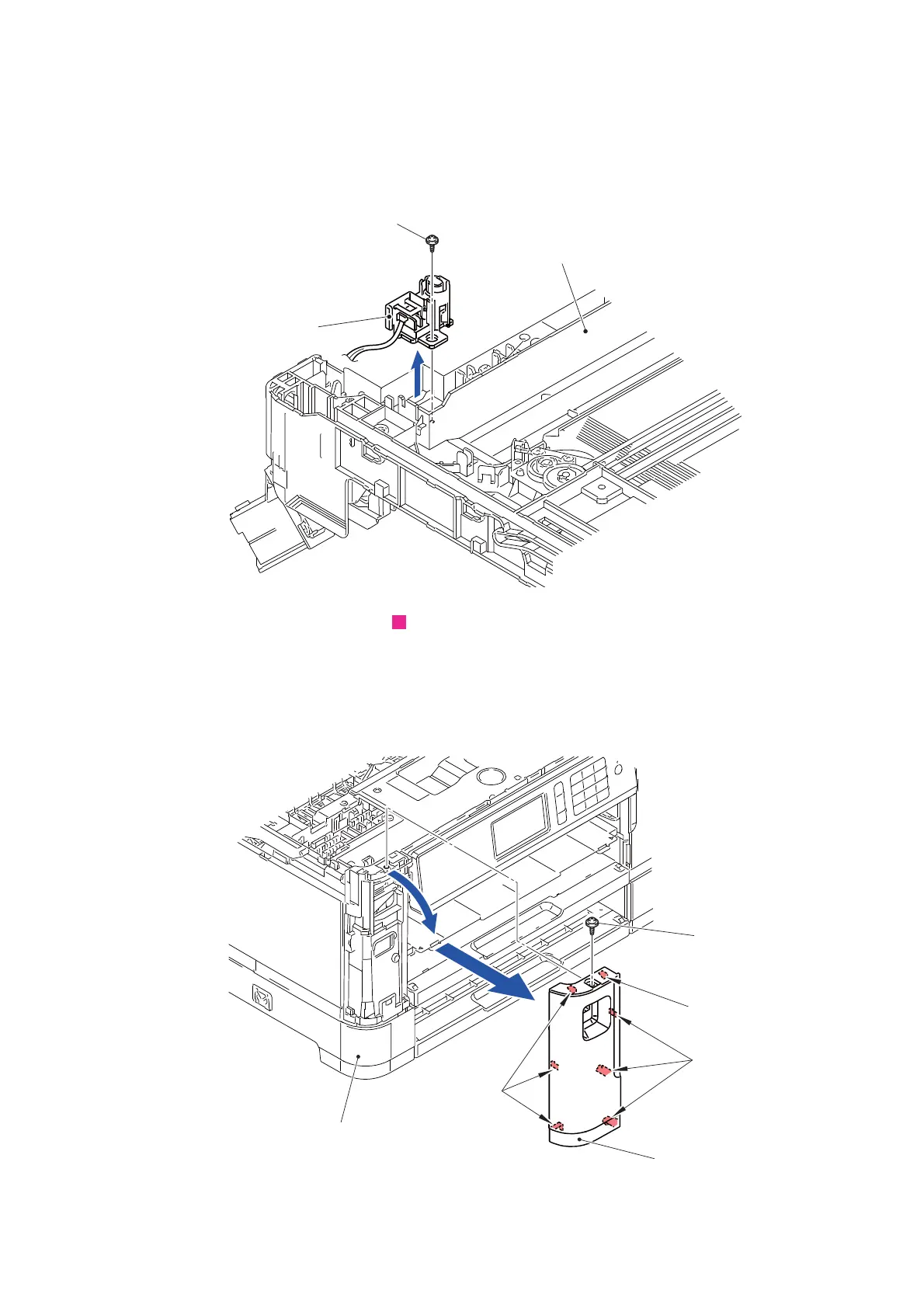

9.20 Document Cover Sensor
(1) Release the wiring of the Document MP sensor harness unit.
(2) Remove the screw (TAPTITE CUP B M3x10) and remove the Document cover sensor
from the Scanner base.
Fig. 3-53
Routing of harnesses: See “ ADF unit/Document scanner unit”.
9.21 Front Cover L
(1) Remove the screw (TAPTITE BIND B M4x12).
(2) Release the seven Hooks and remove the Front cover L from the Lower cover.
Fig. 3-54
TAPTITE CUP B M3x10
Document cover sensor
Scanner base
7
TAPTITE
Lower cover
Front cover L
BIND B
M4X12
Hooks
Hooks
Hook

Brother MFC-J2330DW Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Scan Resolution	1200 x 2400 dpi
Fax Speed	33.6 kbps
Max Print Resolution	4800 x 1200 dpi
Print Speed (Black)	22 ppm
Print Speed (Color)	20 ppm
Duplex Printing	Automatic
Display	2.7" Touchscreen
ADF Capacity	50 sheets
Supported Paper Sizes	A3, A4
Operating System Support	Windows, macOS, Linux
Scanner Type	Flatbed, ADF
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Ink Cartridges	Black, Cyan, Magenta, Yellow
Paper Input Capacity	250 sheets
