Brother MFC-J2330DW Service Manual

3-88
Confidential
9.36 Head/carriage Unit

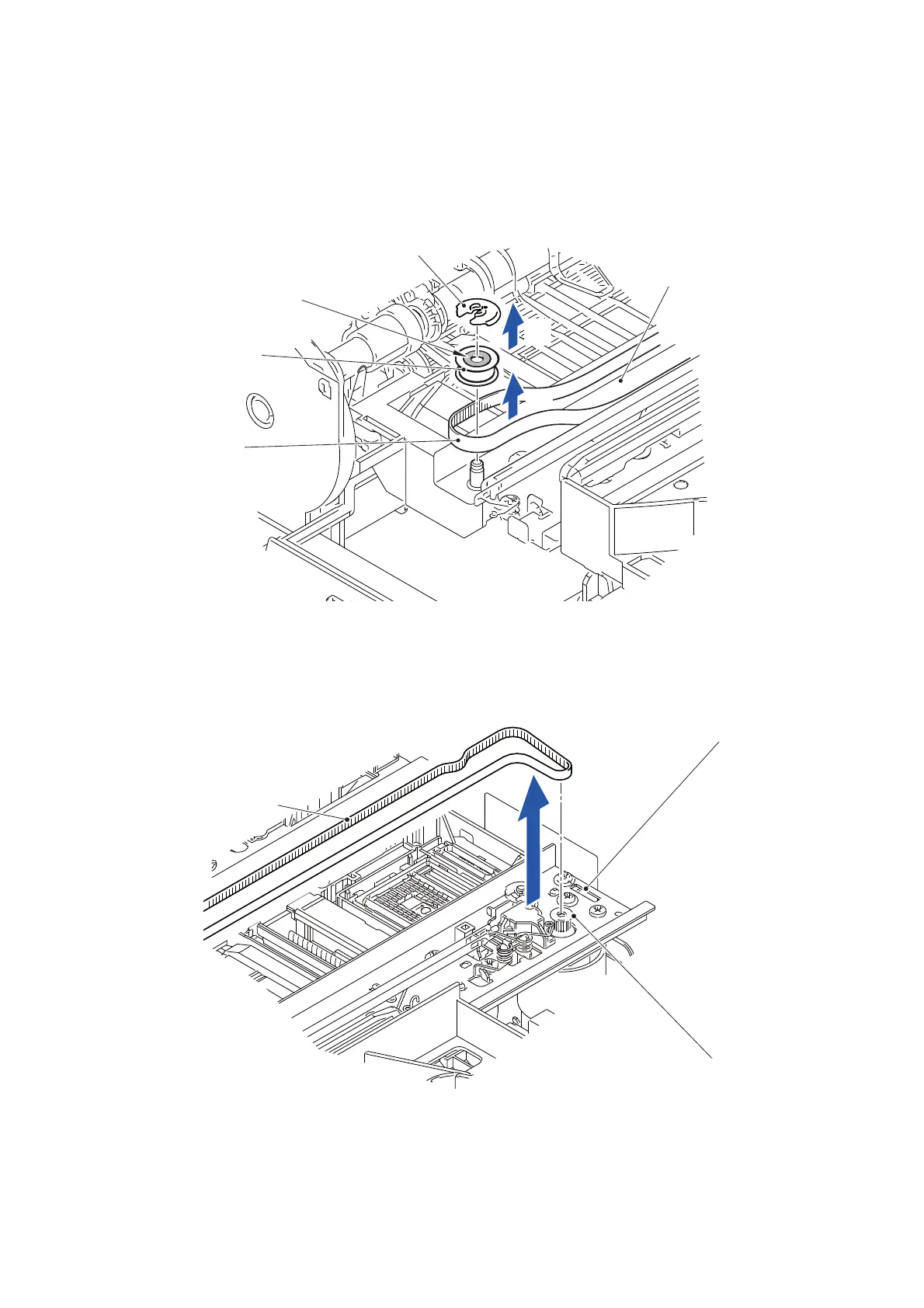

(1) Remove the Plastic retaining ring from the Idle pulley.
(2) Remove the Idle pulley from the CR frame ASSY.
Note: Be careful not to lose the Washer which easily comes off from the
Idle pulley.
Fig. 3-96
(3) Remove the CR timing belt from the CR motor pulley.
Fig. 3-97
Plastic retaining ring
CR timing belt
Idle pulley
CR frame ASSY
Washer
1
2
CR timing belt
CR motor pulley
CR frame ASSY

Brother MFC-J2330DW Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Scan Resolution	1200 x 2400 dpi
Fax Speed	33.6 kbps
Max Print Resolution	4800 x 1200 dpi
Print Speed (Black)	22 ppm
Print Speed (Color)	20 ppm
Duplex Printing	Automatic
Display	2.7" Touchscreen
ADF Capacity	50 sheets
Supported Paper Sizes	A3, A4
Operating System Support	Windows, macOS, Linux
Scanner Type	Flatbed, ADF
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Ink Cartridges	Black, Cyan, Magenta, Yellow
Paper Input Capacity	250 sheets
