Brother MFC-J2330DW Service Manual

3-73
Confidential
9.26 NFC PCB
(1) Release the Lock and remove the NFC flat cable from the LCD PCB.
(2) While holding down the two Hooks in the direction of the arrow 2a, remove the
NFC PCB from the Panel upper cover.

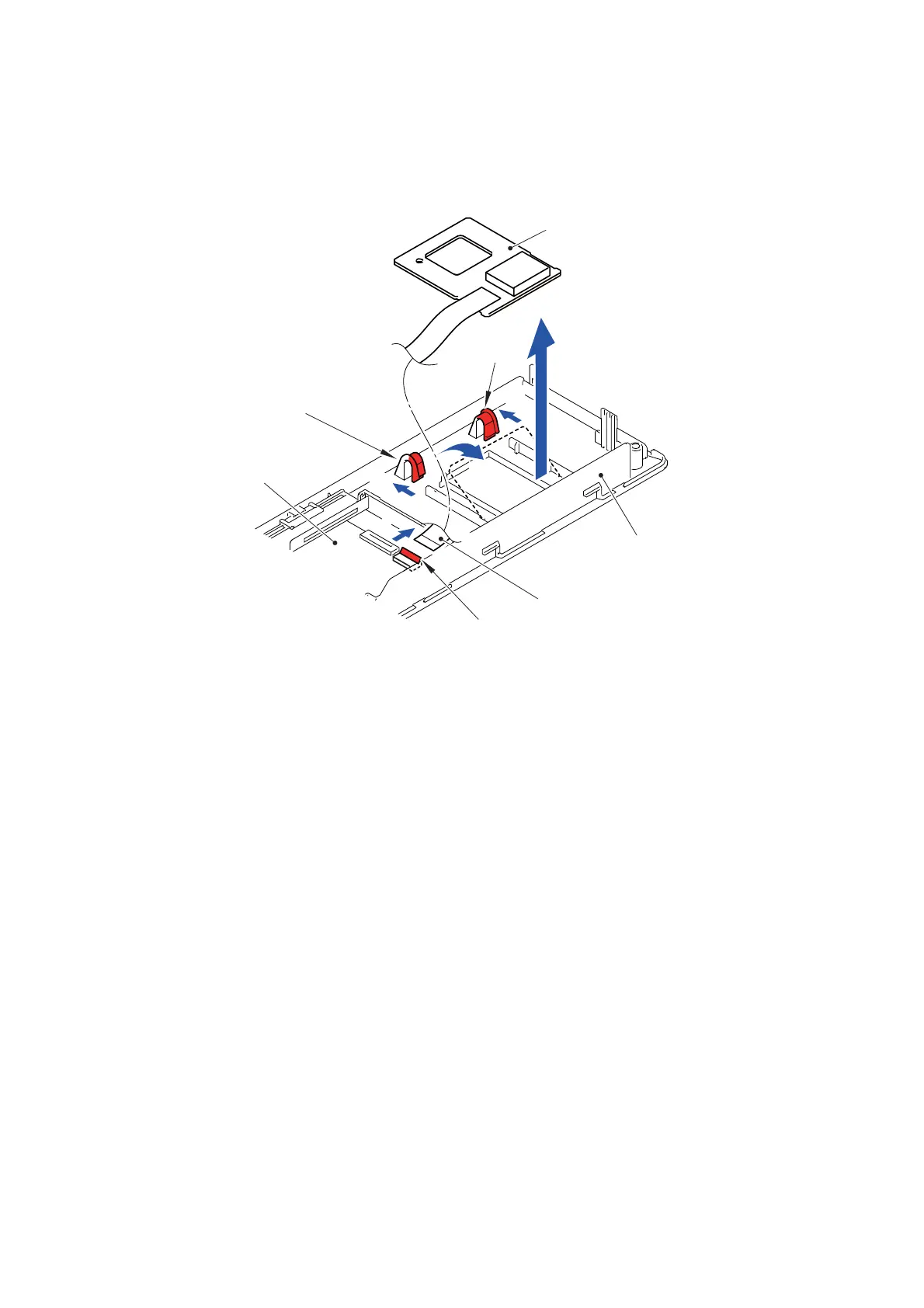

Fig. 3-71
2a
2a
2b
2c
1
LCD PCB
Panel upper cover
NFC flat cable
Hook
Hook
Lock
NFC PCB

Brother MFC-J2330DW Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Scan Resolution	1200 x 2400 dpi
Fax Speed	33.6 kbps
Max Print Resolution	4800 x 1200 dpi
Print Speed (Black)	22 ppm
Print Speed (Color)	20 ppm
Duplex Printing	Automatic
Display	2.7" Touchscreen
ADF Capacity	50 sheets
Supported Paper Sizes	A3, A4
Operating System Support	Windows, macOS, Linux
Scanner Type	Flatbed, ADF
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Ink Cartridges	Black, Cyan, Magenta, Yellow
Paper Input Capacity	250 sheets
