Brother MFC-J2330DW Service Manual

3-81
Confidential
9.34 Carriage PCB ASSY
(1) Remove the three screws (SCREW CUP M3x6) and two screws (TAPTITE CUP B
M3x10) and remove the Main PCB frame from the Main body.

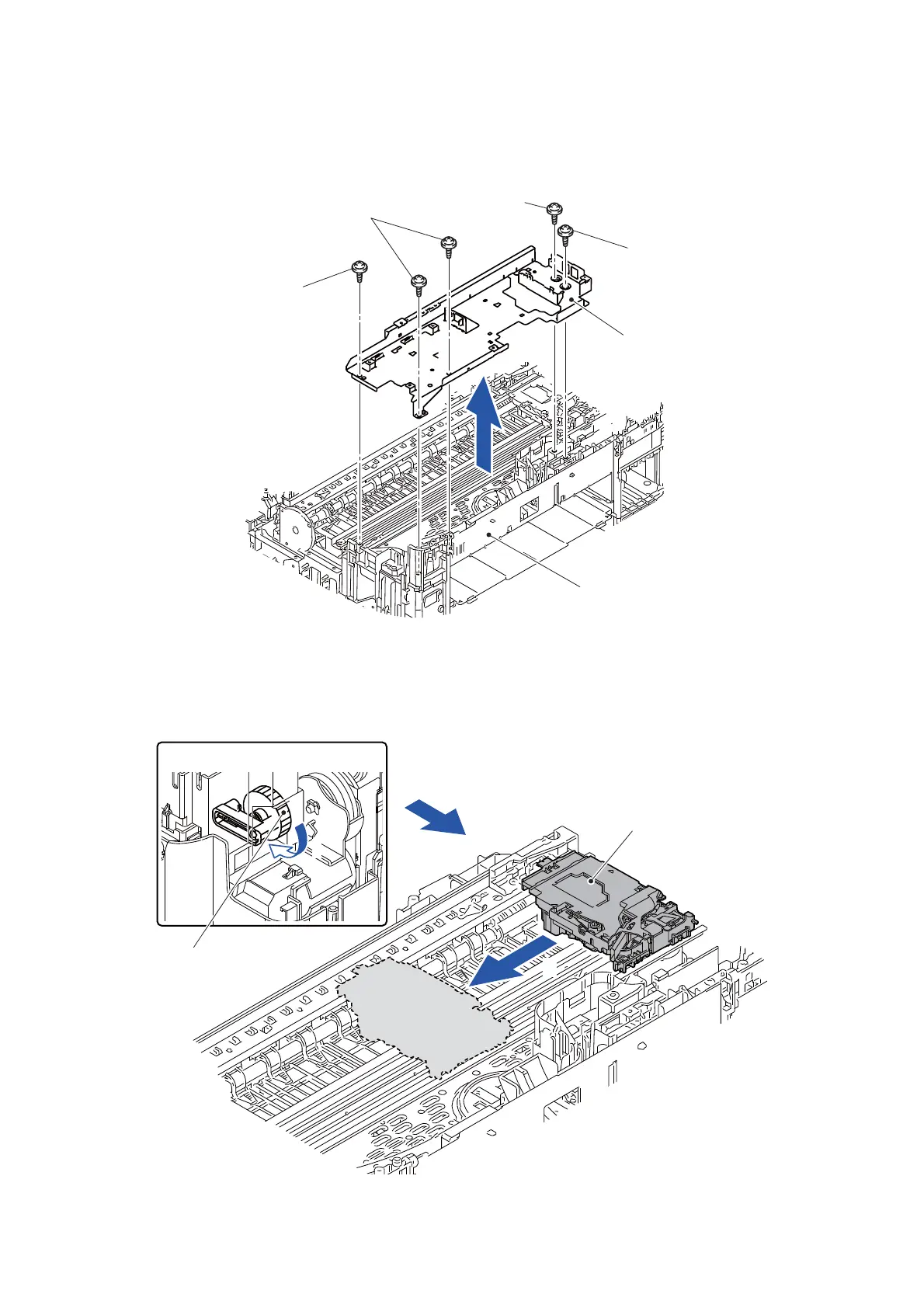

Fig. 3-85
(2) Turn the Cap crank gear in the direction of the arrow until the lock of the Head/
carriage unit is released.
(3) Slide the Head/carriage unit in the direction of the arrow.
Fig. 3-86
Main PCB frame
SCREW CUP M3x6
TAPTITE CUP B M3x10
Main body
SCREW CUP M3x6
TAPTITE CUP
B M3x10
3
<A view>
A view
Head/carriage unit
Cap crank gear
2
