Brother MFC-J2330DW Service Manual

3-95
Confidential
9.41 Ink Absorber Box

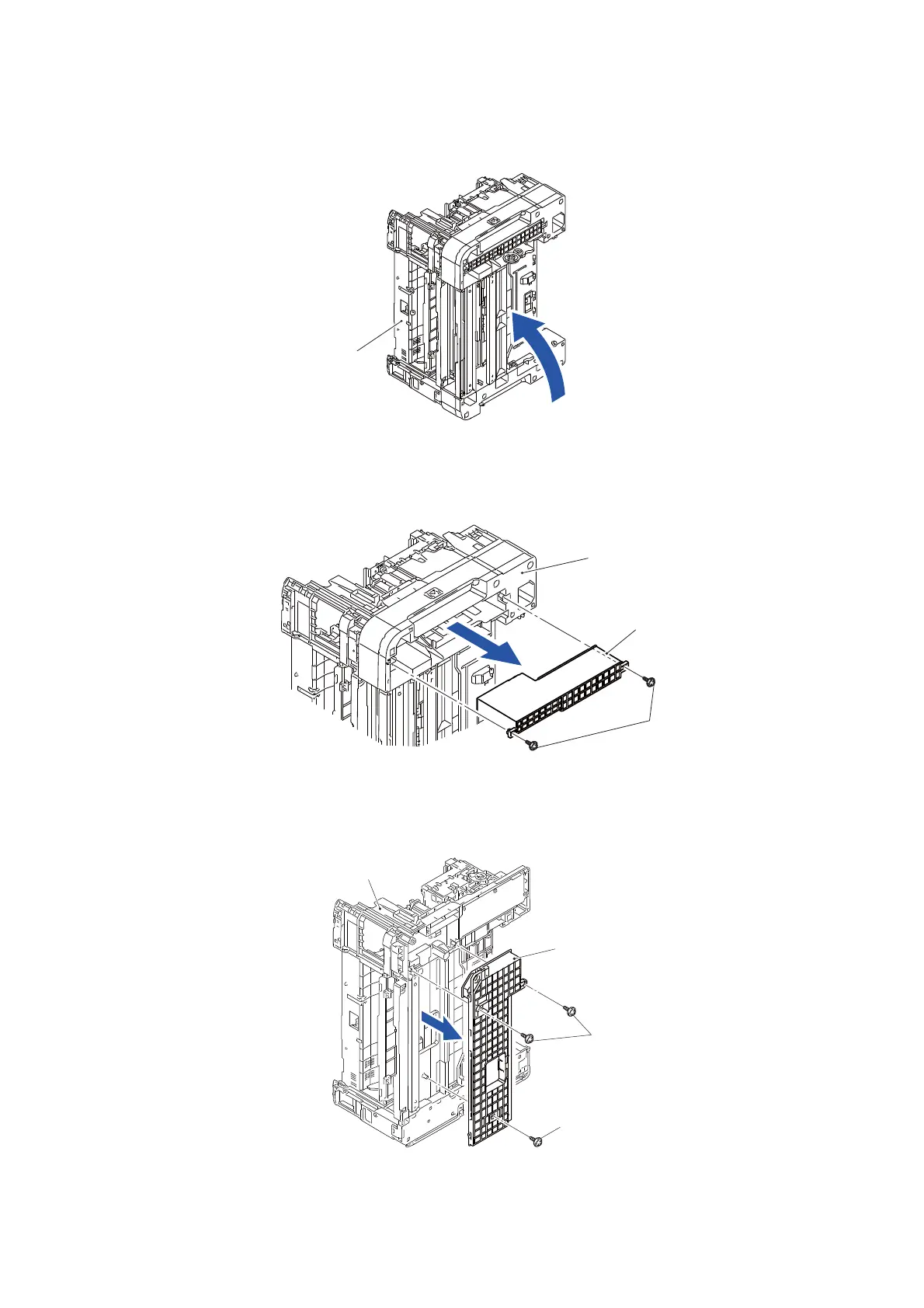

(1) Turn the main body upright as shown in the figure.
Fig. 3-106
(2) [Model with LT]
Remove the two screws (TAPTITE CUP B M3x10) and remove the Ink absorber
box from the Main body.
Fig. 3-107
[Model without LT]
Remove the three screws (TAPTITE CUP B M3x10) and remove the Ink
absorber box from the Main body.
Fig. 3-108
Main body
TAPTITE CUP B
Ink absorber box
Main body
M3x10
TAPTITE CUP B
Ink absorber box
Main body
M3x10
TAPTITE CUP B
M3x10
