Brother MFC-J2330DW Service Manual

3-34
Confidential

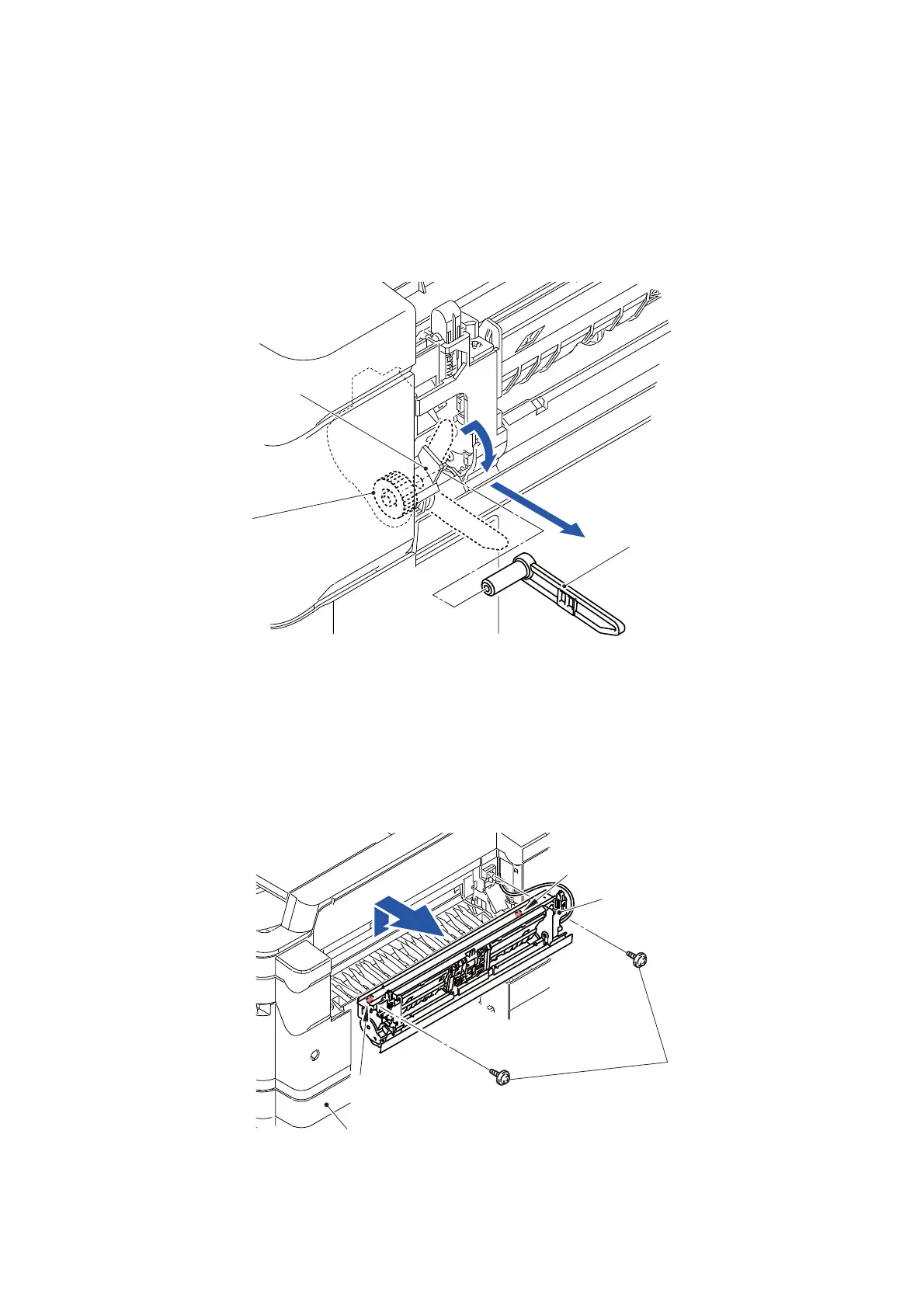

9.4 MP Tray ASSY/MP Paper Detection Sensor PCB
(1) Remove the MP drive shaft from the MP drive gear holder 3.
Note: Be careful not to lose the MP drive gear which easily comes off from the MP
drive gear holder 3.
Assembling Note: When mounting the MP drive shaft, insert it into the MP drive gear
and MP drive gear holder 3.
Fig. 3-5
(2) Remove the two screws (TAPTITE CUP B M4x12).
(3) Release the two Pins and remove the MP tray ASSY from the Main body.
Note: A harness is connected to the MP tray ASSY from the Main body, and therefore
be careful not to pull the MP tray ASSY too much when you remove it.
Fig. 3-6
MP drive shaft
MP drive gear holder 3
MP drive gear
MP tray ASSY
TAPTITE CUP
Main body
B M4x12
Pin
Pin

Brother MFC-J2330DW Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Scan Resolution	1200 x 2400 dpi
Fax Speed	33.6 kbps
Max Print Resolution	4800 x 1200 dpi
Print Speed (Black)	22 ppm
Print Speed (Color)	20 ppm
Duplex Printing	Automatic
Display	2.7" Touchscreen
ADF Capacity	50 sheets
Supported Paper Sizes	A3, A4
Operating System Support	Windows, macOS, Linux
Scanner Type	Flatbed, ADF
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Ink Cartridges	Black, Cyan, Magenta, Yellow
Paper Input Capacity	250 sheets
