9.6 Document Scanner Side Cover L

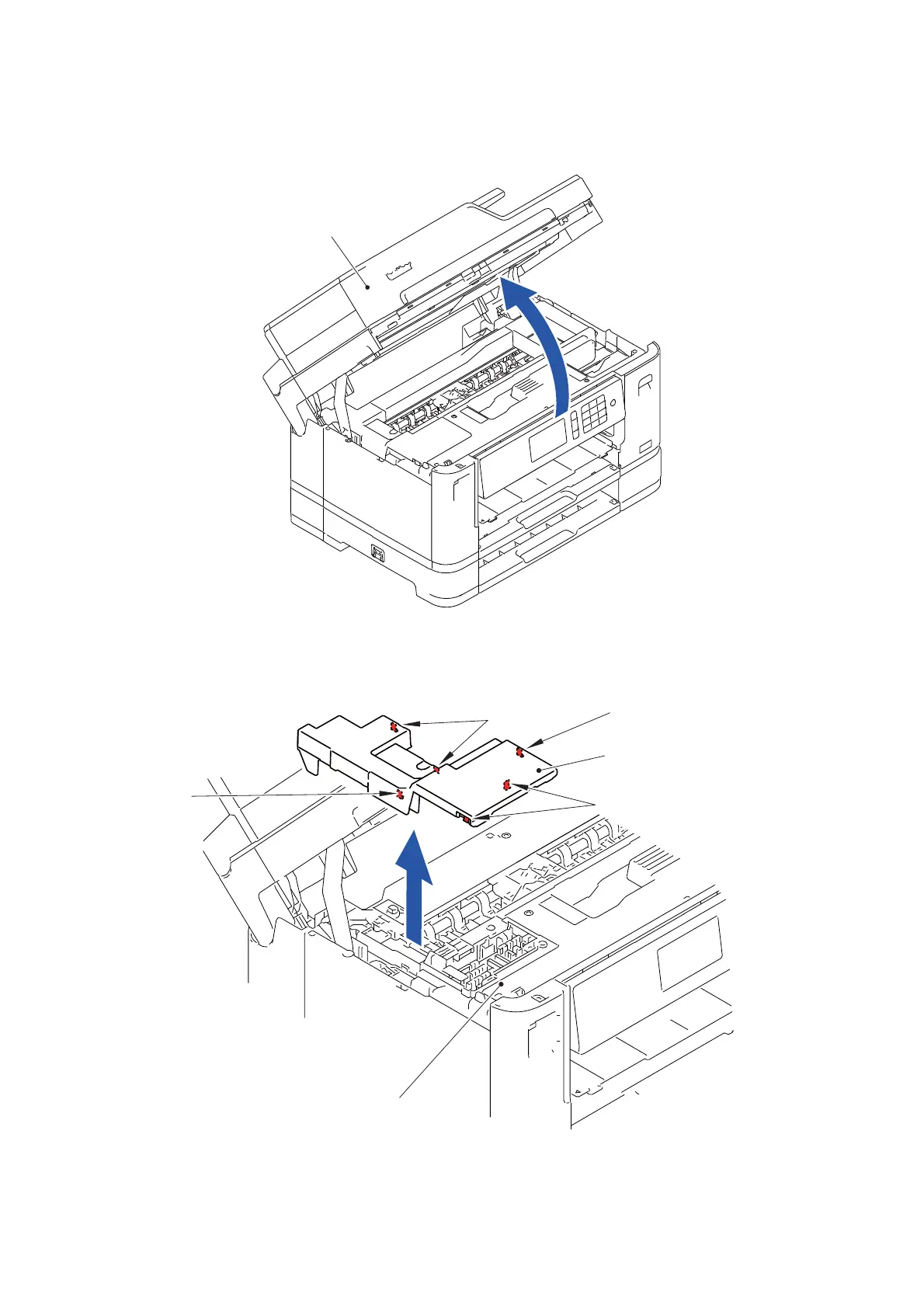

(1) Open the Document scanner unit.
Fig. 3-10
(2) Release the six Hooks and remove the Harness cover from the Upper cover.
Fig. 3-11
Document scanner unit
Upper cover
Hooks
Hook
Hooks
Hook
Harness cover
