Brother MFC-J2330DW Service Manual

3-112
Confidential

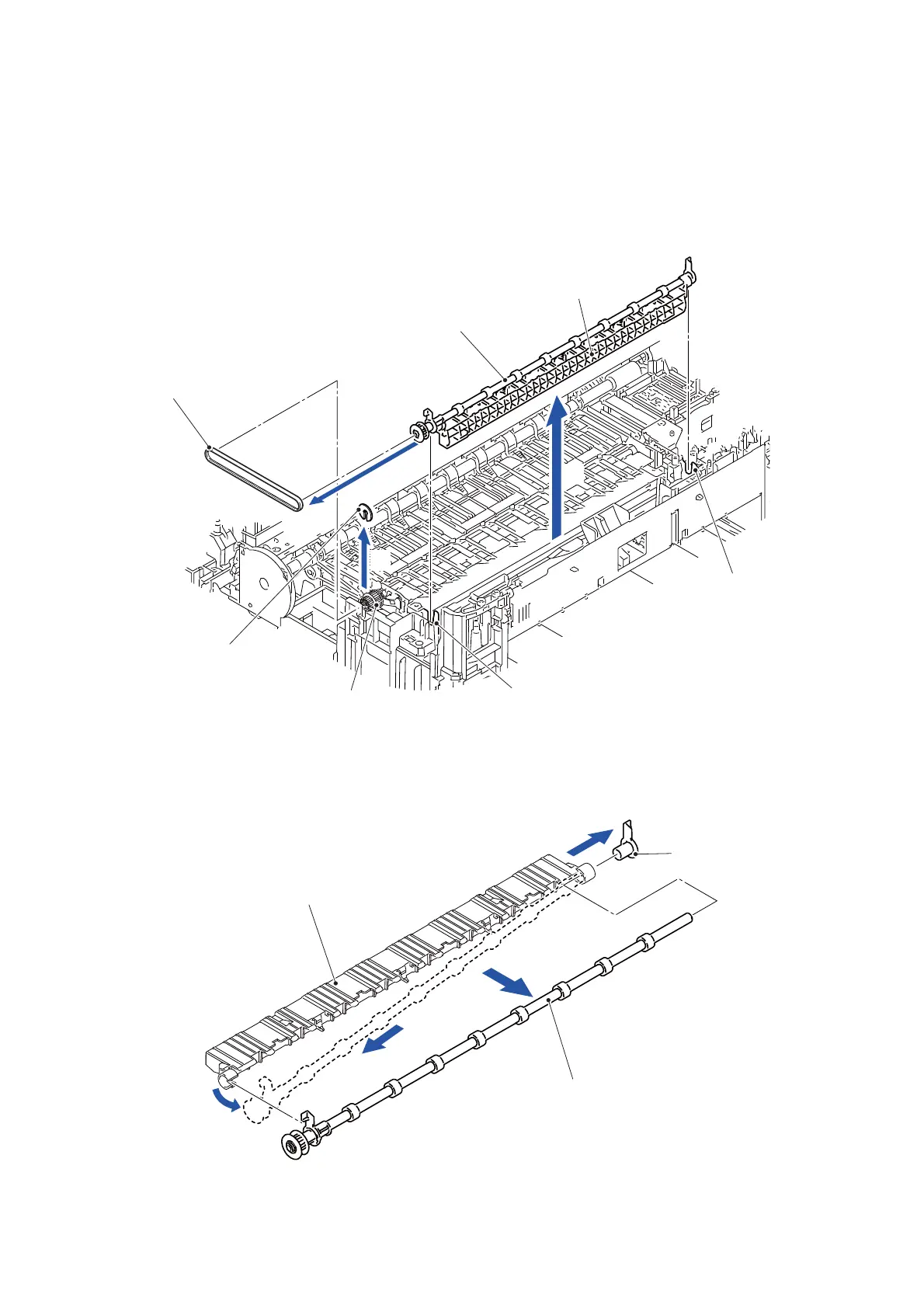

9.49 Switchback Roller
(1) Remove the Belt stopper ring from the Paper ejection roller.
(2) Remove the SB roller belt from the Switchback roller and Paper ejection roller.
(3) Remove the Switchback roller and Switchback outer paper guide from the SB side
frame.
Fig. 3-136
(4) Remove the SB bushing R from the Switchback outer paper guide.
(5) Remove the Switchback roller from the Switchback outer paper guide.
Fig. 3-137
Switchback roller
Switchback outer paper guide
SB side frame
Paper ejection roller
SB roller belt
2
SB side frame
Belt stopper ring
3
1
Switchback outer paper guide
Switchback roller
SB bushing R
4
5c
5a
5b

Brother MFC-J2330DW Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Scan Resolution	1200 x 2400 dpi
Fax Speed	33.6 kbps
Max Print Resolution	4800 x 1200 dpi
Print Speed (Black)	22 ppm
Print Speed (Color)	20 ppm
Duplex Printing	Automatic
Display	2.7" Touchscreen
ADF Capacity	50 sheets
Supported Paper Sizes	A3, A4
Operating System Support	Windows, macOS, Linux
Scanner Type	Flatbed, ADF
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Ink Cartridges	Black, Cyan, Magenta, Yellow
Paper Input Capacity	250 sheets
