Brother MFC-J2330DW Service Manual

3-131
Confidential
9.61 T1 Base Pad / T2 Base Pad

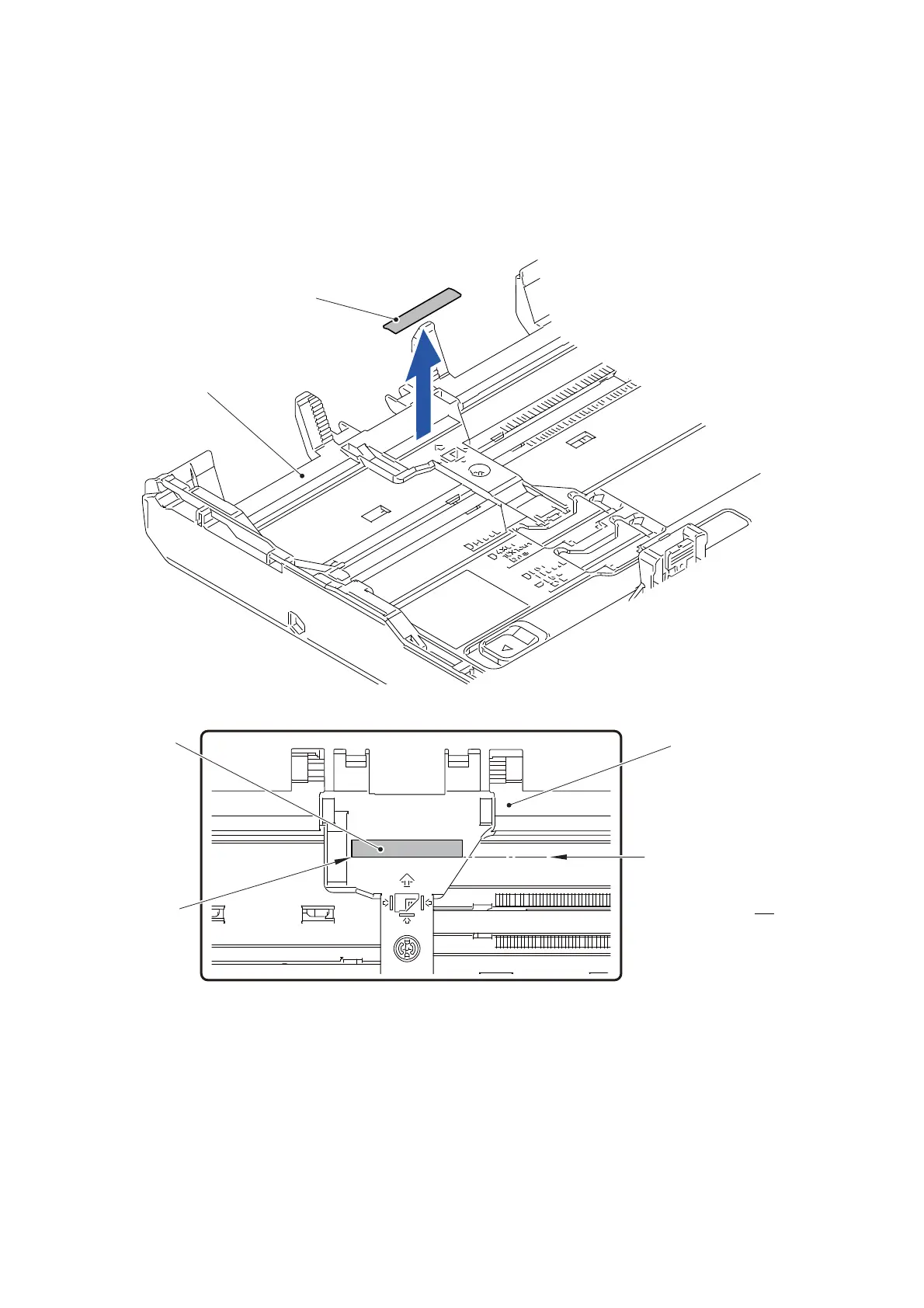

(1) Peel off the T1 base pad from the Paper tray ASSY #1.
Note: Once the T1 base pad is peeled off, it cannot be used again so that the pad
needs to be replaced with a new one.
(2) With the same procedure, peel off the T2 base pad from the Paper tray ASSY #2.
Fig. 3-169
Assembling Note: When attaching a new T1 base pad to the Paper tray ASSY #1,
align the front edge of the pad with that of the Depressed section on
the Paper tray ASSY #1 and center the pad widthways as shown
above.
Paper tray ASSY #1
T1 base pad
T1 base pad
Paper tray ASSY #1
Depressed
section
Align the edge of the
T1 base pad with the front
edge of the depressed
section at the bottom of
the Paper tray (this line
).

Brother MFC-J2330DW Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Scan Resolution	1200 x 2400 dpi
Fax Speed	33.6 kbps
Max Print Resolution	4800 x 1200 dpi
Print Speed (Black)	22 ppm
Print Speed (Color)	20 ppm
Duplex Printing	Automatic
Display	2.7" Touchscreen
ADF Capacity	50 sheets
Supported Paper Sizes	A3, A4
Operating System Support	Windows, macOS, Linux
Scanner Type	Flatbed, ADF
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Ink Cartridges	Black, Cyan, Magenta, Yellow
Paper Input Capacity	250 sheets
