Brother MFC-J2330DW Service Manual

3-43
Confidential
9.8 ADF Unit/Document Scanner Unit
(1) Disconnect all the Harnesses of the ADF unit from the Scanner harness holder.

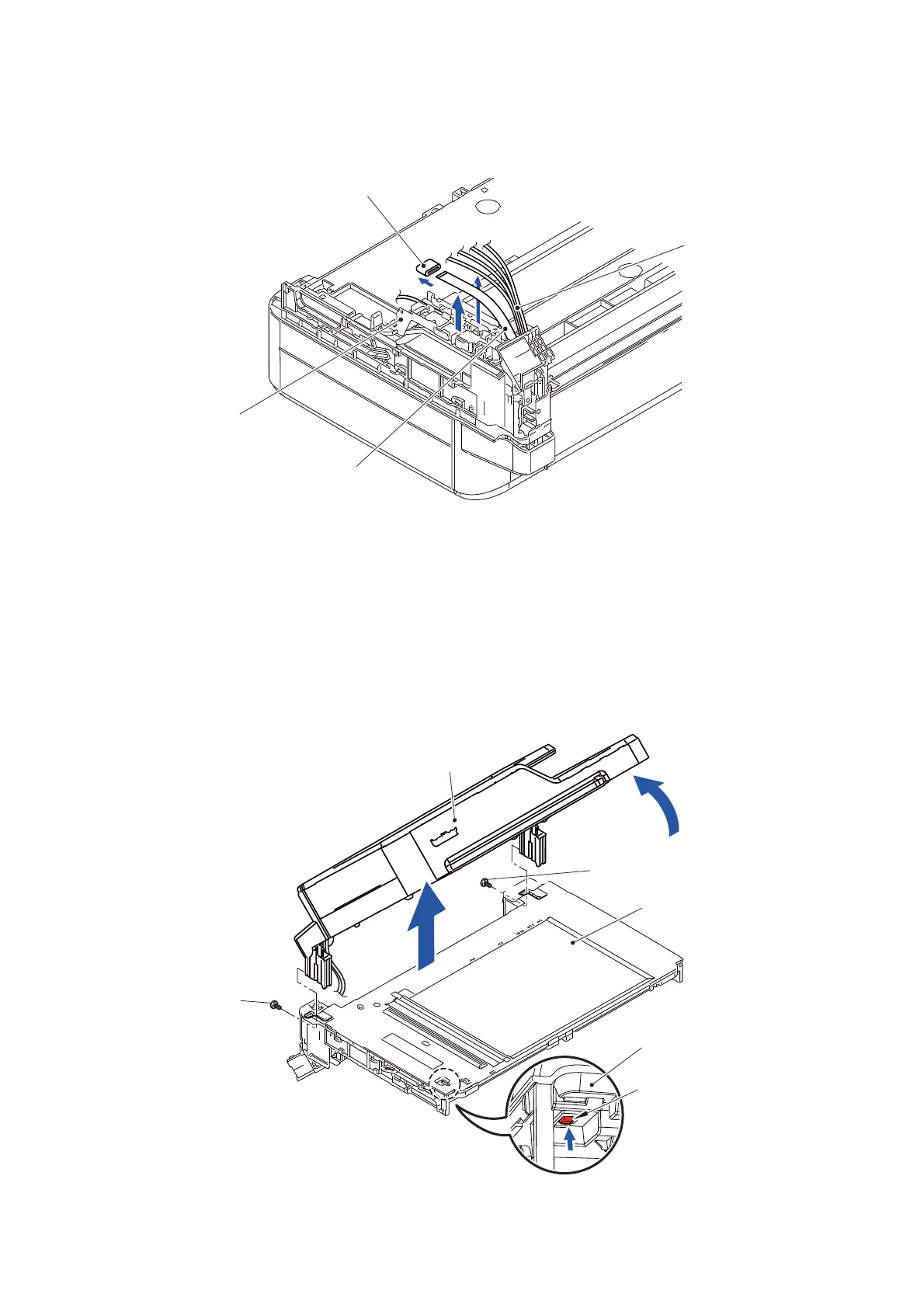

Fig. 3-21
(2) Turn the Document scanner unit right side up.
(3) Remove the two screws (TAPTITE BIND B M4x8) from the Document scanner
unit.
(4) While pushing the Lock lever of the Document scanner unit, open the ADF unit.
Note:
If you lift the ADF unit in the step (5) without fully opened, it is dangerous because
the ADF hinges are unexpectedly and abruptly opened with a strong force.
(5) Remove the ADF unit from the Document scanner unit.
Fig. 3-22
Scanner harness holder
Core
First side CIS flat cable
Harnesses
TAPTITE BIND B M4x8
TAPTITE BIND
Document scanner unit
ADF unit
Document scanner unit
Lock lever
B M4x8
4
5
